Horizontal Split Case Fire Pump 2000GPM With 2100L Fuel Tank

Place of Origin China
Brand Name NM FIRE
Certification UL/FM/ NFPA 20
Model Number SCF250-200-500S
Minimum Order Quantity 1 set
Packaging Details Standard Export Seaworthy Packing
Delivery Time 90 Days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Supply Scope NFPA 20 Fire Pump Package Pumps 3 Sets Of Diesel Pumps, 2 Sets Of Jockey Pumps
Rated Flow 2000 GPM Rated Head 205 PSI
Fuel Tank 2100L
High Light

Split Case Fire Pump 2000GPM

,

2100L Split Case Fire Pump

,

2000GPM Skid Mounted Fire Pump

Leave a Message
Product Description

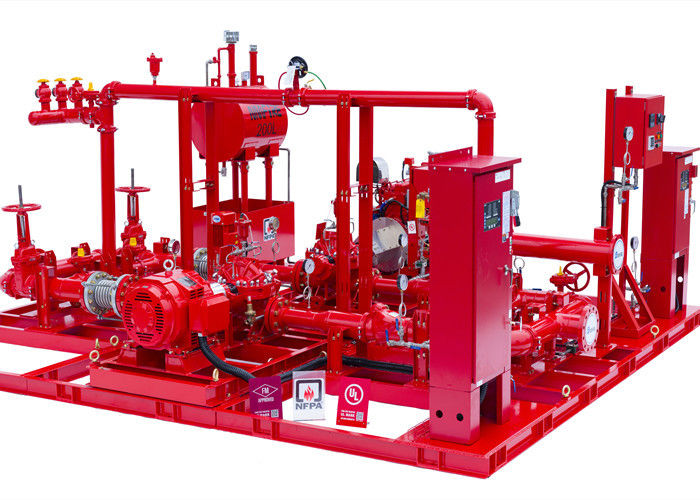

Horizontal Split Case Fire Pump Assembly NM FIRE 2000 GPM SKID MOUNTED FIRE PUMP



Main Configurations:



Pump Assembly SCF250-200-500S    2000GPM@205PSI
Diesel Engine Fire Pump Controller GPD24-220-C05
Jockey Pump CDL32-100 25m3/h/161m 2900rpm/18.5kw 3/50/400
Jockey Pump Controller JP3-400V-25HP-3PH-50HZ
Disel Engine Assembly NM8-128 2100rpm/370kw
Fuel Tank 2100L S.W
Other Necessary Accessories Full Set



Main parts are all UL/FM products. Design and produce according to NFPA 20 STANDARD

Smaller sizes save place

Package tested in factory before shipping

Reduce on site work and material

Connecting the water and power on site, it can be immediately running.



Service and Training



In order to better serve customers with world-class fire product technologies, we have established

a training school in 2016 to promote NFPA20  standards and technology. This training is held

every year and is focused on agents, key customers, design institutes, engineering designers and

fire department management personnel, both at home and abroad. At the same time, NM FIRE also

actively cooperates with UL, FM and domestic and international fire protection associations, spare

no effort to finance these technical seminars, continue to promote UL / FM  products and technologies

at home and abroad, let more users know the importance of choosing safe and teliable fire protection

products stressing that lives and property are better protected.



Our perfect service system and experienced service personnel will provide timely and high quality

service for our customers throughout the world and to ensure that all products can operate safely

and reliably at any time, which is the basic guarantee for realizing the dream of NM FIRE--No More Fire.
