NM Fire 2000GPM NFPA 20 Skid Mounted Fire Pump

  • NM Fire 2000GPM NFPA 20 Skid Mounted Fire Pump
  • NM Fire 2000GPM NFPA 20 Skid Mounted Fire Pump
Place of Origin China
Brand Name CNP NM FIRE
Certification NFPA 20 UL FM CE
Model Number SCF200-150-330
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 75 days
Payment Terms L/C, T/T
Product Details
Certification UL/FM/NFPA20 Flow 2000 GPM
Pump NM FIRE Split Case Casing： Ductile Cast Iron
Head 150 Psi Color Red
High Light

NFPA 20 Skid Mounted Fire Pump

,

NM Fire Skid Mounted Fire Pump

,

2000GPM Fire Pump Assembly
Leave a Message
Product Description

NM Fire 2000 GPM Fire Pump Assembly NFPA 20 Skid Mounted Fire Pump

Main Configurations:



Name Model
OS&Y Gate Valve (Suction Control Valve) 10"
Relief Cone 8”-6”
Relief Valve 2050B-4KG1 Angle 6”
ANSI B16.5 100-300psi
Check Valve
(Pump Discharge)		 10"
OS&Y Gate Valve (Discharge Control Valve) 10"
Automatic Air Release 3410AR-116 1/2"
Butterfly Valve
(Test the pipe)		 8"
Butterfly Valve
(Test Header)		 8"
Flow Meter 8"-2000-G
Test Header DN65
Vacuum Manometer Φ100 -0.1~1.5bar
Pressure Gauge Φ100 0~16bar
Automatic Air Release 3410AR-116 1/2"
Pump assembly SCF200-150-330 2000usgpm/150psi
Diesel engine
assembly		 NM6-110D 2900rpm/200kw
Fuel Tank 1200L D.W
jockey Pump CDL4-10 20usgpm@160psi 2pole/4kw 220V
Circulation safety valve Cla-Val 55L-60 100-300PSI 3/4"
Vacuum Manometer Φ100 -0.1~1.5bar
Pressure Gauge Φ100 0~16bar
Check Valve
(Jockey Pump Discharge)		 H41H DN32
Isolation Valve (JockeyPump Discharge&Suction) Z41H DN32
Check Valve
(Pressure Sensing Line )		 H12 1/2” PN16
Ball valve
( Pressure Sensing Line )		 1/2” PN16
Pressure Gauge
( Pressure Sensing Line )		 Φ100 0~16bar
Pressure Maintenance Pump Controller
(Jockey Pump)		 JP3-220V-5.5HP-3PH-60HZ
Fire Pump Controller GPD24-220

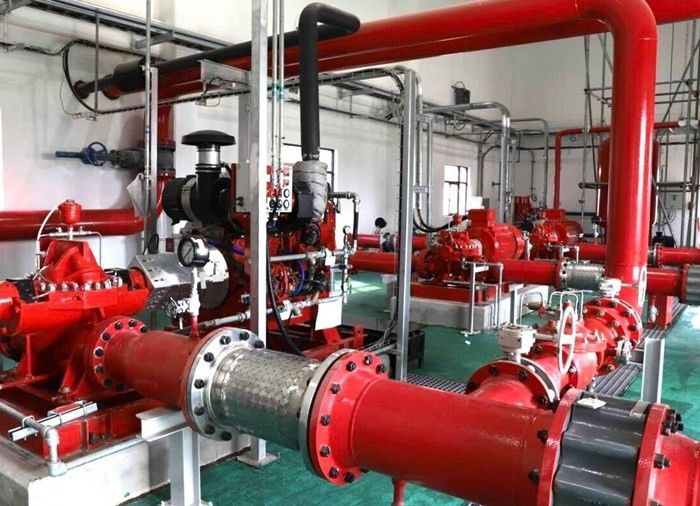

NM Fire 2000GPM NFPA 20 Skid Mounted Fire Pump 0




Performance Ranges:



UL:


  Q: 100-750GPM  H:100-145PSI


FM:


  Q: 100-750GPM  H:100-145PSI


CCCF:


  Q:5-150L/S  H:0.40-1.6Mpa


NFPA20:


  Q: 100-2250GPM  H:60-230PSI




 Advantage:

First-Class testing and inspection equipment.
UL certification represents the world's highest technical standards of fire certification,but also means that certified fire products must withstand the most extreme,harsh test process,the purpose of certification designed to verify whether the product meets the performance,safety and quality requirements,so as to achieve the purpose of property protection.
NM fire obtained fire diesel engine UL1247 and fire pump UL448 witnessed laboratory accreditation,fully proved that the company in terms of hardware and software strength,are to meet the strict requirements of UL certification.

Service:

1. Reply within 24 hours.
2. High-quality products and the most reasonable price
3. Data and chemical technology support.
4. Professional team service
5. Customiszed production for different package
6. No delay on shipment

NM Fire 2000GPM NFPA 20 Skid Mounted Fire Pump 1
