Split Case Skid Mounted Fire Pump

Product Details

Place of Origin: China

Brand Name: NM FIRE

Certification: UL FM

Model Number: SCF150-125-250

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD50000~80000

Packaging Details: Export Seaworthy Packing (Shipment by 40't container)

Delivery Time: 90 days

Get Best Price
Highlight:

Split Case Skid Mounted Fire Pump

,

Horizontal Skid Mounted Fire Pump

,

1000 GPM Horizontal Split Case Pump

Rated Flow:
1000 GPM
Rated Head:
135 PSI
Driven:
Diesel Engine Driven
Fuel Tank:
800L
Supply Scope:
Fire Pump Package
Rated Flow:
1000 GPM
Rated Head:
135 PSI
Driven:
Diesel Engine Driven
Fuel Tank:
800L
Supply Scope:
Fire Pump Package
Split Case Skid Mounted Fire Pump

UL / FM SKID MOUNTED FIRE PUMP HORIZONTAL SPLIT CASE FIRE PUMP ASSEMBLY



Main Pump Parameters:



Rated Flow 1000 GPM
Rated Head 135psi
Pump : NM Fire (UL/FM ) SCF150-125-250
Casing Ductile Cast Iron
Impeller SS304
Shaft AISI 4340
Shaft sleeve SS304
Seal Gland Packing
Wear Ring Bronze
Bearing SKF
Diesel Engine (UL) NM4-108B
Control Panel: Eaton (UL/FM) FD120-L1





ADVANTAGES:




1.State of the art engineering design;
2.Simplifies piping design;
3.Single source unit responsibility;
4.A complete package that meet NFPA20 requirements;
5.Packaged systems are performance and hydrostatically factory tested at an ISO9001

   certified manufacturing facility prior to shipment;

6.No material lost due to on-site material handling;
7.Improves the speed of construction and reduces on-site installation time;
8.Only external suction, discharge and power connection are required on-site.

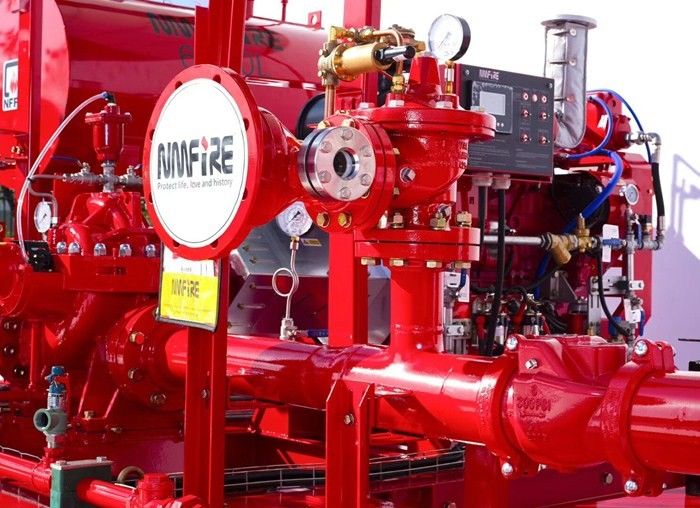

Split Case Skid Mounted Fire Pump 0



APPLICATION:



With the progress of city and industry development, the application of fire fighting can be divided into

commercial fire fighting and industrial fire fighting.Commercial fire fighting includes hotels, hospitals,

supermarkets, metro stations, airports, office buildings, schools, warehouse etc.,Industry fire fighting

includes petrochemical power plants, industrial enterprises, electronic industry, sea port and dock,

offshore platform, etc..
