UL/FM Horizontal Split Case Fire Pump Assembly 1 Motor 1 Diesel 1 Jockey

Place of Origin China
Brand Name CNP NM FIRE
Certification UL/FM NFPA20
Model Number SCF125-100-300
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 90 days
Payment Terms L/C, T/T
Product Details
Certification UL/FM/NFPA20 Number Of Main Pumps 1 Operating, 1 Backup
Capacity 750gpm Delivery Head 142psi
Fuel Tank 600L Pump Medium Water
High Light

fire fighting pump system

,

diesel engine pump set

Leave a Message
Product Description

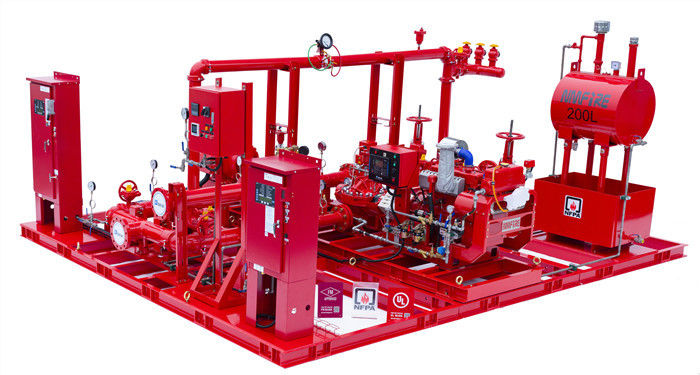

UL/FM Horizontal Split Case Fire Pump Assembly (1 motor 1 diesel 1 Jockey )



NM Fire packages are designed to provide trouble free operation, meet or exceed design conditions, and

take up as little floor space as possible while still allowing easy access to valves, controllers, meters, etc.

We use only time-tested quality components, all of which carry UL/FM listings. Fittings, piping sections,

and frame members are powder coated to ensure long service life.
Our NFPA-20 compliant packaged fire pump systems take the hassle out of your installation. There is no

need to track down, order, store, or transport hundreds of individual components. All an installing contractor

has to do is connect the suction and discharge and provide power to the controllers.



Pump:



Pump assembly SCF125-100-300
750usgpm@142psi 2980rpm
2 set UL/FM
Vacuum Manometer Φ100 -0.1~1.5bar 2 pc
Pressure Gauge Φ100 0~25bar 2 pc
Automatic Air Release 3410AR-116 1/2" 2 pc FM





Engine:



Diesel engine assembly NM6-102 2950rpm/94kw 1 set UL
The diesel auxiliary control cabinet
Battery Box   1 pc
Battery   4 pc
Silencer   1 pc
Coupling   1 pc
Coupling Shield   1 set
Fly wheel   1 pc
Sleeve   1 pc
Fuel Tank 600L 1 set NFPA20
Oil Box   1 pc





Motor:



Motor assembly TDC365TS100U2B 1 pc UL
Coupling   1 pc
Coupling Shield   1 set



UL/FM Horizontal Split Case Fire Pump Assembly 1 Motor 1 Diesel 1 Jockey 0



Advantages:

  • After simply connecting the water and power supplies on site, the unit is immediately operational.
  • 3D design built in a clean, controlled factory environment to a high NFPA20 engineering standard.
  • Fully tested at an ISO9001 manufacturing facility prior to shipment.
  • Once on site the containerised pump house can simply be lowered onto a prepared concrete base


Service:



1. Reply within 24 hours.
2. High-quality products and the most reasonable price
3. Data and chemical technology support.
4. Professional team service
5. Customiszed production for different package
6. No delay on shipment





UL/FM Horizontal Split Case Fire Pump Assembly 1 Motor 1 Diesel 1 Jockey 1

Application



All petroleum, petrochemical ,chemical, military and naval institutes, oil fields of Petro China, Sinopec, CNOOC,

pipelines Bureaus, oil repositories, oil terminals, construction companies, oil refineries, offshore platforms, etc.

Fire-fighting Engineering Companies,airports,highway tunnels,hotels,hospitals,supermarkets,office buildings,

national grain storages, thermal power plants, shipyards,paper mills, subway stations,railway stations, etc.

Steel plants, residential regions,industrial and mining enterprises,house building materials supermarkets,etc.
