400GPM NFPA20 Fire Fighting Pump System 277 Feet For Residential / Industrial

Place of Origin China
Brand Name CNP NM FIRE
Certification NFPA20/UL/FM/EN12845/CCCF
Model Number ESF65/26 (2.5"x2")
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 30-45 Working Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification UL/FM/NFPA20 Flow 400GPM
Pump CNP NM FIRE Casing: Ductile Cast Iron
Head 120PSI Color Red
Leave a Message
Product Description

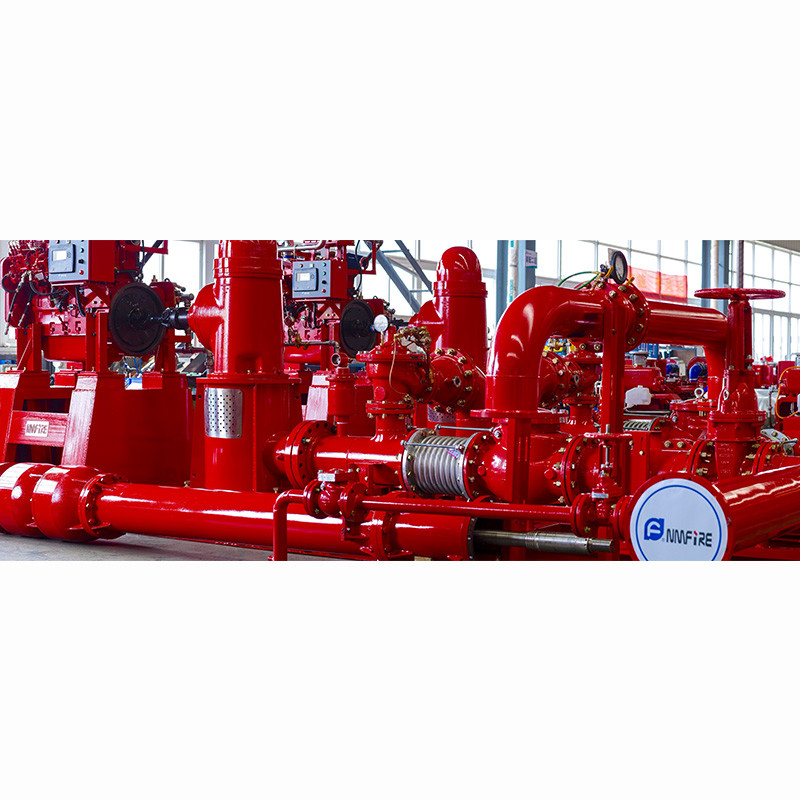

400GPM @ 120PSI Skid Mounted Fire Pump With Centrifugal End Suction Fire Pump Sets UL / NFPA20 ​




NM designs and manufactures custom and pre-engineered skid package fire pump systems. These systems are factory assembled and tested, leaving only pipe connections, power connections and structural base grouting to be completed on site. All fire pump packages built to NFPA 20 standards with UL listed / FM approved components.



This all-in-one solution objetive is to eliminate the complexity and problems of on site assembly. We ensure all package skids meet inspection requirements of local National Building Code, NFPA 20 Standards and Insurance companies.


Fire pump packages also reduce the cost of assembly, quick installation means less work and time spent on installation, and your fire pump system can be fully operational very quickly. This fire protection pumping solution that NM provides is a superior quality fire system with reliability and inbuilt safety.





Applications:


The end suction centrifugal pump is useful in various residential, industrial and commercial applications. Due to the fact that the pumps are highly common and readily available from many suppliers, their prices are usually very attractive.


Standard end suction centrifugal water pumps are normally close coupled and manufactured from standard iron or a variety of plastics. Pumps that are meant for more heavy duty commercial and industrial applications are often mounted on a bedplate with a coupling that separates the motor and the pump. These are usually available in stainless steel and more exotic alloys or plastics for corrosion resistance, while others are manufactured from hardened iron for mining, slurry and dredging applications.


The end suction centrifugal pump can be fitted with an open impeller for food and chemical processing applications that contain solids. Alternatively, it can have a closed impeller for clean water or oil services. The pumps can be designed to specific standards for chemical pump applications or hydrocarbon processing. The pump’s shaft can be sealed from the immediate environment using conventional packing and mechanical seals or it may be a canned motor or magnetic drive type.



Parameters:



HEAD PUMP MODEL SPEED MAX SHAFT POWER MOTOR DRIVER DIESEL ENGINE DRIVER
PSI FEET METER RPM HP KW

MODEL

(TECHTOP&UL)

HP KW

MODEL

(NM&UL)

HP KW MODEL(DE MAAS&FM) HP KW
120* 277* 84* ESF65/26
(2.5"x2")
2980
(50Hz)
56 41.7 T225M-2
(IEC/TEFC)
60 45 NM4-105 86 64 IF05AH-F 81 60



Pump types:
End suction pump, Jockey pump, In-line pump

Configuration types:
1. Electric motor driven fire pump Sets
2. Diesel engine driven fire pump Sets
3. jockey pump Sets


Performance Ranges:



UL:


 Q: 100-750GPM  H:100-145PSI


FM:


 Q: 100-750GPM  H:100-145PSI


CCCF:


 Q:5-150L/S  H:0.40-1.6Mpa


NFPA20:


 Q: 100-2250GPM  H:60-230PSI




 Advantage:

First-Class testing and inspection equipment.
UL certification represents the world's highest technical standards of fire certification,but also means that certified fire products must withstand the most extreme,harsh test process,the purpose of certification designed to verify whether the product meets the performance,safety and quality requirements,so as to achieve the purpose of property protection.
NM fire obtained fire diesel engine UL1247 and fire pump UL448 witnessed laboratory accreditation,fully proved that the company in terms of hardware and software strength,are to meet the strict requirements of UL certification.

We are the first member of NFPA among Chinese pump manufacturers. The production of our fire pump groups is strictly in accordance with NFPA20.
We are the first manufacturer in the world who have both UL/FM certification for fire pump and the fire-fighting diesel engine, also the only UL Witness laboratory in Asia for fire-fighting pump and fire-fighting diesel engine.
We have applied dozens of patents.
We have young team, top experts.
