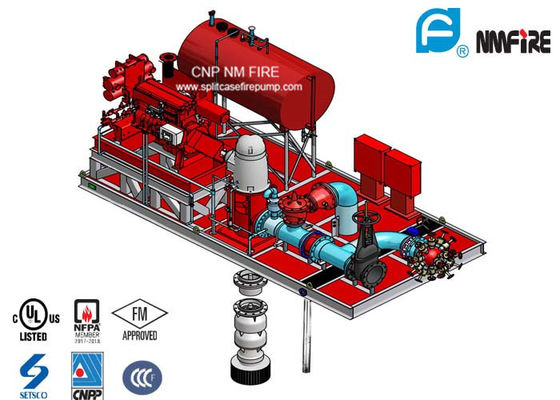

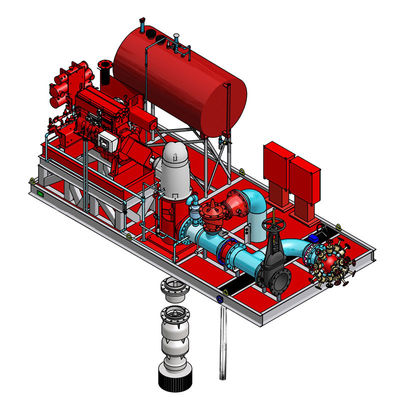

Red UL Listed Diesel Fire Pump Package With Vertical Turbine Fire Pump Sets

UL Listed / NFPA20 Accordance Skid Mounted Fire Pump With Vertical Turbine Fire Pump Sets

FM Approved fire pump packages are produced using components that have been subjected to rigorous tests to ensure that they will perform when called upon during each certification program. Pump tests map the pump flow versus discharge head characteristics across the entire range of flows; suction lift tests evaluate the pump’s ability to perform in less than perfect water supply conditions; and hydrostatic pressure testing performed to assure the pump casings can withstand fire sprinkler system pressures.
Diesel engine/electric motor driver tests evaluate the performance of the engine/motor under extremely harsh test conditions, and also the engine/motor ability to communicate with the fire pump controller. This approach allows for reliable service from this highly important piece of machinery.

The third main component of the fire pump package is the fire pump controller. FM Approvals’ requirements for these products have been developed to evaluate these complex devices under severe conditions in order to provide the fire pump package with a reliable device standing ready to act if the need arises. FM Approvals’ requirements have also addressed the mix-and-match capability between diesel engines and controllers of years ago with a standardized terminal strip so that communication across devices is much easier to establish and maintain.

FM Approvals will audit the facilities of each manufacturer of the entire fire pump system, ensuring adherence to our stringent standards and production to the highest level of quality and reliability on an ongoing basis. FM Approvals also monitors any performance issues reported from the field and assists the user in obtaining prompt, corrective actions.


Advantages:

Easy to install fire pump set at site.
Easy to commission.
Reduced installation time.
Pre-wired electrical connections.
Less space requirement.
All (pumps, drivers & controllers) on single base

Security:

Single manufacturing source.
Single unit responsibility
100% system operational integrity.
100% secure system.
Convenience in procuring spare parts .
All major components listed products.
Complying with NFPA 20

Testing Facility:

Individual components test facility.
Pump performance test.
Pump hydrostatic test.
Complete package test with automatic operation.
String test.
Driver load test.
Simulating field test.

Pump types:

Vertical Turbine Fire Pump, Jockey pump, In-line pump

Standard:

• UL Listed
• FM Approval
• NFPA20 Package

Performance Ranges:



  Application:


ndustrial fields: All petroleum, petrochemical, chemical, oil fields, pipelines bureaus, oil repositories, oil terminals, oil refineries, offshore platforms, etc.; National grain storages, thermal power plants, steel plants, shipyards, paper mills, etc.;

Commercial Field: five-star hotels, hospitals, schools, supermarkets, office buildings, large-scale commercial complex, highway tunnels, subway stations, railway stations, airports; Fire-fighting Engineering Companies;


Service:
