UL FM Approved Skid Mounted Fire Pump 3500GPM@140PSI For Oil Repositories

Place of Origin China
Brand Name CNP NM FIRE
Certification UL/FM
Model Number package
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 30-45 Working Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification UL/FM/NFPA 20 Pump SCF300-250-490 (12x10")
Casing: Ductile Cast Iron Flow 3500GPM
Head 140PSI Color Red
Leave a Message
Product Description

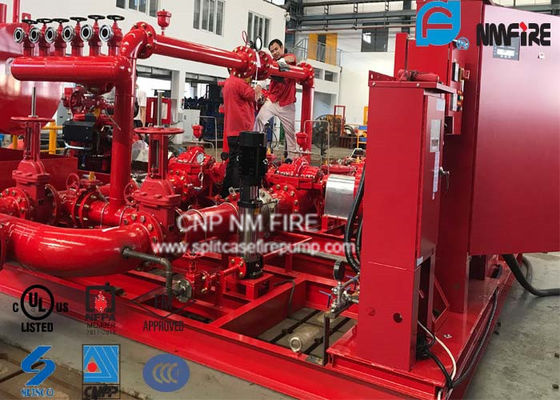

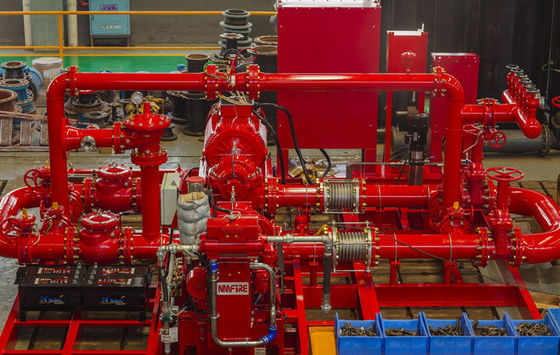

3500GPM @ 140PSI Skid Mounted Fire Pump With Split Case Fire Pump Sets UL/FM Listed NFPA20 Accordance
NM Fire has been building premium quality fire pump systems for several years. Specializing in both residential and commercial packaged fire pump systems, we design & custom build packaged units to fit any application. Our packaged systems will save you time, money, and headaches. We pull it all together, you drop it in place. Whether you need a residential fire pump and tank for your home or a 5000 GPM diesel driven fire system for a multi-warehouse complex - NM has you covered. Standard and custom built reliable firefighting pump packages designed and manufactured to meet latest NFPA 20, UL standards and general industry fire service standards. These packages use either horizontal split case pumps or Vertical turbine pumps as main fire water pump, based on location of supply tank and suitable jockey pumps


Security:

  • Single manufacturing source.
  • Single unit responsibility
  • 100% system operational integrity.
  • 100% secure system.
  • Convenience in procuring spare parts .
  • All major components listed products.
  • Complying with NFPA 20





 Parameters:



HEADPUMP MODELSPEEDMAX SHAFT POWERMOTOR DRIVERDIESEL ENGINE DRIVER
PSIFEETMETERRPMHPKW

MODEL
(TECHTOP&UL)

HPKW

MODEL
(NM&UL)

HPKWMODEL(DE MAAS&FM)HPKW
14032498SCF300-250-490
(12x10")
1800
(60Hz)
498371.0TXC 586/7T450U4B
(NEMA/TEFC)
450338NM6-128473352DF15TiH-F490366


Pump types:


Split-case pump, Jockey pump, In-line pump


Configuration types:


1. Electric motor driven fire pump sets
2. Diesel engine driven fire pump sets
3. jockey pump sets







Standard:



  • UL Listed
  • FM Approval
  • NFPA20 Package



Performance Ranges:



UL:


 Q: 500-4000GPM H:100-190PSI


FM:


 Q: 500-4000GPM H:100-190PSI


CCCF:


 Q:20-500L/S H:0.42-2.0Mpa


NFPA20:


 Q: 300-8000GPM H:60-300PSI


  Application:


ndustrial fields: All petroleum, petrochemical, chemical, oil fields, pipelines bureaus, oil repositories, oil terminals, oil refineries, offshore platforms, etc.; National grain storages, thermal power plants, steel plants, shipyards, paper mills, etc.;

Commercial Field: five-star hotels, hospitals, schools, supermarkets, office buildings, large-scale commercial complex, highway tunnels, subway stations, railway stations, airports; Fire-fighting Engineering Companies;


Service:


1. Any inquiries will be replied within 12 hours.
2. Dedicated to high quality, stable supply and considerate service.
3. Strict on raw material selection.
