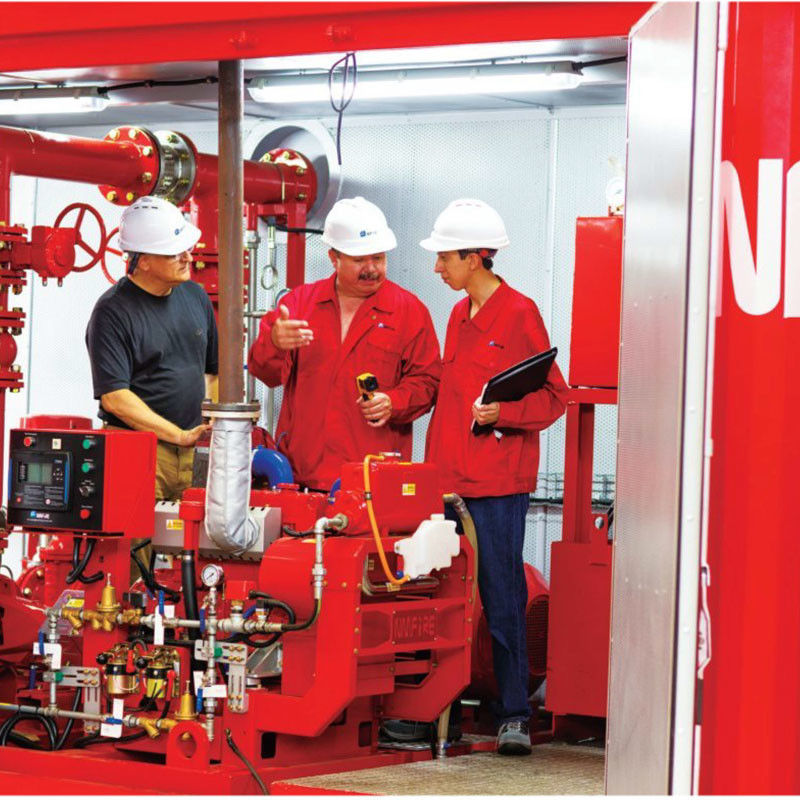

NFPA20 Containerised Fire Fighting Pump
| Place of Origin | China |
|---|---|
| Brand Name | CNP NM FIRE |
| Certification | UL /FM/NFPA20 |
| Model Number | SCF250-200-350 & SCF250-200-450 |
| Minimum Order Quantity | 1set |
| Price | Negotiation |
| Packaging Details | Export Packing |
| Delivery Time | 60 Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor | TECHTOP&UL | Driving | Motor Driver |
|---|---|---|---|
| Controller | Tornatech (UL/FM) | Capacity | 2500usGPM |
| Head | 145PSI | Engine | TECHTOP&UL NMFIRE&UL/FM |
Product Description
-
NFPA20 Containerised Fire-Fighting Pump Sets UL/FM Products 2500GPM 145PSI 40" Container Split Case Fire Pump
Wide Range of Products
Wide Range of Products；
All the main parts are UL/FM products；
The full range of NMFIRE fire solutions available include horizontal split case, end suction, vertical turbine
and in-line pumps；
Single electric, Single diesel, 1 Electric and 1 Diesel, 2 Electric, 2 Diesel configurations are available.
| Name | Model | |
| OS&Y Gate Valve (Suction Control Valve) | ***** | |
| Test Header | ***** | |
| Butterfly Valve (Test the pipe) |
***** | |
| Butterfly Valve (Test Header) |
***** | |
| Flow Meter | 8"-2500-G | |
| Automatic Air Release | 3410AR-116.3 1/2" | |
| Diesel engine assembly |
NM6-135B 1760rpm/252kw | |
| The diesel auxiliary control cabinet | ||
| Battery Box | ||
| Battery | ||
| Silencer | ***** | |
| Coupling | ***** | |
| Coupling Shield | ||
| Flywheel | ||
| Sleeve | ||
| Fuel Tank | ****** | |
| Pump assembly | SCF250-200-350 2500usgpm@145psi 2980rpm |
|
| Pump assembly | SCF250-200-450 2500usgpm@145psi 1760rpm |
|
| Vacuum Manometer | ***** | |
| Pressure Gauge | ***** | |
| Automatic Air Release | 3410AR-116.3 1/2" | |
| Motor assembly | F-TXC449TS300U2B 400V/3PH/50HZ | |
| Coupling | ||
| Coupling Shield | ||
| Cyclic pressure relief valve | Cla-Val 55L-60 100-300psi 3/4" |
|
| Check Valve (Pump Discharge) |
***** | |
| OS&Y Gate Valve (Discharge Control Valve) | ***** | |
| Relief Cone | ***** | |
| Relief Valve | ***** | |
| jockey Pump | 25usgpm/155ps | |
| Circulation safety valve | Cla-Val 55L-60 100-300psi 3/4" |
|
| Vacuum Manometer | ***** | |
| Pressure Gauge ( Pressure Sensing Line ) |
***** | |
| Isolation Valve (JockeyPump Discharge&Suction) | ***** | |
| Check Valve (Jockey Pump Discharge) |
***** | |
| Pressure Gauge ( Pressure Sensing Line ) |
***** | |
| Ball valve ( Pressure Sensing Line ) |
***** | |
| Check Valve (Pressure Sensing Line ) |
***** | |
| Motor Fire Pump Controller |
GPY-400-300/3/50 | |
| Diesel engine Fire Pump Controller |
GPD24-220-C05 | |
| Pressure Maintenance Pump Controller (Jockey Pump) |
JP3-400-5.5/3/50 | |
| Motor common base | ||
| Diesel public base | ||
| Common base | ||
| Accessory | ||
| Container | 40" | |
Standards
NFPA20, UL, FM, EN12845,CCCF
Performance Ranges
UL : Q: 100-750GPM H:70-152PSI
FM: Q: 100-750GPM H:70-152PSI CCCF: Q:15-45L/S H:0.6-0.9Mpa
NFPA20: Q: 100-3000GPM H:40-200PSI
Application
Large hotels, hospitals, schools, office buildings, supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses, and industrial and mining enterprises, seawater pumping, etc.
Special material for seawater pumping is available: Casing, impeller, shaft, shaft sleeve, wear ring—SS2205, Seal—Gland packing, Bearing—SKF.
Five Advantages of CNP NM FIRE
① The late-mover advantage of products, we R&D better fire products than other Suppliers;
② Have the most complete and all series of fire pump models;
③ Have listed diesel engines with the self-owned brand--- NM FIRE；
④ Understand the technology of fire- fighting products and fire- fighting systems better than other competitors and have better services；
⑤ Shorter delivery time.
