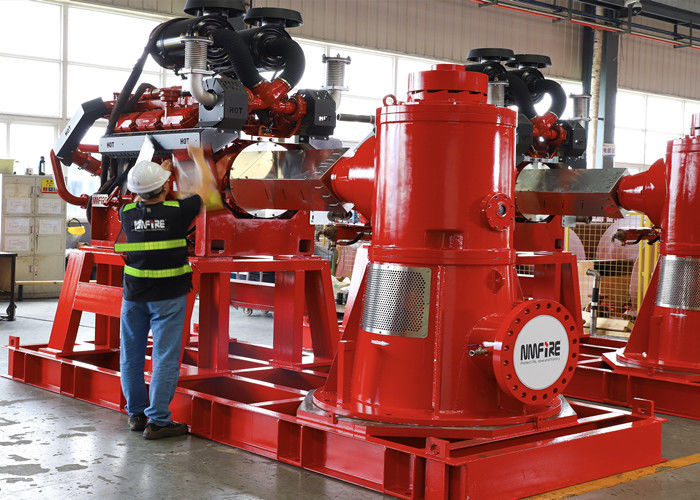

EN12845 1000GPM Diesel Engine Driven Vertical Turbine Pump

  • EN12845 1000GPM Diesel Engine Driven Vertical Turbine Pump
  • EN12845 1000GPM Diesel Engine Driven Vertical Turbine Pump
Place of Origin CHINA
Brand Name NMFIRE
Certification UL / FM
Model Number 200VTP250-22X3
Minimum Order Quantity 1SET
Packaging Details Standard Export Packing
Delivery Time 75 DAYS
Product Details
Medium Fresh Water Driver Diesel Engine
Pump Vertical Turbine Shaft Pump Standard UL/FM
High Light

EN12845 Vertical Turbine Pump

,

1000GPM Vertical Turbine Pump

,

1000GPM Diesel Engine Driven Pump
Leave a Message
Product Description

NMFIRE 1000 GPM VERTICAL TURBINE PUMP DRIVEN BY DIESEL ENGINE & ElECTRIC MOTOR



DEMANDS INFO FORM8.31.5.pdf



Applications
Large hotels, hospitals , schools,office buildings,supermarkets, commercial residential buildings,

metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants,

thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises,

offshore platform(Pump material:Discharge head, Column pipe, shaft, impeller, suction bell—SS2205,

Seal—Gland packing ,Guide bearing—Thordon) etc.

Product types
Electric motor driven fire pump group
Diesel engine driven fire pump group with air cooling & water cooling
NFPA20 Package






Pump NMFIRE  VERTICAL TURBINE   200VTP250-22X3
Discharge Head Carbon Steel
Column Pipe Carbon Steel
Guide beaing Teflon
Shaft AISI420
Seal Gland packing
Impeller S.S 304
Suction bell Ductile  Cast iron
Diffuser Ductile Cast iron
Gear box SMI







EN12845 1000GPM Diesel Engine Driven Vertical Turbine Pump 0



Standards


NFPA20, UL, FM, EN12845,CCCF

Performance Ranges


UL : Q: 100-7500GPM H:40-377PSI 12Models
FM: Q: 100-7500GPM H:40-377PSI 12Models

CCCF: Q:15-300L/S H:0.60-2.0Mpa
NFPA20: Q: 250-6000GPM H:80-300PSI



EN12845 1000GPM Diesel Engine Driven Vertical Turbine Pump 1
