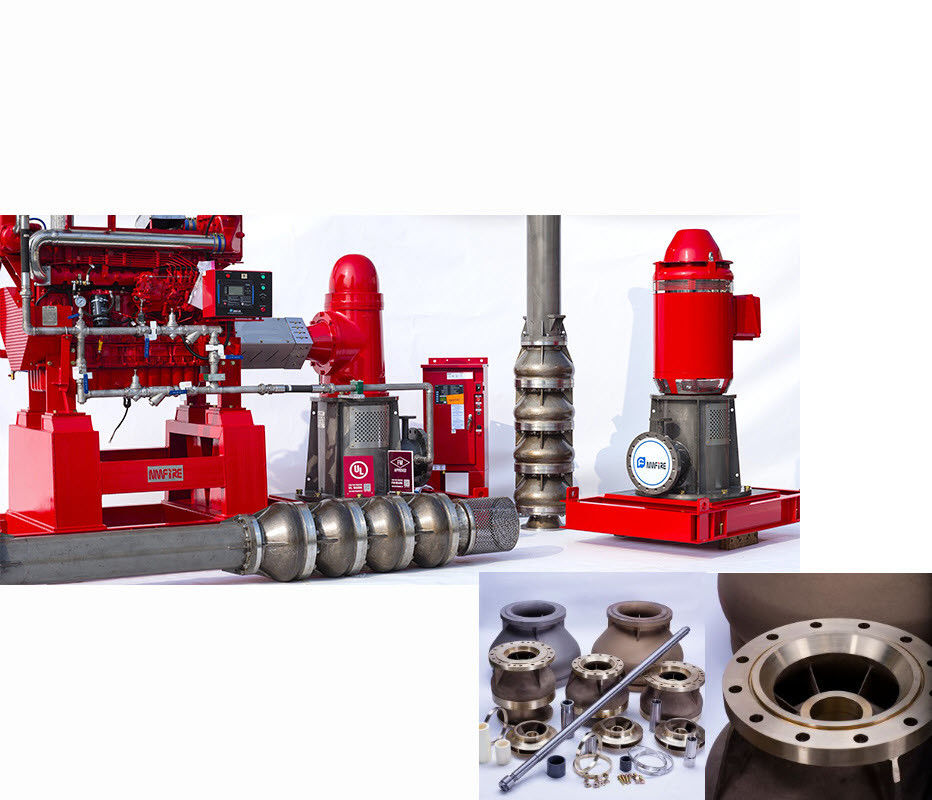

Electric Motor Driven Vertical Turbine Fire Pump With Eaton Controller

Place of Origin China
Brand Name NM FIRE
Certification UL /FM/Non-listed
Model Number Vertical Turbine Fire Pump
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 60 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standards NFPA20, UL, FM, EN12845,CCCF UL Q: 250-5000GPM H:80-300PSI
FM Q: 250-5000GPM H:80-300PSI CCCF Q:15-300L/S H:0.60-2.0Mpa
NFPA20 Q: 250-5000GPM H:80-300PSI Controller Eaton (UL/FM)
High Light

vertical fire pump

,

vertical turbine centrifugal pump

Leave a Message
Product Description
  • Vertical Turbine Fire Pump Group NFPA20 UL FM EN12845 CCCF Standards with Eaton controller



  • Vertical Turbine Fire Pump Details

Standards

NFPA20, UL, FM, EN12845,CCCF
Performance Ranges
UL : Q: 250-5000GPM H:80-300PSI
FM: Q: 250-5000GPM H:80-300PSI
CCCF: Q:15-300L/S H:0.60-2.0Mpa
NFPA20: Q: 250-5000GPM H:80-300PSI



  • Vertical Turbine Fire Pump Application:
Large hotels, hospitals , schools,office buildings,supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises,offshore platform(Pump material:Discharge head, Column pipe, shaft, impeller, suction bell—SS2205, Seal—Gland packing ,Guide bearing—Thordon) etc.

  • Vertical Turbine Fire Pump types

Electric motor driven fire pump group
Diesel engine driven fire pump group with air cooling & water cooling
NFPA20 Package



Please note :the pump will be not sold individual,it must be match with engine or electric motor driver.







Please contact us if you have any other requirements.

Thanks











  • History of CNP and NM Fire:



Electric Motor Driven Vertical Turbine Fire Pump With Eaton Controller 0

CNP was founded more than 25 years,At the beginning, CNP focused on the research and development of stamping and welding stainless steel centrifugal pumps.

Now CNP is the second largest manufacturer on the stainless steel centrifugal pump in the world.

CNP Headquarter :300,000 m2

Over 30 Subsidiaries

More than 5000 staffs









The subsidiary corporations is as follows:

Manufacturing
Environmental protection
•NANFANG PUMP INDUSTRY CO., LTD.
•HANGZHOU NANBENG ENERGY-SAVING TECHNOLOGY Co. Ltd
•HUZHOU NANFENG MACHINARY MANUFACTURING Co. Ltd
•CNP CHANGSHA Co., Ltd.
•CNP NM FIRE FIGHTING SYSTEM CO.,LTD
•HANGZHOU CNP-TSURUMI PUMP CO.,LTD
•HANGZHOU HOWELL FLOW Co., Ltd.
•NANFANG INDUSTRY PTE. LTD.
•TIGERFLOW SYSTEM LLC
•JINSHAN ENVIROMENTPROTECTION SCIENCE and TECHNOLOGY CO.,LTD
•BEIJING ZHONGZIHUAYU ENVIRONMENTAL TECHNOLOGY CO.,LTD



CNP and NM Fire set up a cooperative enterprise in October,2013. introducing some experienced talents with international first-class technical level. The designation and production of the products are strictly consistent with requirements of international certificates,for changing the backward conditions in domestic market.



NM Fire is the first member of NFPA from Chinese pump manufacturers. In March of 2017, it became the first enterprise of China to have both UL & FM two international certification of fire pumps. In September the same year, NM Fire again became the China’s first enterprise to have UL certificate for diesel fire engine. Currently, only 3 or 4 companies in the world have obtained fire engine certification. NM Fire is also the first company in the world to have both UL Listed fire pumps and fire engines. This series of achievements will completely break the long-term monopoly situation of fire products by European and American brand, which speed up the pace of Chinese enterprises to go overseas.



As the first Chinese member of NFPA, NM Fire has a strong technical team with more than 20 years’ global fire equipment R & D experience, including a number of foreign engineers and experts. NM Fire became the first company in the world to have both UL Listed fire pumps and fire engines, which consisted of the NM Fire Team’s 5 years’ hard work and huge investment by enterprise.
This series of historical breakthrough results play a very important role in enhancing the technical level of China’s fire industry and effectively protect national life and property. This is also the primary goal we pursue.



  • Product Details
  • VTP_vertical_turbine_parameter_table
NM FIRE Vertical Shaft Turbine UL/FM FIRE PUMP
NO. Pump Model / Outlet Size / Min Submergence Flow Head
(usgpm) (psi) (m)
1 100VTP40~6
Outlet Size 4" Min Submergence
100 40~270 28~190
150 40~263 28-185
200 40~259 28~182
250 40~253 28~178
2 150VTP200~17
Outlet Size 6" Min Submergence
500 40~213 28~150
750 40~182 32~24
500 40~230 28~162
750 45~188 44~32
3 200VTP250~22
Outlet Size 8" Min Submergence
750 55~288 50.8~40
1000 50~267 36~188
750 40~263 28~185
1000 40~249 28~175
4 250VTP400~28
Outlet Size 10" Min Submergence 151cm
1250 41~305 28~214
1500 40~292 28~205
1500 58~285 40~200
2000 63~251 44~176
5 250VTP550~26
Outlet Size 10" Min Submergence
171cm
2000 40~194 28~185
2000 57~266 40~187
2500 61~245 43~172
6 300VTP860~43
Outlet Size 12" Min Submergence
180cm
2500 50~245 35~172
3000 53~235 37~165
7 350VTP860~43
Outlet Size 12" Min Submergence 180cm
2500 74~236 52~166
3000 69~230 48.5~162
3500 73~222 51~156
4000 104~207 73~145
8 350VTP1250~36
Outlet Size 14"
Min Submergence 250cm
3500 48~250 34~176
4000 46~244 33~172
9 400VTP1250~36
Outlet Size 16"
Min Submergence 250cm
4000 61~270 43~190
4500 60~264 42~186
5000 253 178





In addition to the above models, there are many model UL/FM testing in process.

Looking forward to your enquiry.

  • FAQ

Q1.Do you have the UL-LISTED Fire Pump Sets?

Yes, We have the UL/FM and NFPA standard Fire Pump Sets.



Q2.Please quote the XXGPM@XXXPSI Pump without driver.

Sorry, pump are not sold separately, pumps and drives are sold together.



Q3.I need your motor drive End-suction/Split-casing  fire pump, what information shold I sent to you ?

Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together.



Q4.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ?

You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together.



Q4.I need the UL/FM Vertical Tubine Fire Pump Set ,please sent me the price.

For the motor Diver Vertical Tubine Fire Pump Set: you shoul give us the Capacity, Heed, Voltage  Frequncy and the tank deep.

For the  Diesel Engine Drive Vertical Tubine Fire Pump Set:you should give us the Capacity, Heed  and the tank deep.

If you need Jockey Pump or other accessories,please tell us together.



Q5.May I ask what is the lead time of this fire pump and the jockey piump if ever we order them from you?

Under normal cicumstance,75days ,we will notify the delivery date after receiving the deposit.



Q6.Please advise if you can also send me the cost for the freight?

Pls. confirm the model first,then we wil estimate estimate. The Fire Pump Sets are customized production, actual packaging size and estimated size will be different.



Q7.

The reason which all those clients finally choose NM FIRE,We sort out,It is because we have below advantage;

1: Fast delivery time; Most of fire fighting pump package,from order received to delivery,we can finish it with three months and even less;

2: Professional and high quality;As you know,we are professional with Pump;Engine and control system;And the most important is:We understood the NFPA20 standard;many of NM FIRE engineers are the member of NFPA organization;

3: The last is the competitive price, We can provide you the full solution but the price is very much competitive if you compare with others;
