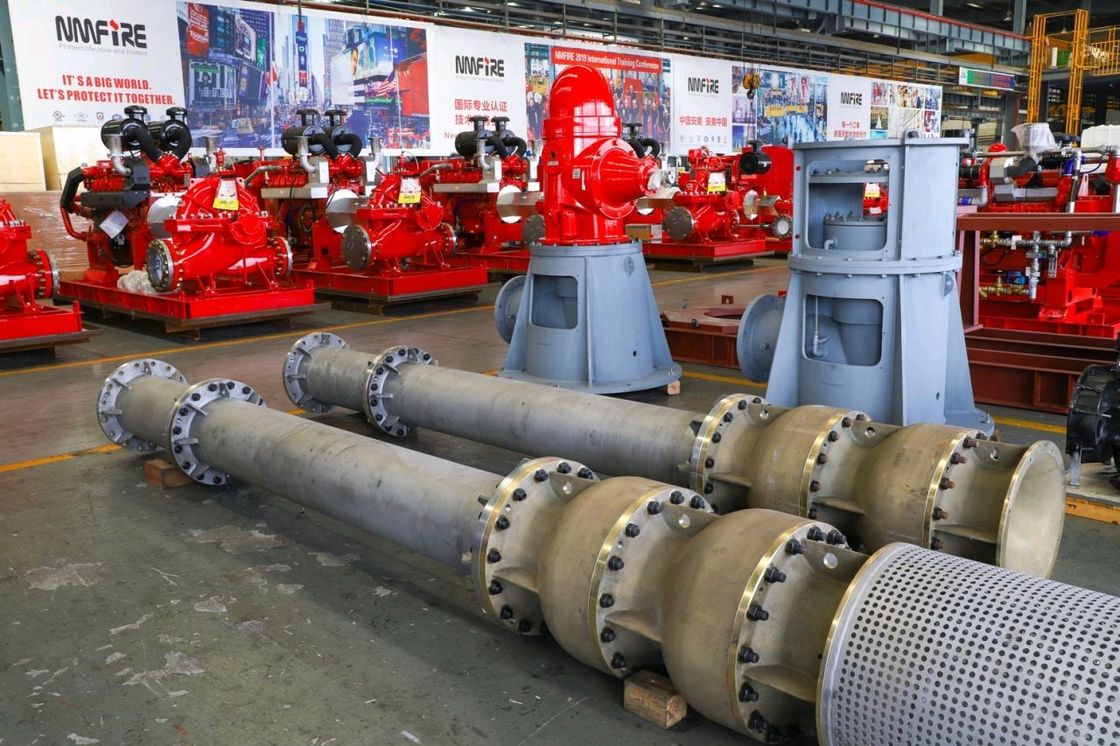

750GPM 120PSI Vertical Turbine Fire Pump With Tornatech Controller
| Place of Origin | China |
|---|---|
| Brand Name | NM FIRE |
| Certification | UL /FM/NFPA20 |
| Model Number | Vertical Turbine Fire Pump |
| Minimum Order Quantity | 1set |
| Price | Negotiation |
| Packaging Details | Export Packing |
| Delivery Time | 60 Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standards | NFPA20, UL, FM, EN12845,CCCF | Capacity | 100-6000USGPM |
|---|---|---|---|
| Head | 40-322PSI | Driven | Diesel Engine |
| Model | Vertical Turbine | Controller | Tornatech/Eaton |
| High Light | 120PSI Vertical Turbine Fire Pump,750GPM Vertical Turbine Fire Pump,tornatech controller fire fighting pumps |
||
Product Description
-
Vertical Turbine 750GPM 120PSI Tornatech controller UL FM NFPA20 VTP Fire Pump diesel engine driven fire pump
Applicable to hotels, airports, office buildings and other buildings,Seawater and fresh water can be used.UL/FM approved ,Applicable to NFPA20 requirements.
Main Parameters:
| Diesel Engine Pump Set ( Heat Exchanger) |
|
|---|---|
| Pump | NM FIRE(UL/FM) |
| Model | 150VTP200-17X4 |
| Material | |
| Discharge Head | Carbon steel |
| Column pipe | Carbon steel |
| Guide beaing | Teflon |
| Shaft | AISI420 |
| Seal | Gland packing |
| Impeller | S.S 304 |
| Suction bell | Ductile Cast iron |
| Diffuse | Ductile Cast iron |
| Gear box | SMI(FM) H125 |
| Engine | NM FIRE(UL) NM4-108B |
| Flow meter | GVI (/FM) |
| Main relief valve | Cla-val (UL/FM) |
| Waste cone | NM FIRE |
| Air relieve vlave | Cla-val (UL/FM) |
| Controller | Tornatech(UL/FM) |
DESCRIPTION:
Applications
Large hotels, hospitals , schools,office buildings,supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises,offshore platform(Pump material:Discharge head, Column pipe, shaft, impeller, suction bell—SS2205, Seal—Gland packing ,Guide bearing—Thordon) etc.
Product types
Electric motor driven fire pump group
Diesel engine driven fire pump group with air cooling & water cooling
NFPA20 Package
About Us
CNP NM Fire-fighting System Co.,Ltd
CNP NM Fire-fighting System Co.,Ltd is a leading manufacturer of fire pumps, diesel engines, controllers, diesel engine driven fire pump set, electric motor driven fire pump set, fire pump package system and containerized fire pump package system in accordance with domestic & international standards. We are a member of the National Fire Protection Association (NFPA) and the European Fire Sprinkler Network (EFSN). The technical team consists of a number of engineers and foreign experts who have more than 20 years of experience in research and development for global fire-fighting equipment. We can offer you a wide range of fire pumps and diesel engines which have gotten UL, FM(America), APSAD(France), SETSCO(Singapore) certificates that meet every fire protection needed.
NMFIRE is the first NFPA (National Fire Protection Association) member in China's pump industry and also the only Chinese company among the members of EFSN (European Fire Sprinkler Network). We are the first company in China to receive both UL and FM certifications and the only company in the world to manufacture UL/FM certified fire pumps and UL/FM diesel engines. Our company was a key contributor in the revision of China's fire pump industry standards. Our product technology and range in products are industry leading in both the domestic and global market place.
Our mission is to produce the highest standard products with the advanced technology to "Protect life, love and history" for the big world.
In addition to the above models, there are many model UL/FM testing in process.
Looking forward to your enquiry.
-
Five Advantages of CNP NM FIRE
①The late-mover advantage of products, we R&D better fire products than other Suppliers;
②Have the most complete and all series of fire pump models;
③Have listed diesel engines with self-owned brand--- NM FIRE；
④Understand the technology of fire- fighting products and fire- fighting system better than other competitors and have better services；
⑤Shorter delivery time.
Please contact us if you have any other requirements.
Thanks
-
Product Details
VTP_vertical_turbine_parameter_table
| NM FIRE Vertical Shaft Turbine UL/FM FIRE PUMP | ||||
| NO. | Pump Model / Outlet Size / Min Submergence | Flow | Head | |
| (usgpm) | (psi) | (m) | ||
| 1 | 100VTP40~6 Outlet Size 4" Min Submergence |
100 | 40~270 | 28~190 |
| 150 | 40~263 | 28-185 | ||
| 200 | 40~259 | 28~182 | ||
| 250 | 40~253 | 28~178 | ||
| 2 | 150VTP200~17 Outlet Size 6" Min Submergence |
500 | 40~213 | 28~150 |
| 750 | 40~182 | 32~24 | ||
| 500 | 40~230 | 28~162 | ||
| 750 | 45~188 | 44~32 | ||
| 3 | 200VTP250~22 Outlet Size 8" Min Submergence |
750 | 55~288 | 50.8~40 |
| 1000 | 50~267 | 36~188 | ||
| 750 | 40~263 | 28~185 | ||
| 1000 | 40~249 | 28~175 | ||
| 4 | 250VTP400~28 Outlet Size 10" Min Submergence 151cm |
1250 | 41~305 | 28~214 |
| 1500 | 40~292 | 28~205 | ||
| 1500 | 58~285 | 40~200 | ||
| 2000 | 63~251 | 44~176 | ||
| 5 | 250VTP550~26 Outlet Size 10" Min Submergence 171cm |
2000 | 40~194 | 28~185 |
| 2000 | 57~266 | 40~187 | ||
| 2500 | 61~245 | 43~172 | ||
| 6 | 300VTP860~43 Outlet Size 12" Min Submergence 180cm |
2500 | 50~245 | 35~172 |
| 3000 | 53~235 | 37~165 | ||
| 7 | 350VTP860~43 Outlet Size 12" Min Submergence 180cm |
2500 | 74~236 | 52~166 |
| 3000 | 69~230 | 48.5~162 | ||
| 3500 | 73~222 | 51~156 | ||
| 4000 | 104~207 | 73~145 | ||
| 8 | 350VTP1250~36 Outlet Size 14" Min Submergence 250cm |
3500 | 48~250 | 34~176 |
| 4000 | 46~244 | 33~172 | ||
| 9 | 400VTP1250~36 Outlet Size 16" Min Submergence 250cm |
4000 | 61~270 | 43~190 |
| 4500 | 60~264 | 42~186 | ||
| 5000 | 253 | 178 | ||
In addition to the above models, there are many model UL/FM testing in process.
Looking forward to your enquiry.
FAQ
Q1.Do you have the UL-LISTED Fire Pump Sets?
Yes, We have the UL/FM and NFPA standard Fire Pump Sets.
Q2.Please quote the XXGPM@XXXPSI Pump without driver.
Sorry, pump are not sold separately, pumps and drives are sold together.
Q3.I need your motor drive End-suction/Split-casing fire pump, what information shold I sent to you ?
Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together.
Q4.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ?
You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together.
Q4.I need the UL Vertical Tubine Fire Pump Set ,please sent me the price.
For the motor Diver Vertical Tubine Fire Pump Set: you shoul give us the Capacity, Heed, Voltage Frequncy and the tank deep.
For the Diesel Engine Drive Vertical Tubine Fire Pump Set:you should give us the Capacity, Heed and the tank deep.
If you need Jockey Pump or other accessories,please tell us together.
Q5.May I ask what is the lead time of this fire pump and the jockey piump if ever we order them from you?
Under normal cicumstance,75days ,we will notify the delivery date after receiving the deposit.
Q6.Please advise if you can also send me the cost for the freight?
Pls. confirm the model first,then we wil estimate estimate. The Fire Pump Sets are customized production, actual packaging size and estimated size will be different.
-
