60HZ Electric Motor Driven Vertical Turbine Fire Pump 400GPM 227PSI

Name: 60HZ Electric Motor Driven Vertical Turbine Fire Pump 400GPM 227PSI
Brand: Wuhan Spico Machinery & Electronics Co., Ltd.
SKU: Vertical Turbine Fire Pump
Price: 25,500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: NM FIRE

Certification: UL /FM/NFPA20

Model Number: Vertical Turbine Fire Pump

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: Export Packing

Delivery Time: 60 Days

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Electric Motor Vertical Turbine Fire Pump, 400GPM Vertical Turbine Fire Pump, 60HZ Electric Motor Driven Fire Pump


Standards:	NFPA20, UL, FM, EN12845,CCCF	Capacity:	6000-7000gpm
Head:	170-280psi	Driven:	Suitable For Electric And Diesel Driven
Model:	Vertical Turbine	Controller:	Tornatech/Eaton
Usage:	Water / Sea Water	Color:	Red

Standards:	NFPA20, UL, FM, EN12845,CCCF
Capacity:	6000-7000gpm
Head:	170-280psi
Driven:	Suitable For Electric And Diesel Driven
Model:	Vertical Turbine
Controller:	Tornatech/Eaton
Usage:	Water / Sea Water
Color:	Red

60HZ Electric Motor Driven Vertical Turbine Fire Pump 400GPM 227PSI

Vertical Turbine Fire Pump 400gpm 227psi 60HZ Electric Motor Driven Fire Pump Sea Water Fresh Water

Product types

Electric motor-driven fire pump group
Diesel engine-driven fire pump group with air cooling & water cooling
NFPA20 Package

We have 13 different model vertical inline pumps that will be finished UL/FM testing in the next 2-3 months.
Flow: 50-1500gpm
Pressure: 40-198psi
Speed: 1760/3550/2980rpm
This kind of electric motor-driven fire pump will be mainly used for commercial marketing.

Main Parameters:


Motor Pump Set

Pump: NMFIRE(UL/FM)
Model: 150VTP200-17X8
Q=400usgpm H=227psi n=1480rpm L=2.9m

Material:
Discharge Head---Carbon steel
Column pipe-- Carbon steel
Guide bearing----Teflon
Shaft--AISI420
Seal------ Gland packing
Impeller---S.S 304
Suction bell----Ductile Cast iron
Diffuser-- Ductile Cast iron

Motor: TECHTOP(UL)
Model: VHS405TP125U4B
125HP/50HZ /400V/ 3PH

Control Panel: Tornatech (UL/FM)
Model: GPY-400/125/3/50

Air relieve valve:Cla-val (UL/FM)
Model:33ATD 2"

Circulation safety valve: Cla-val (UL/FM)
Model: 55L-60 3/4" 100-300psi

DESCRIPTION:

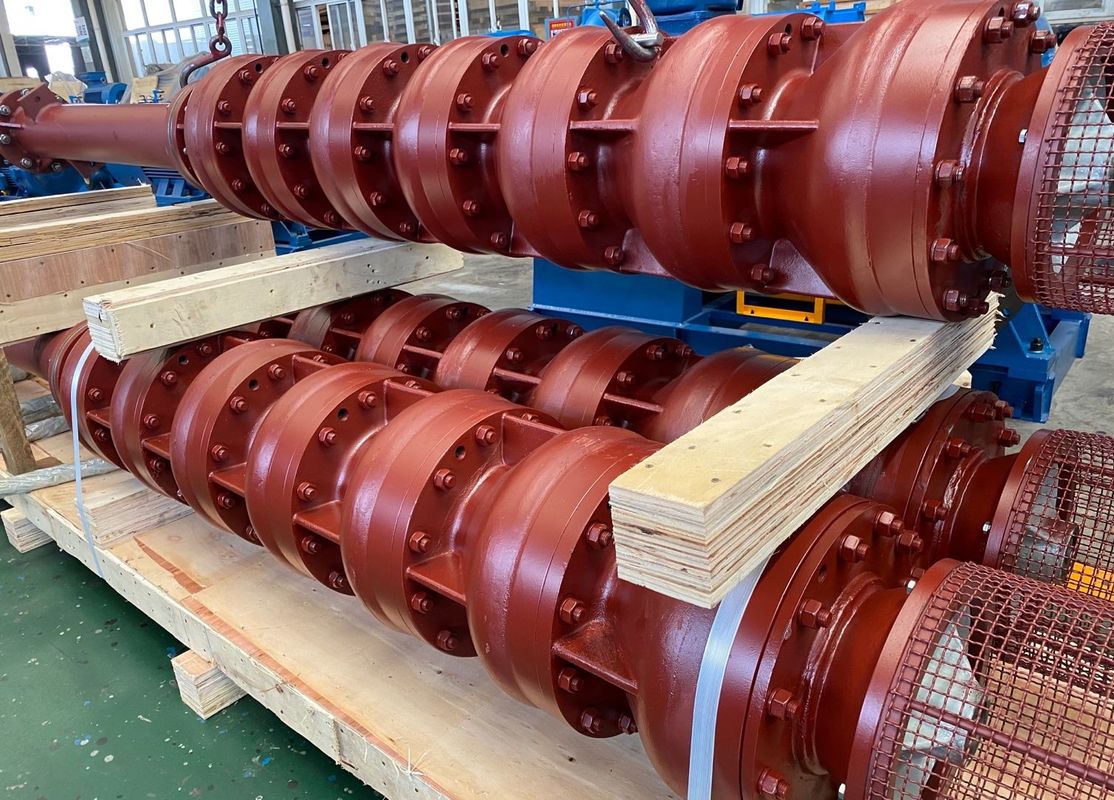

60HZ Electric Motor Driven Vertical Turbine Fire Pump 400GPM 227PSI 0

60HZ Electric Motor Driven Vertical Turbine Fire Pump 400GPM 227PSI 1

Applications

Large hotels, hospitals, schools, office buildings, supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises, offshore platform(Pump material: Discharge head, Column pipe, shaft, impeller, suction bell—SS2205, Seal—Gland packing , Guide bearing—Thordon) , etc.

About Us:

CNP NM Fire-fighting System Co., Ltd

CNP NM Fire-fighting System Co., Ltd is a leading manufacturer of fire pumps, diesel engines, controllers, diesel engine driven fire pump sets, electric motor driven fire pump sets, fire pump package system, and containerized fire pump package system in accordance with domestic & international standards. We are a member of the National Fire Protection Association (NFPA) and the European Fire Sprinkler Network (EFSN). The technical team consists of a number of engineers and foreign experts who have more than 20 years of experience in research and development for global fire-fighting equipment. We can offer you a wide range of fire pumps and diesel engines which have gotten UL, FM(America), APSAD(France), SETSCO(Singapore) certificates that meet every fire protection needed.

NMFIRE is the first NFPA (National Fire Protection Association) member in China's pump industry and also the only Chinese company among the members of EFSN (European Fire Sprinkler Network). We are the first company in China to receive both UL and FM certifications and the only company in the world to manufacture UL/FM certified fire pumps and UL/FM diesel engines. Our company was a key contributor to the revision of China's fire pump industry standards. Our product technology and range in products are industry-leading in both the domestic and global marketplace.

Our mission is to produce the highest standard products with advanced technology to "Protect life, love and history" for the big world.

In addition to the above models, there are many model UL/FM testing in process.

Looking forward to your inquiry.

Five Advantages of CNP NM FIRE

① The late-mover advantage of products, we R&D better fire products than other Suppliers;

② Have the most complete and all series of fire pump models;

③ Have listed diesel engines with the self-owned brand--- NM FIRE；

④ Understand the technology of fire- fighting products and fire- fighting systems better than other competitors and have better services；

⑤ Shorter delivery time.

Please contact us if you have any other requirements.

Thanks

FAQ

Q1. Do you have the UL-LISTED Fire Pump Sets?

Yes, We have the UL/FM and NFPA standard Fire Pump Sets.

Q2. I need your motor drive End-suction/Split-casing fire pump, what information should I send to you?

Sir/Madam, you can provide the Capacity, Heed, Voltage, and Frequency, we will make the quotation for you, If you need Jockey Pump or other accessories, please tell us together.

Q3. If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information should I sent to you?

You can send the Capacity Heed, Temperature, and Altitude (temperature and altitude will affect the performance of diesel engines). If you need a Jockey Pump or other accessories, please tell us the Voltage and Frequency or accessories together.

Q4. I need the UL/FM Vertical Turbine Fire Pump Set, please sent me the price.

For the motor Diver Vertical Turbine Fire Pump Set: you should give us the Capacity, Heed, Voltage Frequency and the tank deep.

For the Diesel Engine Drive Vertical Turbine Fire Pump Set: you should give us the Capacity, Heed, and the tank deep.

If you need Jockey Pump or other accessories, please tell us together.
