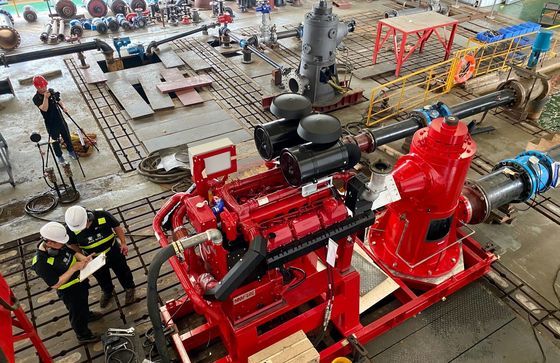

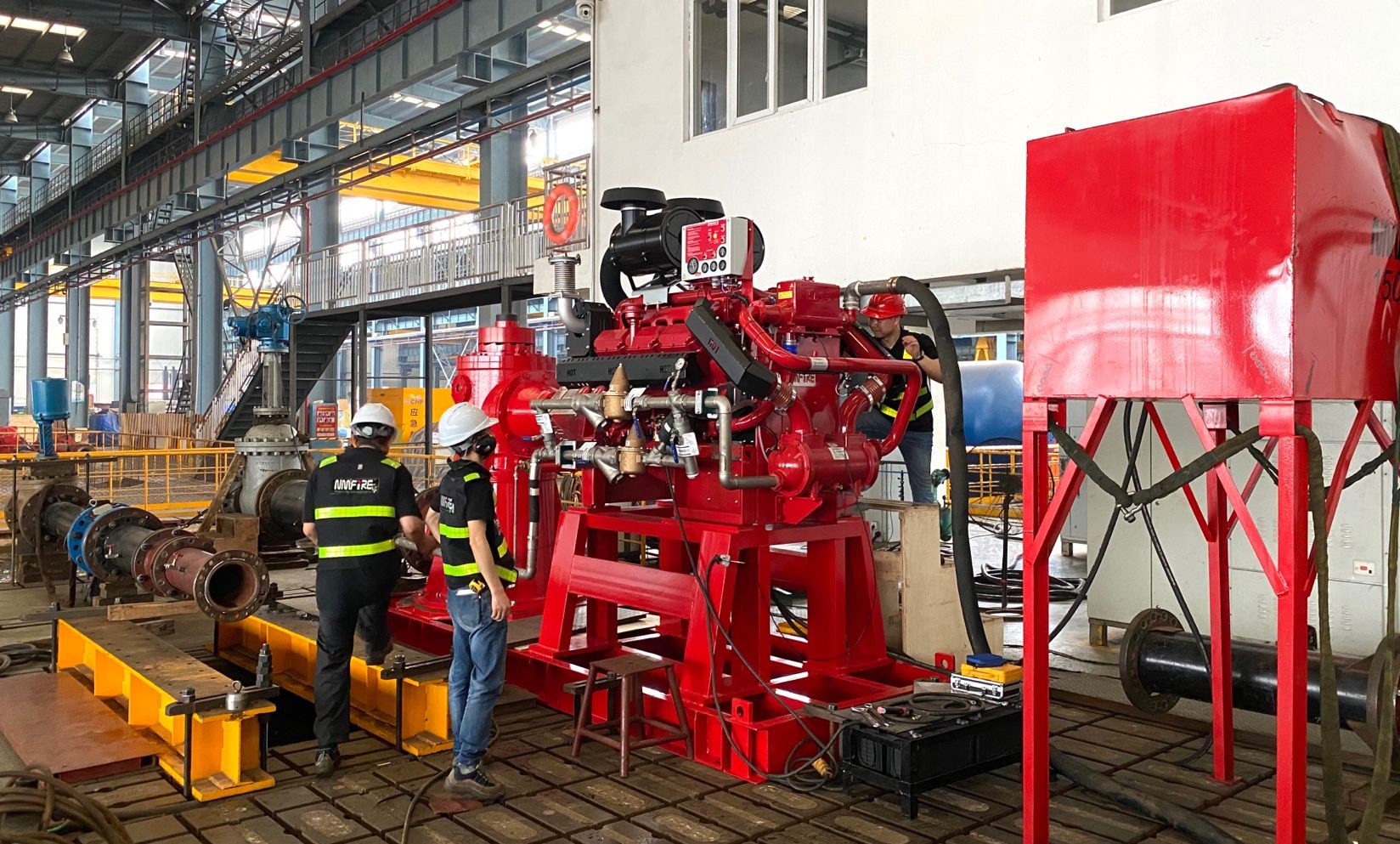

1000GPM Diesel Fire Water Pump
| Place of Origin | China |
|---|---|
| Brand Name | NM FIRE |
| Certification | UL /FM/NFPA20 |
| Model Number | Vertical Turbine Fire Pump |
| Minimum Order Quantity | 1set |
| Price | Negotiation |
| Packaging Details | Export Packing |
| Delivery Time | 60 Days |
| Payment Terms | L/C, T/T |
Product Details
| Standards | NFPA20, UL/FM, EN12845,CCCF | Capacity | 100-7000gpm |
|---|---|---|---|
| Driven | Suitable For Electric And Diesel Driven | Model | Vertical Turbine |
| Controller | Tornatech/Eaton | Usage | Water Water Or Sea Water |
| Color | Red | Application | Fire Fighting |
| High Light | 1000GPM Diesel Fire Water Pump,2000GPM Diesel Fire Water Pump,3000GPM Vertical Turbine Fire Pump |
||
Product Description
Vertical Turbine Pump Diesel Engine Driven Sea Water Fresh Water Fire Pump 1000GPM 2000GPM 3000GPM
You can leave the flow, head and other information about the project, I will recommend the most suitable pump set for you.
Both seawater and freshwater are available, and the material will be adjusted according to requirements.
.
Main Parameters:
| Diesel Engine Pump Set ( Heat Exchanger) |
|
|---|---|
| Pump | 200VTP250-22X3 NM FIRE(UL/FM) |
| Capacity | 100-7000gpm |
| Head | 170-280psi |
| Material | |
| Discharge Head | Carbon steel +Duplex S.S2205 |
| Column pipe | Duplex S.S2205 |
| Guide bearing | Teflon |
| Shaft | Duplex S.S2205 |
| Seal | Gland packing |
| Impeller | Duplex S.S2205 |
| Suction bell | Duplex S.S2205 |
| Diffuse | Duplex S.S2205 |
| Engine | NM6-114C(UL) |
| Flowmeter | GVI (/FM) |
| Main relief valve | Cla-Val (UL/FM) |
| Waste cone | NM FIRE |
| Air relieve valve | Cla-Val (UL/FM) |
| Controller | Tornatech(UL/FM) |
DESCRIPTION:
Applications
Hotel, Hospital, School Supermarket, Shopping Center, Airports, subways, and other transportation hubs,Petroleum, factories, and related buildings.
NMFIRE: No More Fire
About Us
CNP NM Fire-fighting System Co., Ltd
CNP NM Fire-fighting System Co., Ltd is a leading manufacturer of fire pumps, diesel engines, controllers, diesel engine driven fire pump sets, electric motor driven fire pump sets, fire pump package systems, and containerized fire pump packages systems under domestic & international standards. We are a member of the National Fire Protection Association (NFPA) and the European Fire Sprinkler Network (EFSN). The technical team consists of several engineers and foreign experts who have more than 20 years of experience in research and development for global fire-fighting equipment. We can offer you a wide range of fire pumps and diesel engines which have gotten UL, FM(America), APSAD(France), SETSCO(Singapore) certificates that meet every fire protection needed.
NMFIRE is the first NFPA (National Fire Protection Association) member in China's pump industry and also the only Chinese company among the members of EFSN (European Fire Sprinkler Network). We are the first company in China to receive both UL and FM certifications and the only company in the world to manufacture UL/FM certified fire pumps and UL/FM diesel engines. Our company was a key contributor to the revision of China's fire pump industry standards. Our product technology and range in products are industry-leading in both the domestic and global marketplace.
Our mission is to produce the highest standard products with advanced technology to "Protect life, love and history" for the big world.
In addition to the above models, there are many model UL/FM testing in process.
Looking forward to your inquiry.
-
Five Advantages of CNP NM FIRE
① The late-mover advantage of products, we R&D better fire products than other Suppliers;
② Have the most complete and all series of fire pump models;
③ Have listed diesel engines with the self-owned brand--- NM FIRE；
④ Understand the technology of fire-fighting products and fire- fighting systems better than other competitors and have better services；
⑤ Shorter delivery time.
Please contact us if you have any other requirements.
Thanks
-
Product Details
VTP vertical turbine parameter table
| NM FIRE Vertical Shaft Turbine UL/FM FIRE PUMP | ||||
| NO. | Pump Model / Outlet Size / Min Submergence | Flow | Head | |
| (usgpm) | (psi) | (m) | ||
| 1 | 100VTP40~6 Outlet Size 4" Min Submergence |
100 | 40~270 | 28~190 |
| 150 | 40~263 | 28-185 | ||
| 200 | 40~259 | 28~182 | ||
| 250 | 40~253 | 28~178 | ||
| 2 | 150VTP200~17 Outlet Size 6" Min Submergence |
500 | 40~213 | 28~150 |
| 750 | 40~182 | 32~24 | ||
| 500 | 40~230 | 28~162 | ||
| 750 | 45~188 | 44~32 | ||
| 3 | 200VTP250~22 Outlet Size 8" Min Submergence |
750 | 55~288 | 50.8~40 |
| 1000 | 50~267 | 36~188 | ||
| 750 | 40~263 | 28~185 | ||
| 1000 | 40~249 | 28~175 | ||
| 4 | 250VTP400~28 Outlet Size 10" Min Submergence 151cm |
1250 | 41~305 | 28~214 |
| 1500 | 40~292 | 28~205 | ||
| 1500 | 58~285 | 40~200 | ||
| 2000 | 63~251 | 44~176 | ||
| 5 | 250VTP550~26 Outlet Size 10" Min Submergence 171cm |
2000 | 40~194 | 28~185 |
| 2000 | 57~266 | 40~187 | ||
| 2500 | 61~245 | 43~172 | ||
| 6 | 300VTP860~43 Outlet Size 12" Min Submergence 180cm |
2500 | 50~245 | 35~172 |
| 3000 | 53~235 | 37~165 | ||
| 7 | 350VTP860~43 Outlet Size 12" Min Submergence 180cm |
2500 | 74~236 | 52~166 |
| 3000 | 69~230 | 48.5~162 | ||
| 3500 | 73~222 | 51~156 | ||
| 4000 | 104~207 | 73~145 | ||
| 8 | 350VTP1250~36 Outlet Size 14" Min Submergence 250cm |
3500 | 48~250 | 34~176 |
| 4000 | 46~244 | 33~172 | ||
| 9 | 400VTP1250~36 Outlet Size 16" Min Submergence 250cm |
4000 | 61~270 | 43~190 |
| 4500 | 60~264 | 42~186 | ||
| 5000 | 253 | 178 | ||
In addition to the above models, there are many model UL/FM testing in process.
Looking forward to your inquiry.
FAQ
Q1. Do you have the UL-LISTED Fire Pump Sets?
Yes, We have the UL/FM and NFPA standard Fire Pump Sets.
Q2. I need your motor drive End-suction/Split-casing fire pump, what information should I send to you?
Sir/Madam, you can provide the capacity, heed, voltage and frequency, we will make the quotation for you, If you need a Jockey Pump or other accessories, please tell us together.
Q3. If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information should I send to you?
You can send the Capacity heed, temperature, and altitude (temperature and altitude will affect the performance of diesel engines). If you need a Jockey Pump or other accessories, please tell us voltage and frequency or accessories together.
Q4. I need the UL/FM Vertical Turbine Fire Pump Set, please sent me the price.
For the motor Diver Vertical Turbine Fire Pump Set: you should give us the Capacity, Heed, Voltage Frequency, and the tank deep.
For the Diesel Engine Drive Vertical Turbine Fire Pump Set: you should give us the capacity, heed, and the tank deep.
If you need a jockey Pump or other accessories, please tell us together.
-
