500GPM Horizontal Split Case Fire Pump

Place of Origin China
Brand Name NM Fire
Certification UL /FM /CE/ NFPA 20
Model Number SCF125-80-250-500
Minimum Order Quantity 1 SET
Packaging Details Standard Export Seaworthy Packing
Delivery Time 75 DAYS
Product Details
Supply Scope NFPA 20 Fire Pump Package Pumps 1 Diesel Pump , 1 Motor Pump , 1 Jockey Pump
Others All Necessary Accessories UL/FM Rated Flow 500 GPM
Rated Head 110 PSI
High Light

500GPM Horizontal Split Case Fire Pump


110PSI Horizontal Split Case Fire Pump


500GPM Skid Mounted Fire Pump

Leave a Message
Product Description

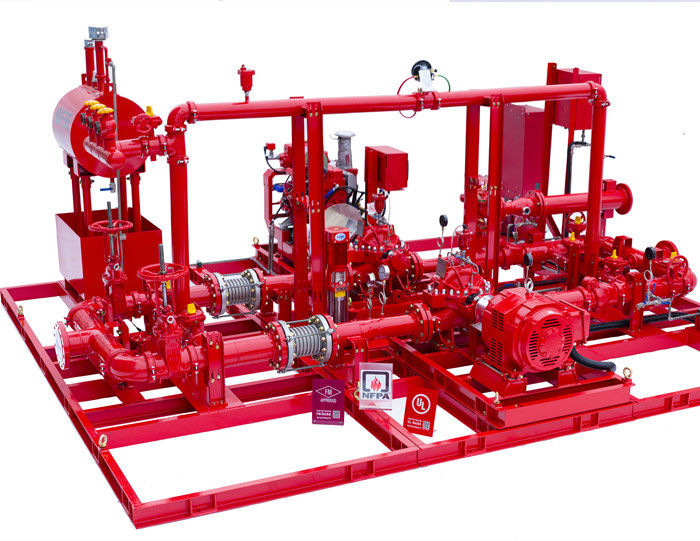

NM FIRE 500 GPM Horizontal Split Case Fire Pump Assembly NFPA 20

Skid Mounted Fire Pump


Main Configurations:


Pump Assembly SCF125-80-250    500gpm@110psi
Motor Assembly TDC326TS60U2B
Jockey Pump CDL4-12 5m3/h@118psi 2pole/2.2kw
Motor Fire Pump Controller GPY-380V-60HP-3PH-50HZ
Diesel Engine Fire Pump Controller GPD24-220
Jockey Pump Controller JP3-380V-3HP-3PH-50HZ
Other Accessories Full set



What is NFPA 20?


NFPA( National Fire Protection Association ), which mainly lay down Fire codes,standards,

operating instructions,manuals and guidelines etc.NFPA20 is a specialized standard for the

designation and installation of fire pump groups.



A complete set of NFPA20 fire fighting pump package


Include: Main pump, Diesel Engine, Electric Motor, Control Panel, Fuel Tank, Jockey Pump,

Coupling and driven shaft, All kinds of different Valves, Flow Meter and Testing head.


500GPM Horizontal Split Case Fire Pump 0


The real meaning of UL/FM?


Notice “/ ” means “or” → UL or FM:

Project can be UL-listed or FM-approved, one of them is OK.


FM certification is higher than UL certification,

if it is a project insured by FM, every main products,

like pump, diesel engine, controller and etc. must be got FM certification;


So, the price & quality requirement of FM-approved projects is reasonably higher than

the price & quality requirement of UL-listed projects.


However, no matter when talking about UL-listed or FM-approved project,

motors are still UL certificated all around the word,

also the FM institution does not have a mandatory rule about motors, at present.


So, when clients send an enquiry about UL/FM, we always have to ask:” is it a project insured by FM or not?”


Test Before Delivery:


500GPM Horizontal Split Case Fire Pump 1


500GPM Horizontal Split Case Fire Pump 2


Why Choose NM FIRE?


The late-mover advantage of products, we R&D better fire products than other Suppliers;


Have the most complete and all series of fire pump models;


Have listed diesel engines with self-owned brand--- NM FIRE


Understand the technology of fire- fighting products and fire- fighting system better than other competitors

and have better services


Shorter delivery time.
