121HP Fire Pump Diesel Engine For Driving Stationary Fire Fighting Pumps

Place of Origin China
Brand Name NM Fire
Certification UL/FM
Model Number NM4-108B
Minimum Order Quantity 1 set
Price USD5000~100000/SET
Packaging Details seaworthy packing plywood case
Delivery Time 45 working days
Supply Ability 100 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Fuel Diesel Usage Fire Pump Diesel Engine,for Fire Pump
Application Fire Color Red
High Light

121HP Fire Pump Diesel Engine


Stationary Fire Pump Diesel Engine

Leave a Message
Product Description

Diesel Engines for driving stationary fire pumps




The design and selection of diesel engine fire pumps should not only meet the requirements of the most

unfavorable flow and head of fire fighting, but also consider the requirements of diesel engines for fire

protection products due to intrinsic safety when the diesel engine is used as the power source of the fire

pump. In addition to the electric start method, it should also have functions such as mechanical pump start,

unit cooling, overspeed protection, manual cranking and mechanical energy storage start.

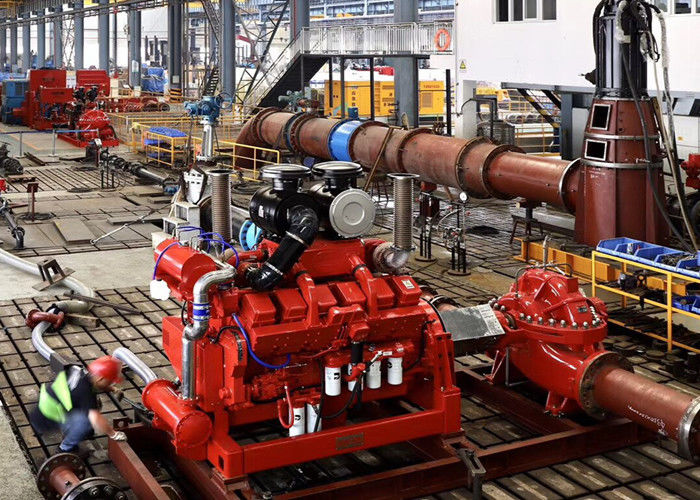

121HP Fire Pump Diesel Engine For Driving Stationary Fire Fighting Pumps 0




The biggest difference between a diesel engine fire pump and an electric water pump is that it has its own

independent power supply system—battery. Therefore, the startup and operation of the diesel engine fire

pump can be completely separated from the city power.Diesel engine fire pumps are usually used as backup

facilities. Therefore, they are automatically started only when the fire fighting signal comes, and when the

electric water pump fails or the power supply is cut off. When it has an ultra-low pressure pump starting device,

the electric water pump control cabinet supporting it should also have an ultra-low pressure pump starting device,

and the lower limit of the two pump starting points should have a certain pressure difference. Of course, I can also

design a controlsystem that better suits the needs of the customer according to the customer's requirements.


Main Parameter of NM4-108B Fire Diesel Engine


Type 4 Cycle; In-line; water cooled; 4 Cylinder
Aspiration Turbocharged
Bore and Stroke mmxmm  108x115
Cylinder Liner Type Wet Dry
Displacement L 4.214
Compression Ratio 17:01
Riring Order 1-3-4-2
Combustion System Direct Injection
Roattion Viewed from front of engine CW
Valvest Per Cylinder Intake : 1 Exhaust : 1
Valves lashes at cold Intake mm ( inch ) 0.40±0.05
Exhaust mm ( inch ) 0.40±0.05
Ignition Type Compression(Diesel)
Charge Air Cooling Type Raw Water
Dry Weight Approx. kg 631
Dimension Approx. mm 1292*940*1210
Flywheel / Flywheel House Dimension 11.5" / SAE 2
Torque at rated RPM N.m                         291




121HP Fire Pump Diesel Engine For Driving Stationary Fire Fighting Pumps 1
