Electric Motor Driven Vertical Line Shaft Pump

Name: Electric Motor Driven Vertical Line Shaft Pump
Brand: Wuhan Spico Machinery & Electronics Co., Ltd.
SKU: 150vtc150-14x4
Price: 25,500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: NM Fire

Certification: CCCF

Model Number: 150vtc150-14x4

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: IRON FRAME with Plywood Case

Delivery Time: 75DAYS

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                vertical fire pump, vertical turbine centrifugal pump


Application:	Fire Fighting	Medicum:	Nature Water
Driven Mode:	Electric Motor

Application:	Fire Fighting
Medicum:	Nature Water
Driven Mode:	Electric Motor

Electric Motor Driven Vertical Line Shaft Pump

Vertical Turbine Fire Pump 500gpm@120psi with Electric Motor Driven for Fire Fighting Use

Pump: NM FIRE
Model: 150VTC150-14X4
Q=500usgpm H=120psi n=1760rpm L=4m

Material:
Discharge Head---Carbon steel
Column pipe-- Carbon steel
Guide beaing----Teflon
Shaft--S.S420
Seal------ Gland packing
Impeller---S.S 304
Suction bell----Ductile Cast iron
Diffuser-- Ductile Cast iron

Motor: XDD
Model: VHS364TP-4-060S
45KW/60HZ /400V/ 3PH

Control Panel: Tornatech
Model: GFY-400V-60HP-3PH-60HZ-A4

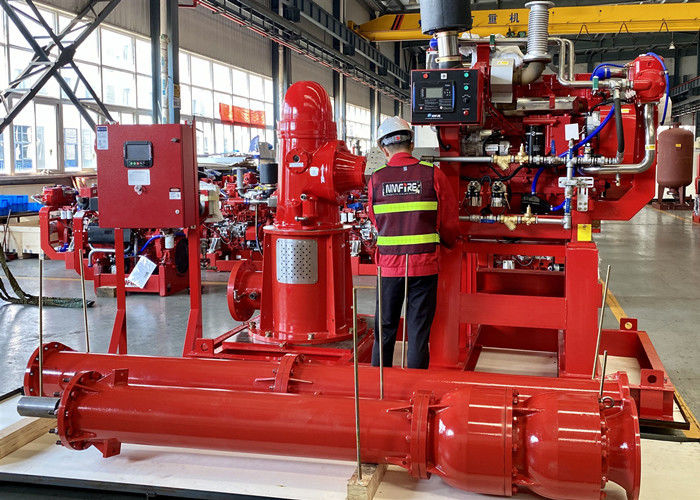

Electric Motor Driven Vertical Line Shaft Pump 0

A vertical turbine pump is a special centrifugal pump designed to draw water from a reservoir or well that is deep underground. It is one of the two major types of turbine pumps and it’s at times referred to as a line-shaft turbine pump or deep well turbine pump.
The two major types of turbine pumps are submersible turbine pumps and vertical turbine pumps. While the electric motor in a submersible pump is located underwater at the pump’s base, the motor in a vertical turbine pump is located above ground and it’s connected through a vertical shaft to the impellers at the base of the pump. However, word “turbine” in the pump’s name is somewhat inappropriate because this type of pump doesn’t have anything to do with a turbine. Applications
The vertical turbine pump is primarily used in cases where a submersible pump cannot be used because the flow exceeds the range of turbines. These types of pumps are also used to supply water to municipalities that depend on ground water instead of surface water, and to supply fire water and make-up water for industrial plants.

Electric Motor Driven Vertical Line Shaft Pump 1
