vertical line shaft pump
, vertical turbine centrifugal pump
UL Listed 2000 GPM Vertical Turbine Fire Fighting Water Pump with Diesel Engine / Electric Motor Driven
UL Listed 2000gpm Fire Fighting Water Pump Set Diesel Engine / Electric Motor Driven
UL listed 2000gpm@125psi Diesel Engine Driven Vertical Turbine Pump for Fire Fighting Use
Vertical turbine pump is designed to successfully operate in a multitude of water sources from wells to oceans.
Markets served: Urban and rural municipal water, irrigation, chemical processing, primary metals, petroleum, power plants, mines, food processing, offshore platforms and more
Handles raw water intake, liquid transfer, cooling water circulation, booster service, storm water, flood control, marine, process services, volatile fluids, condensate, fuel pumps and mine dewatering
Turbine bowls can be staged in series to produce the necessary discharge pressures. Constructed out of cast iron, bronze, stainless steel or other machineable materials. Wear rings are available to provide a renewable surface. Open line shafts – Allows shaft bearings lubrication
Application:
All petroleum, petrochemical, chemical, military and naval institutes, oil fields of Petro China, Sinopec, CNOOC, pipelines Bureaus, oil repositories, oilterminals, construction companies, oil refineries, offshore platforms, etc.
Can supply sea water application fire fighting pumps, with suitable material like:duplex stainless steel, Super Duplex Stainless steel and AI-Bronze.

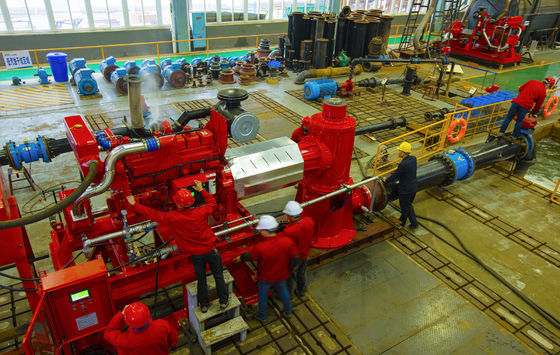

Testing Center for Vertical Turbine Pump
Parameters :
| Rated Flow |
2000 GPM |
| Rated Head |
125 PSI |
| Speed |
1760 rpm |
| Length of the Pump |
3.08m |
| Casing |
Ductile cast iron |
| Impeller |
SS304 |
| Shaft sleeve |
SS304 |
| Seal |
Gland packing |
| Wear ring |
Bronze |
| Bearing |
SKF |
| Engine |
NM Fire NM6-114 190KW @ 1760 rpm |
| Controller |
Eaton FD120-L1 |
