Product Details
Place of Origin: China
Brand Name: CNP NM FIRE
Certification: UL/FM
Model Number: IF05ATIH-F
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Package
Delivery Time: 35-40 Working Days
Payment Terms: L/C, T/T
Color: |
Red |
Name: |
NM Fire |
Model: |
IF05ATIH-F |
Cooling: |
Water Cold |
Fuel: |
Diesel |
Power: |
130kw |
Color: |
Red |
Name: |
NM Fire |
Model: |
IF05ATIH-F |
Cooling: |
Water Cold |
Fuel: |
Diesel |
Power: |
130kw |

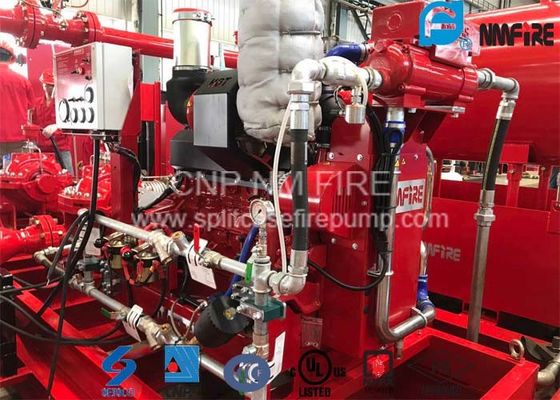

High Power 130 KW Fire Pump Diesel Engine Suitable for All Fire Pumps
Manufacturing with a personal touch
We translate (almost ) all your wishes into a high quality firefighting engine. Not only technical requirements and demands, also wishes involving branding can be realized. Our personal touch goes beyond manufacturing, at De Maas we speak your language. We know our customers by name and our customers know us. We take time to get to know your business, needs and requirements. All of which result in a satisfying cooperation and the best customized engines.
One of De Maas's specialities is the development and manufacturing of dedicated engines for sprinkler systems.The in house capabilities give us the possibility to develop a carefully selected base engine into a high quality,high performance firefighting engine.Experience over years have given us the knowledge to do that in line with the highest demanding standards required by the market.
De Maas is continuously investing in the quality of their products and therefore in their staff and facilities. As a result, a modern engine test facility has been established in 2013 at the new premises in Zwijndrecht, The Netherlands. Engines can be tested according the required standards such as FM by qualified employees. Being a FM approved supplier, we highly value every step in the production process of our firefighting engines and can therefore guarantee reliable and safe engines, both listed and non-listed.
| General Engine Data | IF05ATIH-F | ||||||
| Type | 4 cycle, 4 Cylinder In Line, Water cooled | ||||||
| Aspiration |
Turbo charged, Intercooled |
||||||
| Cylinder Type | Replaceable | ||||||
| Bore x Stroke(mm) | 104 x 132 | ||||||
| Displacement(litre) | 4.483 | ||||||
| Compression Ratio | 17.5 : 1 | ||||||
| Valves per Cylinder | - Intake | 1 | |||||
| - Exhaust | 1 | ||||||
| Valve Timing | - Intake | Opening: 15⁰ BTDC - Close: 35⁰ ABDC | |||||
| - Exhaust | Opening: 69⁰ BBDC - Close: ATDC | ||||||
| Valves lashes at cold | - Intake | mm |
0.25 ±0.5 |
||||
| - Exhaust | mm |
0.5 ±0.5 |
|||||
| Combustion Type |
Direct Injection |
||||||
| Firing Order | 1 – 3 – 4 – 2 | ||||||
| Rotation | Counter Clockwise, viewed from flywheel | ||||||
| Dimension L x W x H (L=Construction Length) | ± mm |
977 x 955 x 1,537 |
|||||
| Engine Rating | 1,760 | 2,100 | 2,200 | 2,350 | 2,600 | 2,800 | 2,940 |
| IF05ATIH-F | kW | 91 | 118 | 122 | 125 | 130 | 131 | 132 |
| Fuel System | |||||||||||||||
| Injection Pump | StanaDyne Rotary Pump type | ||||||||||||||
| Governor | Fixed speed control | ||||||||||||||
| Fuel Lift Pump | Exclusive (Electric version as an Option) | ||||||||||||||
| Fuel Filter | Full flow, cartridge type | ||||||||||||||
| Used Fuel | Diesel fuel according EN 590 | ||||||||||||||
| Fuel consumption at Full Load Approx. | at 2,940 rpm | 266 | 228 | 220 | 247 | ||||||||||
| Fuel consumption information at other Revs. | See table no. | 03.400.06FCEN03 | |||||||||||||
| Standard Supply line Size | mm | 10 | |||||||||||||
| Standard Return line Size | mm | 10 | |||||||||||||
| Electrical System | 24 Volts (Nominal) | |||||||||||
| Starter motor | kW | 3 | ||||||||||
| Battery Min. capacity recommended | Ah | 180 (12 Volts) | ||||||||||
| Quantity per battery bank | 2 | |||||||||||
| Battery Cold Cranking Amperes | @ -18⁰C | 950 | ||||||||||
| Charging Alternator Output | Amp. | 90 | ||||||||||
| Engine stop device build in fuel pump | Energized to Stop | |||||||||||
Advantage:
First-Class international technical standards
NM Fire is the only enterprise in China that obtained not only UL and FM certificates, but CCCF as well,also the first company in the world who was authorized by UL CCIC as witness testing center for both fire pumps and fire fighting engines.
NM fire obtained fire diesel engine UL1247 and fire pump UL448 witnessed laboratory accreditation,fully proved that the company in terms of hardware and software strength,are to meet the
strict requirements of UL certification.
Service:
| Pre-service |
| Introduce the product to the customer in detail,answer the question raised by customer carefully; |
| Sale service |
| 1. Ensure product with high quality and pre-commissioning before delivery; |
| 2. Delivery on time; |
| After-sale service |
| Provide considerate services to minimize clients’ worries. |
