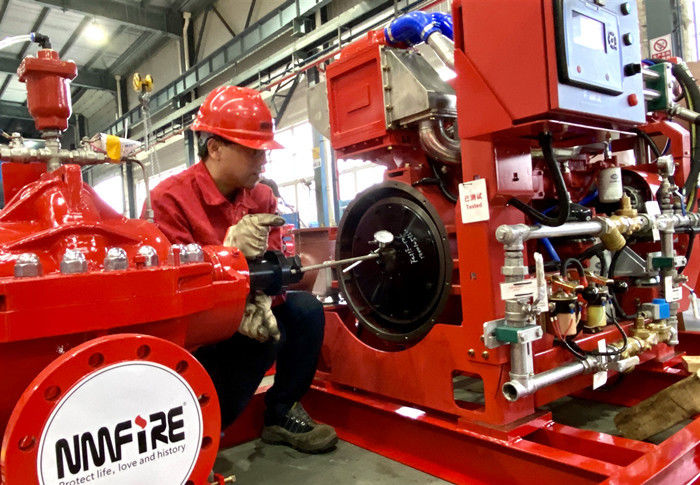

Red Professional Fire Pump Diesel Engine 144KW With Water Cold Cooling
| Place of Origin | China |
|---|---|
| Brand Name | CNP NM FIRE |
| Certification | UL/FM |
| Model Number | IF05BTIH-F |
| Minimum Order Quantity | 1set |
| Price | Negotiation |
| Packaging Details | Export Package |
| Delivery Time | 35-40 Working Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Red | Name | NM Fire |
|---|---|---|---|
| Model | IF05BTIH-F | Cooling | Water Cold |
| Fuel | Diesel | Power | 144kw |
| High Light | fire diesel engine,fire power engine |
||
Product Description
De Maas 144KW Fire Pump Diesel Engine For All kinds of Fire Pumps By UL/FM Aprroved
Since 1922, De Maas is known as reliable manufacturer and supplier of high quality engines to the industry.
Combining renowned base-products such as Doosan, lveco, JCB and Lister-Petter engines with the newest techniques, qualified employees and personal attention. This in combination with the highest manufacturing standards, the Dutch company De Maas offers reliable, customized fire pump engines all over the world for many years.
De Maas Firefighting Engines:
- Can answer worldwide and country specific demands for various specifications, including FM approval
- Are thoroughly tested and certified in our own testing facilities in The Netherlands
- Are manufactured with great accuracy and precision
- Are available in a power range of 49kw-652kw (FM Approved) and 53kw-724kw (non-approved)
- Have a proven record worldwide.
| General Engine Data | IF05BTIH-F | ||||||
| Type | 4 cycle, 4 Cylinder In Line, Water cooled | ||||||
| Aspiration |
Turbo charged, Intercooled |
||||||
| Cylinder Type | Replaceable | ||||||
| Bore x Stroke(mm) | 104 x 132 | ||||||
| Displacement(litre) | 4.483 | ||||||
| Compression Ratio | 17.5 : 1 | ||||||
| Valves per Cylinder | - Intake | 1 | |||||
| - Exhaust | 1 | ||||||
| Valve Timing | - Intake | Opening: 15⁰ BTDC - Close: 35⁰ ABDC | |||||
| - Exhaust | Opening: 69⁰ BBDC - Close: ATDC | ||||||
| Valves lashes at cold | - Intake | mm |
0.25 ±0.5 |
||||
| - Exhaust | mm |
0.5 ±0.5 |
|||||
| Combustion Type |
Direct Injection |
||||||
| Firing Order | 1 – 3 – 4 – 2 | ||||||
| Rotation | Counter Clockwise, viewed from flywheel | ||||||
| Dimension L x W x H (L=Construction Length) | ± mm |
977 x 955 x 1,537 |
|||||
| Engine Rating | 1,760 | 2,100 | 2,200 | 2,350 | 2,600 | 2,800 | 2,940 |
| IF05BTIH-F | kW | 144 | 144 | 144 |
| Fuel System | |||||||||||||||
| Injection Pump | StanaDyne Rotary Pump type | ||||||||||||||
| Governor | Fixed speed control | ||||||||||||||
| Fuel Lift Pump | Exclusive (Electric version as an Option) | ||||||||||||||
| Fuel Filter | Full flow, cartridge type | ||||||||||||||
| Used Fuel | Diesel fuel according EN 590 | ||||||||||||||
| Fuel consumption at Full Load Approx. | at 2,940 rpm | 266 | 228 | 220 | 247 | ||||||||||
| Fuel consumption information at other Revs. | See table no. | 03.400.06FCEN03 | |||||||||||||
| Standard Supply line Size | mm | 10 | |||||||||||||
| Standard Return line Size | mm | 10 | |||||||||||||
| Electrical System | 24 Volts (Nominal) | |||||||||||
| Starter motor | kW | 3 | ||||||||||
| Battery Min. capacity recommended | Ah | 180 (12 Volts) | ||||||||||
| Quantity per battery bank | 2 | |||||||||||
| Battery Cold Cranking Amperes | @ -18⁰C | 950 | ||||||||||
| Charging Alternator Output | Amp. | 90 | ||||||||||
| Engine stop device build in fuel pump | Energized to Stop | |||||||||||
Advantage:
First-Class international technical standards
NM Fire is the only enterprise in China that obtained not only UL and FM certificates, but CCCF as well,also the first company in the world who was authorized by UL CCIC as witness testing center for both fire pumps and fire fighting engines.
NM fire obtained fire diesel engine UL1247 and fire pump UL448 witnessed laboratory accreditation,fully proved that the company in terms of hardware and software strength,are to meet the
strict requirements of UL certification.
Service:
| Pre-service |
| Introduce the product to the customer in detail,answer the question raised by customer carefully; |
| Sale service |
| 1.Ensure product with high quality and pre-commissioning before delivery; |
| 2.Delivery on time |
| After-sale service |
| Provide considerate services to minimize clients’ worries. |
