Product Details
Place of Origin: China
Brand Name: CNP NM FIRE
Certification: NFPA20/UL/FM/EN12845/CCCF
Model Number: SCF125-80-350G (5x3")
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Packing
Delivery Time: 30-45 Working Days
Payment Terms: L/C, T/T
Certification:: |
UL/FM/NFPA20 |
Flow:: |
750GPM |
RPM: |
2980 (50Hz) |
Engine:: |
DE MAAS & NM Fire |
Control Panel:: |
Tornatech (UL/FM) |
Head: |
180PSI |
Certification:: |
UL/FM/NFPA20 |
Flow:: |
750GPM |
RPM: |
2980 (50Hz) |
Engine:: |
DE MAAS & NM Fire |
Control Panel:: |
Tornatech (UL/FM) |
Head: |
180PSI |

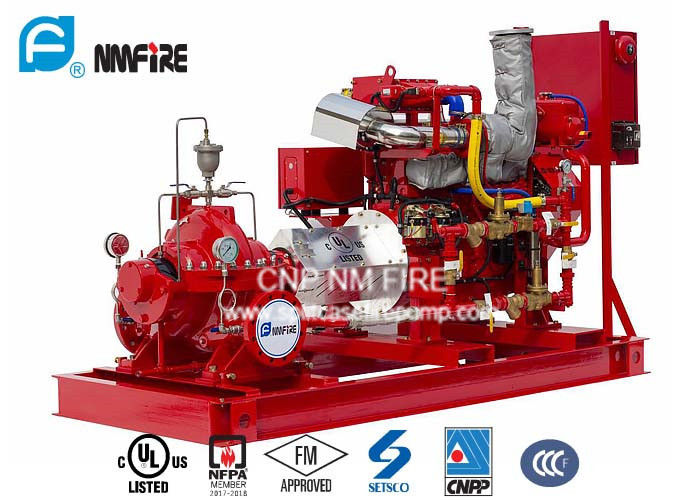

750GPM @ 180PSI UL/FM Listed Diesel Engine Drive Fire Pump With Split case Fire Pump
Parameters:
HEAD | PUMP MODEL | SPEED | MAX SHAFT POWER | DIESEL ENGINE DRIVER | ||||||||
PSI | FEET | METER | RPM | HP | KW |
MODEL
(NM&UL) |
HP | KW |
MODEL (DE
MAAS&FM) |
HP | KW | |
180 | 416 | 127 | SCF125-80-350G (5x3") |
2980 (50Hz) |
148 | 110.3 | NM6-102B | 153 | 114 | IF05ATiH-F | 177 | 132 |
Performance Ranges:
UL:
|
Q: 500-4000GPM | H:100-190PSI |
FM:
|
Q: 500-4000GPM | H:100-190PSI |
CCCF:
|
Q:20-500L/S | H:0.42-2.0Mpa |
NFPA20:
|
Q: 300-8000GPM | H:60-300PSI |
Precision balancing of all factors in the design of CNP NMFIRE horizontal split case fire pump provide mechanical dependability, efficient operation and minimal maintenance. Simplicity of design ensures long efficient unit life, reduced maintenance costs and minimum power consumption.
Product Type:
Diesel engine driven fire pump sets with air cooling & water cooling
NFPA20 Package
Advantage:
NM fire obtained fire diesel engine UL1247 and fire pump UL448 witnessed laboratory accreditation,fully proved that the company in terms of hardware and software strength,are to meet the strict requirements of UL certification.
