Product Details
Place of Origin: China
Brand Name: CNP NM FIRE
Certification: NFPA20/UL/FM/EN12845/CCCF
Model Number: SCF200-125-380 （8x5")
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Packing
Delivery Time: 30-45 Working Days
Payment Terms: L/C, T/T
Certification:: |
UL/FM/NFPA20 |
Flow:: |
1250GPM |
RPM: |
2980 (50Hz) |
Engine:: |
DE MAAS & NM Fire |
Control Panel:: |
Tornatech (UL/FM) |
Head: |
190PSI |
Certification:: |
UL/FM/NFPA20 |
Flow:: |
1250GPM |
RPM: |
2980 (50Hz) |
Engine:: |
DE MAAS & NM Fire |
Control Panel:: |
Tornatech (UL/FM) |
Head: |
190PSI |

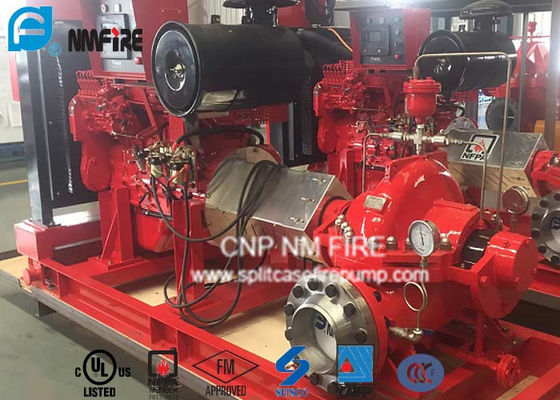

Horizontal Centrifugal Diesel Engine Drive Fire Pump With Split case Fire Pump By 1250GPM @ 190PSI UL/FM Approval
Parameters:
| HEAD | PUMP MODEL | SPEED | MAX SHAFT POWER | DIESEL ENGINE DRIVER | ||||||||
| PSI | FEET | METER | RPM | HP | KW | MODEL(NM&UL) | HP | KW | MODEL (DE MAAS&FM) | HP | KW | |
| 190 | 439 | 134 | SCF200-125-300 (8x5") |
2980 (50Hz) |
303 | 225.7 | NM6-104B | 301 | 224 | IF07CTiH-F | 301 | 224 |
Performance Ranges:
|
UL:
|
Q: 500-4000GPM | H:100-190PSI |
|
FM:
|
Q: 500-4000GPM | H:100-190PSI |
|
CCCF:
|
Q:20-500L/S | H:0.42-2.0Mpa |
|
NFPA20:
|
Q: 300-8000GPM | H:60-300PSI |
Application:
The split case pump has both the discharge and suction connections in the lower half of the pump casing, in an opposing configuration to each other. The pump’s impeller is normally mounted on a shaft that is supported by bearings on two sides.
Industrial fields: All petroleum, petrochemical, chemical, oil fields, pipelines bureaus, oil repositories, oil terminals, oil refineries, offshore platforms, etc.; National grain storages, thermal power plants, steel plants, shipyards, paper mills, etc.;
Commercial Field: five-star hotels, hospitals, schools, supermarkets, office buildings, large-scale commercial complex, highway tunnels, subway stations, railway stations, airports; Fire-fighting Engineering Companies;
Special material for sea water pumping is available: Casing , impeller ,shaft ,shaft sleeve, wear ring—SS2205, Seal—Gland packing, Bearing—SKF
Product Type:
Diesel engine driven fire pump sets with air cooling & water cooling
NFPA20 Package
Advantage:
First-Class international technical standards.
CNP NM FIRE is the first member of NFPA from China pump's manufacturers.and won the UL,FM international fire certification for fire pump products.
Service:
| 1. Any inquiries will be replied within 24 hours. |
| 2. Dedicated to high quality, stable supply and considerate service. |
| 3. Strict on raw material selection. |
| 4. Reasonable & competitive prices with short lead time. |
