NFPA20 2000GPM Diesel Engine Centrifugal UL FM Approved Fire Pumps

Place of Origin China
Brand Name NM FIRE
Certification UL /FM/Non-listed/NFPA20
Model Number Split Case Pump
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 60 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Standards NFPA20, UL, FM Non-listed Color Red
Controller Tornatech/Eaton (UL/FM/Non-listed Categories FIRE FIGHTING PRODUCTS, FIRE PUMP GROUP
Capacity 2000GPM Appllication FIre Fighting
High Light

Centrifugal UL FM Approved Fire Pumps


NFPA20 UL FM Approved Fire Pumps


2000GPM Diesel Engine Centrifugal Pump

Leave a Message
Product Description

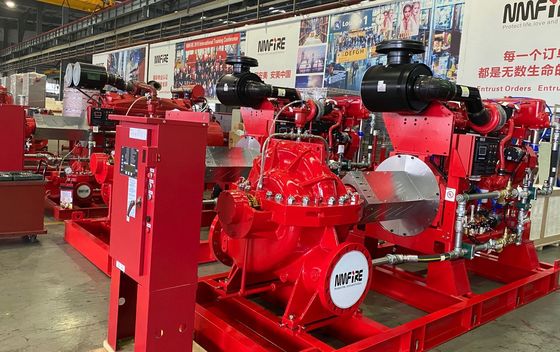

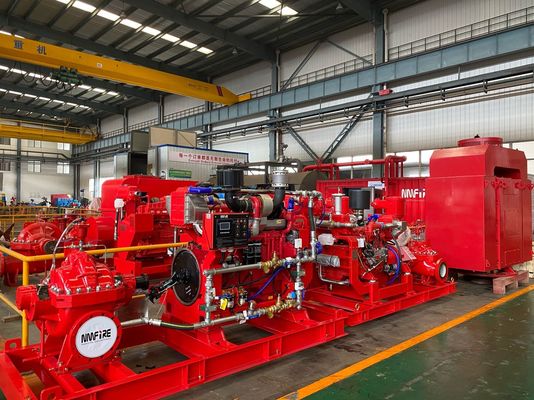

  • 2000gpm UL/FM Fire Pumps Diesel Engine Fire Pump Centrifugal Split Case Fire Pump NFPA20


Model: SCF200-150-330
Flow(GPM): 2000
Head(PSI): 107-190PSI
Type: Centrifugal fire pump-Split Case
Flange ratling Class 250 ,RF

Diesel Engine
Pump Set
( Heat Exchanger)
Q= 2000usgpm H=171psi n=2950 rpm

Casing---Ductile Cast iron
Shaft--- AISI 4340
Shaft sleeve---SS304
Seal------ Gland packing
Wear ring----Bronze
Engine: NM FIRE(UL)
Model: NM6-108E
335HP at 2950rpm
Controller : Tornatech(UL/FM)
Model: GPD-24-120/220
Flowmeter (FM)(Grooved pipe)
Fuel tank Newberry Tanks(UL)
Main relief valve CLA-VAL(UL@FM)
Model:2050B-4KG1 6"(100-300psi)
Waste cone Model:6"-10"

NFPA20 2000GPM Diesel Engine Centrifugal UL FM Approved Fire Pumps 0


NFPA20, UL, FM, EN12845,CCCF

CNP Pump Performance Ranges


Q: 100-750GPM H:70-152PSI


Q: 100-750GPM H:70-152PSI


Q:15-45L/S H:0.6-0.9Mpa


Q: 100-3000GPM H:40-200PSI




There is no shortcut to achievement, only gates that are opened by persistence.
NMFIRE keep moving forward to success worldwide.

NFPA20 2000GPM Diesel Engine Centrifugal UL FM Approved Fire Pumps 1


Value Added Systems
• 3D design built in a NFAP20 engineering environment with the highest quality
• All main components are UL/FM Listed and Approved products
• Complete system is pressure tested prior to shipment to eliminate on-site leaks
• All interior piping and electrical connections are complete
• Factory assembly and testing eliminates the need for on-site assembly
• Enclosure floor is coated
• Superstructure design supports the system piping, exhaust piping and electrical components from the roof, allowing for more open floor space
• Wall insulation reduces environment noise
• Includes all auxiliary systems prescribed by NFPA20 including:
• Heating • Lighting • Sprinklers • Ventilation • Drainage
NFPA20 2000GPM Diesel Engine Centrifugal UL FM Approved Fire Pumps 2









Large hotels, hospitals , schools,office buildings,supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises,offshore platform(Pump material:Discharge head, Column pipe, shaft, impeller, suction bell—SS2205, Seal—Gland packing ,Guide bearing—Thordon) etc.
