UL FM NFPA20 Containerized Fire Fighting Pump Sets

Place of Origin China
Brand Name NM FIRE
Certification UL /FM/Non-listed/NFPA20
Model Number Single electric, Single diesel, 1 Electric and 1 Diesel, 2 Electric, 2 Diesel configurations are available
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 60 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Standards NFPA20, UL, FM Non-listed Color Red
Controller Tornatech/Eaton (UL/FM/Non-listed Categories FIRE FIGHTING PRODUCTS, FIRE PUMP GROUP
High Light

Containerized Fire Fighting Pump Sets


NFPA20 Fire Fighting Pump Sets


Containerized Fire Pump Group

Leave a Message
Product Description
  • NFPA20 Containerised Fire-Fighting Pump Sets FIRE FIGHTING PRODUCTS FIRE PUMP GROUP UL/FM Products


NFPA20, UL, FM, EN12845,CCCF

Performance Ranges


Q: 100-750GPM H:70-152PSI


Q: 100-750GPM H:70-152PSI


Q:15-45L/S H:0.6-0.9Mpa


Q: 100-3000GPM H:40-200PSI



Wide Range of Products;

All the main parts are UL/FM products;

The full ranges of NMFIRE fire solutions available includes horizontal split case, end suction, vertical turbine

and in-line pumps;

Single electric, Single diesel, 1 Electric and 1 Diesel, 2 Electric, 2 Diesel configurations are available.

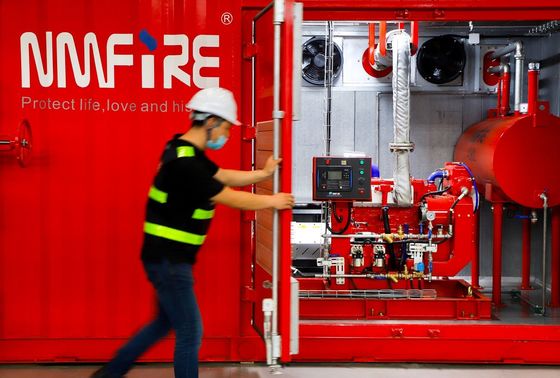

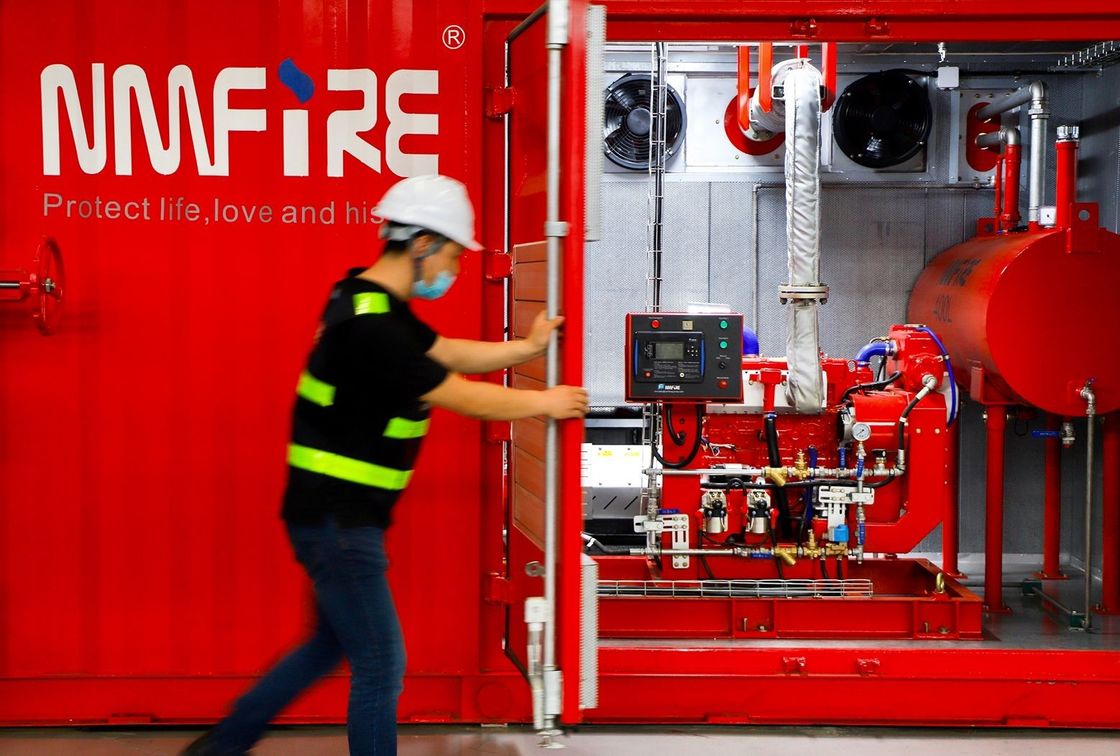

NMFIRE Factory-Built Containerized Pump Rooms combine a complete fire pump system, suction and discharge piping, electrical and exhaust components, all housed in a specially designed container. Pump Rooms are designed, built and tested in a controlled ISO9001:2015 factory environment and shipped to the job-site ready for immediate installation. The system piping and electrical connections are ready for immediate hook-up which significantly reduces on-site labor and shortens construction project timelines.

UL FM NFPA20 Containerized Fire Fighting Pump Sets 0


Value Added Systems
• 3D design built in a NFAP20 engineering environment with the highest quality
• All main components are UL/FM Listed and Approved products
• Complete system is pressure tested prior to shipment to eliminate on-site leaks
• All interior piping and electrical connections are complete
• Factory assembly and testing eliminates the need for on-site assembly
• Enclosure floor is coated
• Superstructure design supports the system piping, exhaust piping and electrical components from the roof, allowing for more open floor space
• Wall insulation reduces environment noise
• Includes all auxiliary systems prescribed by NFPA20 including:
• Heating • Lighting • Sprinklers • Ventilation • Drainage
UL FM NFPA20 Containerized Fire Fighting Pump Sets 1


UL FM NFPA20 Containerized Fire Fighting Pump Sets 2







Large hotels, hospitals , schools,office buildings,supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises,offshore platform(Pump material:Discharge head, Column pipe, shaft, impeller, suction bell—SS2205, Seal—Gland packing ,Guide bearing—Thordon) etc.
