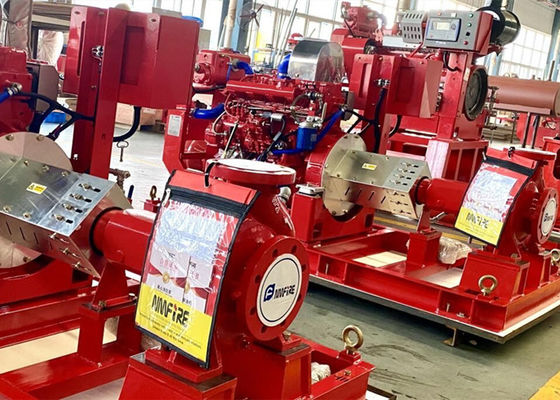

128PSI 1250GPM Diesel Engine Driven Centrifugal Pump

Place of Origin China
Brand Name CNP NM FIRE
Certification NFPA20/UL/FM/EN12845/ CE
Model Number SCF200-150-250
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Standard Export Packing
Delivery Time 75 working days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification UL/FM/NFPA20 Flow 1250 GPM
Casing: Ductile Cast Iron Engine NM Fire Fire Engine
Head 128 PSI
High Light

1250GPM Diesel Engine Driven Centrifugal Pump

,

128PSI Diesel Engine Driven Centrifugal Pump

,

NM Fire diesel powered fire pump

Leave a Message
Product Description

1250 GPM Diesel Engine Driven Centrifugal Pump UL Listed FM Approved





Configurations:



Pump NM FIRE Split Case
Model SCF200-150-250 (8X6”) UL/FM
Impeller SS304
Shaft AISI 4340
Seal Gland packing
Wear ring Bronze
Bearing SKF
Diesel Engine NM Fire Fire Engine
Model NM6-110B UL listed





Application:



The split case pump is available in various designs and manufactured from different materials to suit a wide range of applications. Major components in the pump such as, impellers, casings, wear rings, and shafts can be offered by manufacturers in various materials to suit the fluid hat is being pumped and the site environment conditions.



Large hotels, hospitals , schools,office buildings,supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises, etc.



Product Performance Curve:



128PSI 1250GPM Diesel Engine Driven Centrifugal Pump 0





Advantage:



First-Class international technical standards



NM Fire is the first member of NFPA from Chinese pump manufacturers .



We are the only enterprise in China that obtained not only UL and FM certificates, but CCCF as well,also the first company in the world who was authorized by UL CCIC as witness testing center for both fire pumps and fire fighting engines.



NM fire obtained fire diesel engine UL1247 and fire pump UL448 witnessed laboratory accreditation,fully proved that the company in terms of hardware and software strength,are to meet the

strict requirements of UL certification.
