Horizontal Split Case Centrifugal Pump SS Red Diesel Engine Fire Pump For Fire Fighting System UL FM NFPA20

Place of Origin China
Brand Name CNP NM FIRE
Certification UL /FM
Model Number SCF125-100-300(UL/FM)
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 60 Days
Payment Terms L/C, T/T
Product Details
Engine NM&UL Capacity 400GPM
Controller Tornatech (UL/FM) RPM 2980
Casing Ductile Cast Iron Impeller SS304
High Light

diesel driven fire pump

,

diesel powered fire pump

Leave a Message
Product Description
  • 00GPM 190PSI Split Case Horizontal Centrifugal Pump NM Fire Fire Fighting Pump Set UL FM NFPA20

  • Product Details

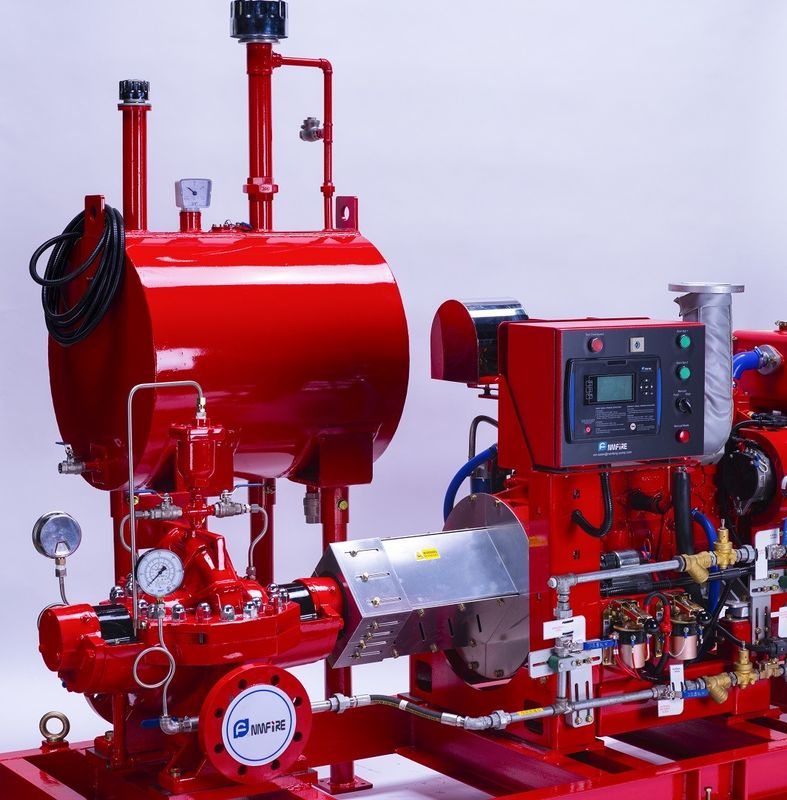

Diesel Engine Pump Set( Heat Exchanger)
NM Fire Split Case Pump
ModelSCF125-100-300(UL/FM)This Diesel Engine Group includes the pump(air relieve valve, inlet & outlet gauges) Diesel Engine, Commonbase, Flexible exhaust connector, Control System, Battery, Silencer, Coupling (non-listed), Cooling System.
Please contact me if you need a Fuel tank, Main relief valve, Waste corn, or other accessories.
Capacity400GPM
Head190PSI
RPM2980rpm
Material:
CasingDuctile Cast iron
ImpellerSS304
ShaftAISI 4340
Shaft sleeveSS304
SealGland packing
Wear ringBronze
BearingSKF
Engine: NM&UL
Model:NM4-108B
 121HP at 2980rpm
Controller: Tornatech (UL/FM)
Model:GPD-24-220/240



Horizontal Split Case Centrifugal Pump SS Red Diesel Engine Fire Pump For Fire Fighting System UL FM NFPA20 0




  • Application

All petroleum, petrochemical, chemical, military and naval institutes, oil fields of Petro China, Sinopec, CNOOC, pipelines Bureaus, oil repositories, oil terminals, construction companies, oil refineries, offshore platforms, etc.
Fire-fighting Engineering Companies, airports, highway tunnels, hotels, hospitals, supermarkets, office buildings, national grain storage, thermal power plants, shipyards, paper mills, subway stations, railway stations, etc.
Steel plants, residential regions, industrial and mining enterprises, house building materials supermarkets, etc.





  • Five Advantages of CNP NM FIRE

①The late-mover advantage of products, is we R&D better fire products than other Suppliers;

②Have the most complete and all series of fire pump models;

③Have listed diesel engines with a self-owned brand--- NM FIRE;

④Understand the technology of fire-fighting products and fire-fighting system better than other competitors and have better services;

⑤Shorter delivery time.


Horizontal Split Case Centrifugal Pump SS Red Diesel Engine Fire Pump For Fire Fighting System UL FM NFPA20 1





  • About NM FIRE

CNP NM Fire-fighting System Co., Ltd(Hereinafter referred to as NM Fire)is the subsidiary of Nanfang Zhongjin Environment Co., Ltd, NM Fire is located in Hunan Changsha Economic and Technological Development Zone, mainly produce and sell Diesel engine &Motor fire pump groups, controllers and fire pumps which are in accordance with domestic & international standards and have gotten related certifications. NM Fire is a member enterprise of NFPA, the technical team consists of a number of engineers and foreign experts who have more than 20 years of experience in research and development for global fire-fighting equipment. There are several models that have gotten UL, FM(America), APSAD(France), Sets(Singapore)certificates.
The company’s mission is to protect the community fire safety, in line with the spirits of “integrity, win-win”, glad to provide high cost-effective products and high-quality service for our customers.
Horizontal Split Case Centrifugal Pump SS Red Diesel Engine Fire Pump For Fire Fighting System UL FM NFPA20 2





  • FAQ



Q1.Do you have the UL-LISTED Fire Pump Sets?

Yes, We have the UL/FM and NFPA standard Fire Pump Sets.



Q2.I need your motor drive End-suction/Split-casing fire pump, what information should I sent to you?

Sir/Madam, you can provide the Capacity, Heed, Voltage, and Frequency, we will make the quotation for you, If you need a Jockey Pump or other accessories, please tell us together.



Q3.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information should I send to you?

You can send the Capacity Heed, Temperature, and Altitude (temperature and altitude will affect the performance of diesel engines). If you need a Jockey Pump or other accessories, please tell us the Voltage and Frequency or accessories together.

Q4.I need the UL/FM Vertical Turbine Fire Pump Set, please sent me the price.



For the motor Diver Vertical Turbine Fire Pump Set: you should give us the Capacity, Heed, Voltage Frequency, and the tank deep.

For the Diesel Engine Drive Vertical Turbine Fire Pump Set: you should give us the Capacity, Heed, and the tank deep.

If you need a Jockey Pump or other accessories, please tell us together.





  • Service

1. Reply within 24 hours.
2. High-quality products and the most reasonable price
3. Data and chemical technology support.

Horizontal Split Case Centrifugal Pump SS Red Diesel Engine Fire Pump For Fire Fighting System UL FM NFPA20 3
