Multi Functional Diesel Engine Driven Fire Pump For Large Scale Commercial Complex

Place of Origin China
Brand Name CNP NM FIRE
Certification UL Listed
Model Number ESF65/26
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 60 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CAPACITY 1000GPM HEAD 140PSI
Driving Mode Diesel Engine Driven Controller Eaton (UL/FM)
RATED FLOW 227M3/H Color Red
High Light

diesel driven fire pump

,

diesel powered fire pump

Leave a Message
Product Description
  • 1000usGPM@140PSI diesel DRIVER SPLIT CASE Pump set​
  • Product Details



Diesel Engine Pump Set( Heat Exchanger)

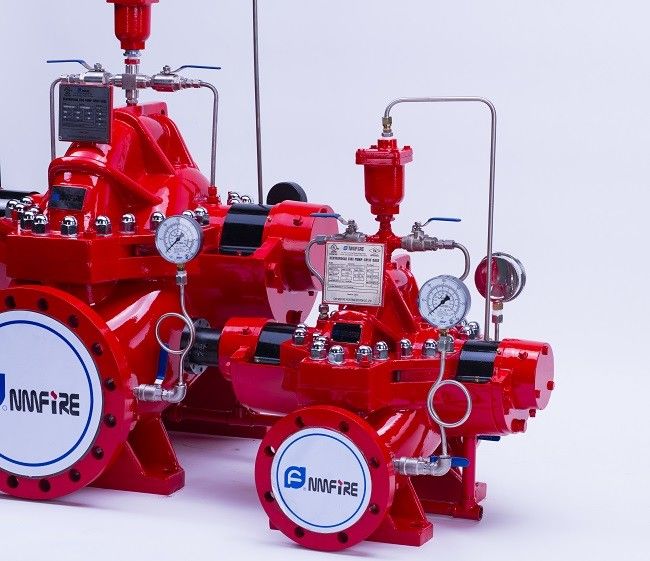

NM Fire Split Case Pump
Model SCF150-100-320 This Diesel Engine Group includes the pump(air relieve vlave , inlet & outlet gauges) Diesel Engine, Commonbase, Flexible exhaust connector, Control System, Battery, Silencer, Coupling (non-listed), Cooling System.


Please contact me if you need Fuel tank, Main relief valve,Waste corn or other accessories.
Capacity 1000GPM
Head 145PSI
RPM 2980rpm
Material:
Casing Ductile Cast iron
Impeller SS304
Shaft AISI 4340
Shaft sleeve SS304
Seal Gland packing
Wear ring Bronze
Bearing SKF
Engine: NM&UL
Model: NM6-102B/2980rpm
Controller ::Eaton (UL/FM)
Model: FD120-L1


The above models are used for 1000usGPM@140PSI diesel DRIVER SPLIT CASE Pump set

Please contact us if you have any other requirements.

Thanks

  • CERTIFICATE

Multi Functional Diesel Engine Driven Fire Pump For Large Scale Commercial Complex 0



Multi Functional Diesel Engine Driven Fire Pump For Large Scale Commercial Complex 1





  • Application:


Industrial fields: All petroleum, petrochemical, chemical, oil fields, pipelines bureaus, oil repositories, oil terminals, oil refineries, offshore platforms, etc.; National grain storages, thermal power plants, steel plants, shipyards, paper mills, etc.;
Commercial Field: five-star hotels, hospitals, schools, supermarkets, office buildings, large-scale commercial complex, highway tunnels, subway stations, railway stations, airports; Fire-fighting Engineering Companies;



Please note :the pump will be not sold individual,it must be match with engine or electric motor driver.



  • History of CNP and NM Fire:



Multi Functional Diesel Engine Driven Fire Pump For Large Scale Commercial Complex 2

CNP was founded more than 25 years,At the beginning, CNP focused on the research and development of stamping and welding stainless steel centrifugal pumps.

Now CNP is the second largest manufacturer on the stainless steel centrifugal pump in the world.

CNP Headquarter :300,000 m2

Over 30 Subsidiaries

More than 5000 staffs









The subsidiary corporations is as follows:

Manufacturing
Environmental protection
•NANFANG PUMP INDUSTRY CO., LTD.
•HANGZHOU NANBENG ENERGY-SAVING TECHNOLOGY Co. Ltd
•HUZHOU NANFENG MACHINARY MANUFACTURING Co. Ltd
•CNP CHANGSHA Co., Ltd.
•CNP NM FIRE FIGHTING SYSTEM CO.,LTD
•HANGZHOU CNP-TSURUMI PUMP CO.,LTD
•HANGZHOU HOWELL FLOW Co., Ltd.
•NANFANG INDUSTRY PTE. LTD.
•TIGERFLOW SYSTEM LLC
JINSHAN ENVIROMENTPROTECTION SCIENCE and TECHNOLOGY CO.,LTD
BEIJING ZHONGZIHUAYU ENVIRONMENTAL TECHNOLOGY CO.,LTD



CNP and NM Fire set up a cooperative enterprise in October,2013. introducing some experienced talents with international first-class technical level. The designation and production of the products are strictly consistent with requirements of international certificates,for changing the backward conditions in domestic market.



NM Fire is the first member of NFPA from Chinese pump manufacturers. In March of 2017, it became the first enterprise of China to have both UL & FM two international certification of fire pumps. In September the same year, NM Fire again became the China’s first enterprise to have UL certificate for diesel fire engine. Currently, only 3 or 4 companies in the world have obtained fire engine certification. NM Fire is also the first company in the world to have both UL Listed fire pumps and fire engines. This series of achievements will completely break the long-term monopoly situation of fire products by European and American brand, which speed up the pace of Chinese enterprises to go overseas.

Multi Functional Diesel Engine Driven Fire Pump For Large Scale Commercial Complex 3



As the first Chinese member of NFPA, NM Fire has a strong technical team with more than 20 years’ global fire equipment R & D experience, including a number of foreign engineers and experts. NM Fire became the first company in the world to have both UL Listed fire pumps and fire engines, which consisted of the NM Fire Team’s 5 years’ hard work and huge investment by enterprise.
This series of historical breakthrough results play a very important role in enhancing the technical level of China’s fire industry and effectively protect national life and property. This is also the primary goal we pursue.

  • Product Model Chart

End suction Pump Model Chart



Rated Capacity PUMP MODEL(UL) Rated Net Pressure Range, Approx. Speed, Impeller Diameter, mm.
GPM (US) PSI RPM Max Min
50 ESF40/20 76-111 2980 225 190
50 ESF40/20 108-157 3550 225 190
100 ESF40/20 72-109 2980 225 190
100 ESF40/26 100-138 2980 264 225
200 ESF50/20 72-99 2980 225 195
200 ESF50/20 102-142 3550 225 195
200 ESF50/26 105-140 2980 264 230
250 ESF50/20 69-99 2980 225 195
250 ESF50/20 101-141 3550 225 195
250 ESF50/26 99-136 2980 264 230
250 ESF65/20 113-152 3550 225 195
250 ESF65/20 86-107 2980 225 210
250 ESF65/26 119-147 2980 264 245
300 ESF65/20 112-152 3550 225 195
300 ESF65/20 86-107 2980 225 210
300 ESF65/26 119-147 2980 264 245
400 ESF65/20 108-150 3550 225 195
400 ESF65/20 83-104 2980 225 210
400 ESF65/26 119-141 2980 264 245
450 ESF65/20 105-148 3550 225 195
450 ESF65/20 80-102 2980 225 210
450 ESF65/26 114-138 2980 264 245
500 ESF65/20 101-145 3550 225 195
500 ESF65/20 77-99 2980 225 210
500 ESF65/26 111-135 2980 264 245
500 ESF80/20 90-100 2980 225 210
500 ESF80/20 129-142 3550 225 210
500 ESF80/26 116-138 2980 264 245
750 ESF80/20 87-98 2980 225 210
750 ESF80/20 127-142 3550 225 210



Split casing Pump Model Chart



Rated Capacity Model
Designation
Rated Net Pressure Range, Approx. Speed, Maximum Working Pressure, Impeller Diameter, mm.
GPM (US) PSI RPM PSI Max Min
300 SCF125-100-300 123-195 2980 400 315 250
400 SCF125-100-300 120-189 2980 400 315 250
400 SCF125-100-300 173-274 3550 400 315 250
450 SCF125-100-300 119-187 2980 400 315 250
450 SCF125-100-300 172-272 3550 400 315 250
500 SCF125-100-300 117-184 2980 400 315 260
500 SCF125-100-300 170-269 3550 400 315 260
750 SCF125-100-300 104-163 2980 400 315 260
750 SCF125-100-300 157-247 3550 400 315 260
750 SCF125-80-350G 169-251 2980 261 330 280
750 SCF150-100-320 138-198 2980 202 300 255
1000 SCF150-100-320 130-191 2980 202 300 240
1000 SCF200-150-310 119-237 2980 350 335 240
1000 SCF200-150-310 175-253 3550 350 290 240
1250 SCF200-125-300 116-190 2980 187 300 240
1250 SCF200-125-380 118-177 2200 261 385 325
1250 SCF200-150-310 112-230 2980 350 335 240
1250 SCF200-150-310 168-247 3550 350 290 240
1500 SCF200-150-310 158-236 3550 350 290 240
1500 SCF200-150-460 115-181 1800 275 460 380
2000 SCF200-150-460 118-175 1800 275 460 395
2000 SCF250-200-350 123-239 2980 362 360 260
2500 SCF250-200-350 114-227 2980 362 360 260
2500 SCF250-200-430 138 1800 275 425 n/a
2500 SCF250-200-430 125-190 2100 275 425 360
3000 SCF250-200-430 144-187 2100 275 425 390
3500 SCF300-250-490 119-189 1800 290 490 410
4000 SCF300-250-490 114-185 1800 290 490 410
4500 SCF300-250-490 153-181 1800 290 490 460
4500 SCF400-350-640 129-196 1480 315 655 540
5000 SCF400-350-640 127-194 1480 315 655 540
5500 SCF400-350-640 124-192 1480 315 655 540
6000 SCF400-350-640 120-190 1480 315 655 540
6500 SCF400-350-640 116-186 1480 315 655 540
7000 SCF400-350-640 113-182 1480 315 655 540
7500 SCF400-350-640 109-179 1480 315 655 540



Centrifugal Fire Pumps Vertical Tubine Model Chart



Rated Capacity gpm  Model Dsg Rated Net Pressure Range psi Approx Speed rpm Stages
1250 250VTP400-28 41-51 1480 1
82-102 2
124-153 3
165-305 4-6
1500 40-49 1
77-97 2
115-292 3-6
1500 58-71 1760 1
115-143 2
173-214 3
230-285 4
2000 63 1
125 2
188 3
251 4
2000 250VTP550-26 40-44 1480 1
77-88 2
116-132 3
155-176 4
194-264 5-6
2000 57-66 1760 1
113-133 2
170-199 3
227-266 4
2500 61 1760 1
123 2
184 3
245 4
2500 300VTP860-43 50-82 1480 1
100-245 2-3
3000 53-78 1
105-235 2
2500 350VTP860-43 74-118 1760 1
149-236 2
3000 69-115 1
139-230 2
3500 73-111 1
146-222 2
4000 104 1
207 2



In addition to the above models, there are many model UL/FM testing in process.

Looking forward to your enquiry.

  • Five Advantages of CNP NM FIRE

  •

    ①The late-mover advantage of products, we R&D better fire products than other Suppliers;


    ②Have the most complete and all series of fire pump models;


    ③Have listed diesel engines with self-owned brand--- NM FIRE;


    ④Understand the technology of fire- fighting products and fire- fighting system better than other competitors and have better services;


    ⑤Shorter delivery time.
  •



    FAQ





    Q1.Do you have the UL-LISTED Fire Pump Sets?

    Yes, We have the UL/FM and NFPA standard Fire Pump Sets.


    Q2.I need your motor drive End-suction/Split-casing fire pump, what information shold I sent to you ?

    Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together.


    Q3.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ?

    You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together.


    Q4.I need the UL/FM Vertical Tubine Fire Pump Set ,please sent me the price.

    For the motor Diver Vertical Tubine Fire Pump Set: you shoul give us the Capacity, Heed, Voltage Frequncy and the tank deep.

    For the Diesel Engine Drive Vertical Tubine Fire Pump Set:you should give us the Capacity, Heed and the tank deep.

    If you need Jockey Pump or other accessories,please tell us together.
