Red Color Diesel Engine Fire Pump / Fire Fighting Pumps 1500gpm @ 125-135PSI
| Place of Origin | China |
|---|---|
| Brand Name | CNP NM FIRE |
| Certification | NFPA20/UL/FM/EN12845/CCCF |
| Model Number | SCF200-150-460 （8x6") |
| Minimum Order Quantity | 1set |
| Price | Negotiation |
| Packaging Details | Export Packing |
| Delivery Time | 75Working Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | UL/FM/NFPA20 | Flow | 341m³/h |
|---|---|---|---|
| Engine | NM FIRE/DEMAAS | Color | Red |
| Head | 125-135PSI | Materials | Ductile Cast Iron |
| High Light | diesel driven fire pump,diesel powered fire pump |
||
Product Description

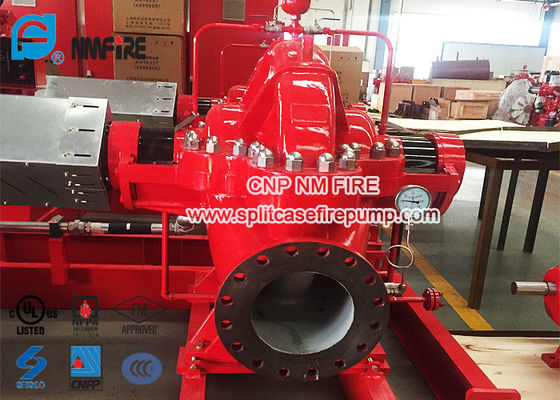

Red Color Diesel Engine Fire Pump / Fire Fighting Pumps 1500gpm @ 125-135PSI
split case fire pumps that meet NFPA standards , as well as being UL listed, FM approved. Fire pump sets are available with electric motor and diesel engine driver. Every pump is subjected to a thorough inspection and a series of tests to ensure that it meets the required specifications before leaving the factory.
KEY FEATURES
- Complete compact unit
- Horizontal
- Tailored to the customer's required standards and specifications
- Configuration for NFPA20 / FM / UL up to 4000 US gpm
- Good suction characteristics, also with higher speeds
- Practically no limitations on flow
- Less wear and tear influences
- Easy maintenance without interfering on piping / driver
- Select Models Available in alternate materials with FM approval
Parameters:
| HEAD | PUMP MODEL | SPEED | MAX SHAFT POWER | DIESEL ENGINE DRIVER | ||||||||
| PSI | FEET | METER | RPM | HP | KW | NMFIRE-UL | HP | KW | DE MAAS-FM | HP | KW | |
| 125 | 288 | 88 | SCF200-150-460 (8x6") |
1800 (60HZ) |
253 | 188.5 | NM6-114 | 255 | 190 | DF12TiH-F | 338 | 252 |
| 130 | 300 | 91 | 264 | 196.7 | ||||||||
| 135 | 311 | 95 | 275 | 204.9 | ||||||||
Product Type:
Diesel Engine Driven firefighting pump sets
NFPA20 Package
Advantage:
First-Class international technical standards
First-Class testing and inspection equipment.
NM Fire is the first member of NFPA from Chinese pump manufacturers .
We are the only enterprise in China that obtained not only UL and FM certificates, but CCCF as well,also the first company in the world who was authorized by UL CCIC as witness testing center for both fire pumps and fire fighting engines.
UL certification represents the world's highest technical standards of fire certification,but also means that certified fire products must withstand the most extreme,harsh test process,the purpose of certification designed to verify whether the product meets the performance,safety and quality requirements,so as to achieve the purpose of property protection.
