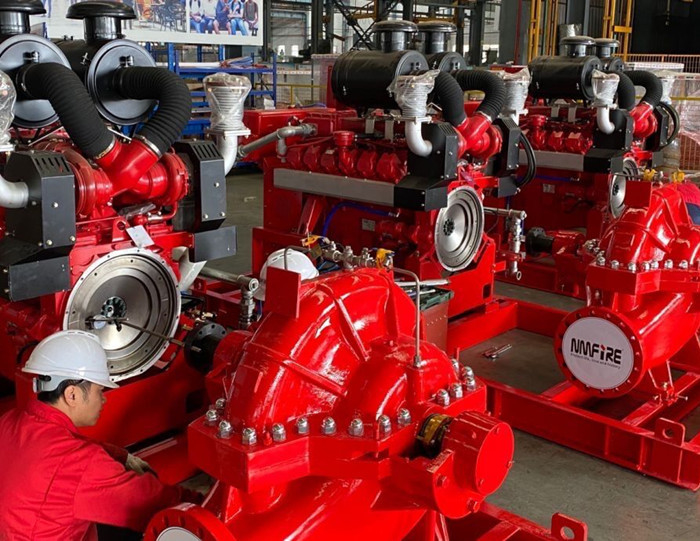

High Precision Diesel Engine Driven Fire Pump 1000 Gpm @ 70m Schools Use

Place of Origin China
Brand Name CNP NM FIRE
Certification NFPA20/UL/FM/EN12845/CCCF
Model Number SCF150-100-320(UL/FM)
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Standard Export Packing
Delivery Time 45~60 Working Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification UL/FM/NFPA20 Casing: Ductile Cast Iron
Engine NM Fire Head 70m
Flow 1000gpm Color Red
Leave a Message
Product Description

UL/FM Listed Diesel Engine Drive Fire Pump With 1000gpm @ 70m Horizontal Split case Pump





Pump: Split Case Pump
Model: SCF150-100-320(UL/FM)
Q= 1000usgpm H=70m n=2980rpm

Material:
Casing---Ductile Cast iron
Impeller---SS304
Shaft--- AISI 4340
Shaft sleeve---SS304
Seal------ Gland packing
Wear ring----Bronze
Bearing---SKF



Engine: DE MAAS (FM )
Model:IF05ATH-F
98kw at 2940rpm



Control Panel: Tornatech (UL/FM)
Model: GPD-24-220



Horizontal Split Case
The protection of life is not a matter for compromise
This is particularly true for fire protection systems where they are only as strong as their 'weakest link' and compromise may result in avoidable loss of life or property. That is why NM fire pumps are designed specifically for the very particular needs of fire protection and are approved by most of the major fire protection bodies around the world. By selecting an approved NM Fire Pump as part of an approved system and maintained in accordance with standards such as NFPA 20, you can sleep easy knowing that you have chosen the best you can get.





Performance Ranges:





UL:



 Q: 500-4000GPM  H:100-190PSI



FM:



 Q: 500-4000GPM  H:100-190PSI



CCCF:



 Q:20-500L/S  H:0.42-2.0Mpa



NFPA20:



 Q: 300-8000GPM  H:60-300PSI





Application:

The split case pump is available in various designs and manufactured from different materials to suit a wide range of applications. Major components in the pump such as, impellers, casings, wear rings, and shafts can be offered by manufacturers in various materials to suit the fluid hat is being pumped and the site environment conditions.



Large hotels, hospitals , schools,office buildings,supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises, etc.





Product Type:



Diesel engine driven fire pump sets with air cooling & water cooling



NFPA20 Package





Advantage:



First-Class international technical standards



NM Fire is the first member of NFPA from Chinese pump manufacturers .



We are the only enterprise in China that obtained not only UL and FM certificates, but CCCF as well,also the first company in the world who was authorized by UL CCIC as witness testing center for both fire pumps and fire fighting engines.



NM fire obtained fire diesel engine UL1247 and fire pump UL448 witnessed laboratory accreditation,fully proved that the company in terms of hardware and software strength,are to meet the

strict requirements of UL certification.
