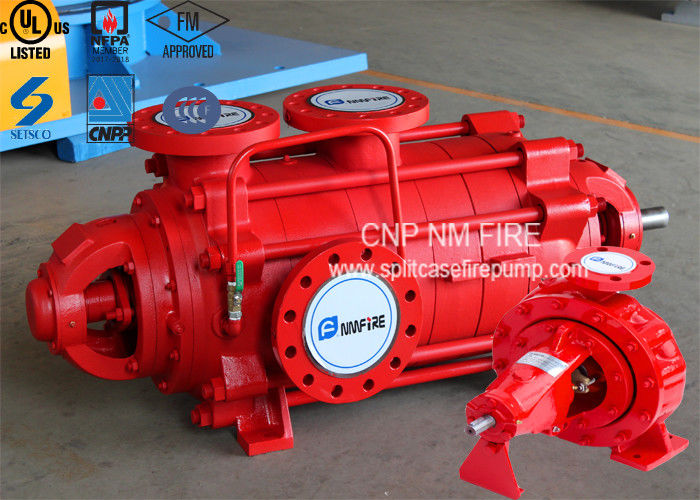

High Efficiency Electric Motor Driven Fire Pump Centrifugal Ductile Cast Iron Casing

High Efficiency Electric Motor Driven Fire Pump Centrifugal Ductile Cast Iron Casing
High Efficiency Electric Motor Driven Fire Pump Centrifugal Ductile Cast Iron Casing

Large Image :  High Efficiency Electric Motor Driven Fire Pump Centrifugal Ductile Cast Iron Casing

Product Details:

Place of Origin: China
Brand Name: NM FIRE
Certification: NFPA20/UL/FM/EN12845/CCCF
Model Number: ESF50-26(UL/FM)

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Standard Export Packing
Delivery Time: 45~60 Working Days after receipt of the deposit
Payment Terms: L/C, T/T
Detailed Product Description
Certification:: UL/FM/NFPA20 Flow:: 200gpm
Head: 9bar Engine:: NM Series
Control Panel:: Techtop(UL) Color: Red
High Light:

electric motor driven pump

,

electric motor driven centrifugal pump

200 USGPM @ 9bar Electric Motor Driven End Suction Firefighting Pump Sets UL Listed FM Approved



Pump:
Model: ESF50-26(UL/FM)
Q= 200usgpm H=9bar n=2980 rpm

Material:
Casing---Ductile Cast iron
Impeller---Bronze
Shaft--- S.S420
Seal------ Gland packing
Wear ring----Bronze
Bearing---SKF



Motor: Techtop(UL)
Model: T180L-2
30KW/50HZ /415V/ 3PH



Control Panel: Eaton (UL/FM)
Model: FD70-40-F-L1-B



The Electric Motor Driven



Techtop reputation has been built by implementing new innovation in the motor industry. The motors unique features enable the company to offer products with technical and efficiency benefits which exceed the level of our competition. Techtop motors offer a single stator design with optional removable feet for IEC, NEMA and GOST frames which allows for easy interchangability of components. Techtop owns over 30 intellectual property patents for its exceptional product design and motor technology. The quality of Techtop motors and manufacturing processes meet and exceed many domestic and international standards, including ISO9001, ISO14001, CCC, CE, CSA, UL (1004-1,1004-5), EEV, CC, ATEX, and GL etc.






Product Type:

Diesel engine driven fire pump sets with air cooling & water cooling

NFPA20 Package



Advantage:



We are the only enterprise in China that obtained not only UL and FM certificates, but CCCF as well, also the firt company in the world who was authorized by UL CCIC as witness testing center for both fire pump and fire fighting engines.







Service:

1. Reply within 24 hours.
2. High-quality products and the most reasonable price
3. Data and chemical technology support.
