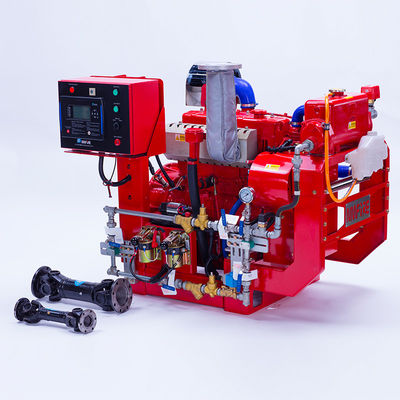

NM Fire UL / FM Approved Fire Diesel Engine 426 HP / 1760 rpm

Place of Origin China
Brand Name CNP NM FIRE
Certification UL/FM
Model Number NM6-128
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Package
Delivery Time 35-40 Working Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Red Name NM Fire
HP 472 Cooling Water Cold
Fuel Diesel Power 352kw
High Light

fire pump engine

,

fire diesel engine

Leave a Message
Product Description

UL Listed FM approved 352KW Fire Pump Diesel Engine For Firefighting Applications





Characteristics:

1. Specialize in fire fighting;

2. Stable performance and reliable quality;

3. Wide range of parameters, to match pumps with different capacity and speed;

4. Beautiful outline with compact structure;





May Parameters of NM6-128 Fire Diesel Engine:



Type 4 Cycle; In-line; water cooled; 6 Cylinder
Aspiration Turbocharged
Bore and Stroke mmxmm 128X153
Cylinder Liner Type √ Wet Dry
Displacement L 11.8
Compression Ratio 17:01
Riring Order 1-5-3-6-2-4
Combustion System Direct Injection
Roattion Viewed from front of engine CW
Valvest Per Cylinder Intake : 2 Exhaust : 2
Valves lashes at cold Intake mm ( inch ) 0.4
Exhaust mm ( inch ) 0.65
Ignition Type Compression(Diesel)
Charge Air Cooling Type Raw Water
Dry Weight Approx. kg 1150
Dimension Approx. mm 1790*1050*1490
Flywheel / Flywheel House Dimension SAE 14" / SAE 1



Applications:



Industrial fields: All petroleum, petrochemical, chemical, oil fields, pipelines bureaus, oil repositories, oil terminals, oil refineries, offshore platforms, etc.; National grain storages, thermal power plants, steel plants, shipyards, paper mills, etc.;



Commercial Field: five-star hotels, hospitals, schools, supermarkets, office buildings, large-scale commercial complex, highway tunnels, subway stations, railway stations, airports; Fire-fighting Engineering Companies;





Advantage:



First-Class international technical standards.



CNP NM FIRE is the first member of NFPA from China pump's manufacturers.and won the UL,FM international fire certification for fire pump products.





First-Class testing and inspection equipment.



UL certification represents the world's highest technical standards of fire certification,but also means that certified fire products must withstand the most extreme,harsh test process,the purpose of certification designed to verify whether the product meets the performance,safety and quality requirements,so as to achieve the purpose of property protection.

NM fire obtained fire diesel engine UL1247 and fire pump UL448 witnessed laboratory accreditation,fully proved that the company in terms of hardware and software strength,are to meet the strict requirements of UL certification.



Service:



Pre-service
Introduce the product to the customer in detail,answer the question raised by customer carefully;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
After-sale service
Provide considerate services to minimize clients’ worries.



NM Fire UL / FM Approved Fire  Diesel Engine 426 HP / 1760 rpm 0
