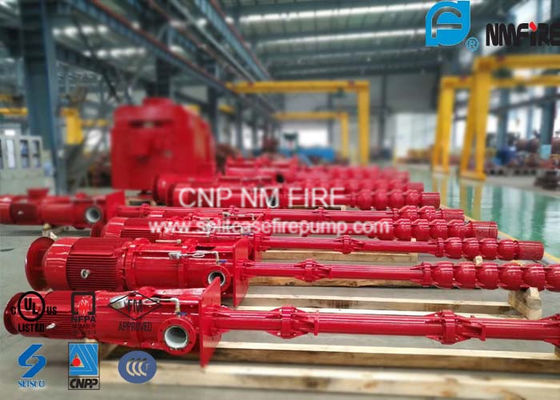

Centrifugal Electric Motor Driven Fire Pump Sets With Vertial Turbine Pumps For Fire Use
|Color||Red||Casing||Ductile Cast Iron|
electric motor driven water pump,
electric motor driven centrifugal pump
Centrifugal Multistage Motor Driven Fire Pump With Vertial Turbine Pumps For Water Use
The VTP pump line is normally designed to operate in wells or sumps. Its bowl assembly consists primarily of a suction case or bell, one or more pump bowls and a discharge case. The pump bowl assembly is positioned in the sump or well at a depth to provide the proper submergence.
Capacity up to 13,636 m³/h (60,000 U.S. gpm)
Head up to 762 m (2,500 ft)
Maximum Pressure 74 bar (1,080 psi)
Temperature 0 to 121 ºC (32 to 250 ºF)
Applications Deep well, irrigation, sumps, condensate, can pump requirements, fire service, municipal, industrial
How it Works:
The vertical turbine pump is normally driven by an AC electric induction motor or a diesel engine via a right angle drive. The end of the pump consists of a rotating impeller that is joined to a shaft and guides the well water into a diffuser casing known as a bowl.
Pumps with multi-stage arrangements use several impellers on a single shaft to generate higher pressure that would be required for pumping water from deeper wells or where higher pressure (head) is required at ground level.
A vertical turbine pump works when water comes through the pump from the bottom through a bell-shaped device known as a suction bell. The water then moves into the first stage impeller, which increases the velocity of the water. The water then moves into the diffuser casing directly above the impeller, where the high velocity energy is transformed into high pressure. The diffuser casing also guides the fluid into the next impeller located directly above the diffuser casing. The process goes on through all the stages in the pump.
After leaving the diffuser casing, the water passes in a vertical column pipe and rises toward the surface. The rotating shaft within the column is propped at 3 to 5 foot intervals using sleeve bushings that are set within the column and they are lubricated by the water as it moves past them. The pump also has a discharge head at the surface which allows the flow to change direction toward the discharge pipe. An upright standing high thrust A.C. motor is fitted above the pump’s discharge head.
First-Class testing and inspection equipment.
NM fire obtained fire diesel engine UL1247 and fire pump UL448 witnessed laboratory accreditation,fully proved that the company in terms of hardware and software strength,are to meet the
strict requirements of UL certification.
According to customers' requirement
|1. Reply within 24 hours.|
|2. High-quality products and the most reasonable price|
|3. Data and chemical technology support.|
|4. Professional team service|
We are always prepared to answer any question about our products or our company, welcome to contact us any time.
How to inquire the right pump you need?
♦ Please tell us the lift head and flow rate of the pump set you need, we will choose the right pump for you.
♦ If you have special requirement about the pump set, please kindly let us know.
