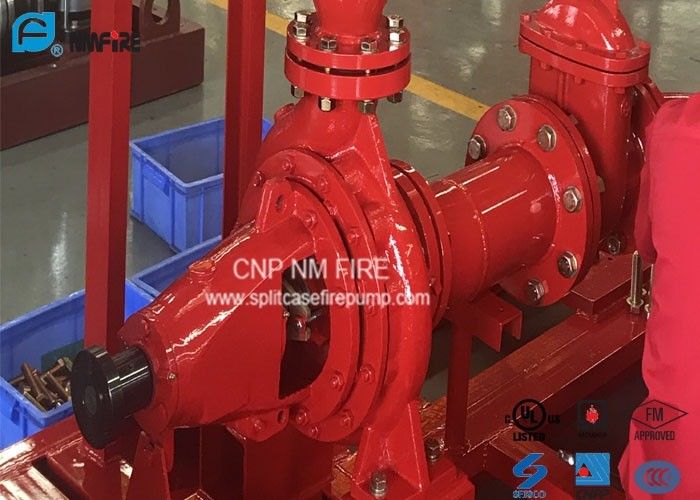

Firefighting End Suction Fire Pump 500GPM@165PSI For School / Hospital

Place of Origin China
Brand Name CNP NM FIRE
Certification NFPA20/UL/FM/EN12845/CCCF
Model Number PA65/32H (2.5"x2")
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 30-45 Working Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification UL/FM/NFPA20 Flow 500GPM
Pump CNP NM FIRE Casing: Ductile Cast Iron
Head 165PSI Color Red
High Light

horizontal end suction centrifugal pumps

,

single stage end suction pump

Leave a Message
Product Description

Firefighting Pumps On 500GPM @ 165PSI Centrifugal End Suction Fire Pumps By UL / FM Listed



End Suction Centrifugal Pump Introduction:



Ease of installation.
Simplifies piping layout.
Reduces problems associated with piping strain.
Self-venting design eliminates the need for automatic air release valve.
Rear pullout design supplied as standard with spacer coupling.
Ease of maintenance, eliminates disturbing driver or piping when removing rotating element.
Hydraulically balanced impeller extends bearing life and assures smoother operation.
Available in electric motor or diesel engine driven configuration. End Suction Pump Series with Hydraulically balanced impeller to extend bearing life. Available in electric motor or diesel engine driven configurations.
Capacity to 750 GPM
Pressures to 225PSI



Parameters:



HEAD PUMP MODEL SPEED MAX SHAFT POWER
PSI FEET METER RPM HP KW
165 381 116 PA65/32H
(2.5"x2")
2980
(50Hz)
112 83.4



NFPA20, UL, FM, EN12845,CCCF



Applications:



The end suction centrifugal pump is useful in various residential, industrial and commercial applications. Due to the fact that the pumps are highly common and readily available from many suppliers, their prices are usually very attractive.



Standard end suction centrifugal water pumps are normally close coupled and manufactured from standard iron or a variety of plastics. Pumps that are meant for more heavy duty commercial and industrial applications are often mounted on a bedplate with a coupling that separates the motor and the pump. These are usually available in stainless steel and more exotic alloys or plastics for corrosion resistance, while others are manufactured from hardened iron for mining, slurry and dredging applications.



The end suction centrifugal pump can be fitted with an open impeller for food and chemical processing applications that contain solids. Alternatively, it can have a closed impeller for clean water or oil services. The pumps can be designed to specific standards for chemical pump applications or hydrocarbon processing. The pump’s shaft can be sealed from the immediate environment using conventional packing and mechanical seals or it may be a canned motor or magnetic drive type.



Performance Ranges:





UL:



 Q: 100-750GPM  H:100-145PSI



FM:



 Q: 100-750GPM  H:100-145PSI



CCCF:



 Q:5-150L/S  H:0.40-1.6Mpa



NFPA20:



 Q: 100-2250GPM  H:60-230PSI





Product Type:



End Suction Fire Pump



NFPA20 Package





Advantage:



First-Class testing and inspection equipment.

UL certification represents the world's highest technical standards of fire certification,but also means that certified fire products must withstand the most extreme,harsh test process,the purpose of certification designed to verify whether the product meets the performance,safety and quality requirements,so as to achieve the purpose of property protection.
