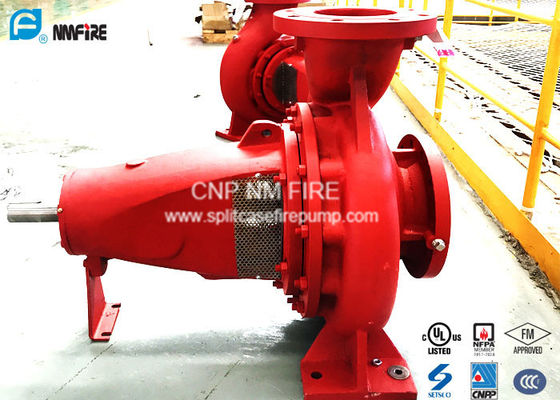

Single Stage End Suction Centrifugal Pump Manufacturers 46.9KW Max Shaft Power
| Place of Origin | China |
|---|---|
| Brand Name | CNP NM FIRE |
| Certification | NFPA20/UL/FM/EN12845/CCCF |
| Model Number | ESF65/26 (2.5"x2") |
| Minimum Order Quantity | 1set |
| Price | Negotiation |
| Packaging Details | Export Packing |
| Delivery Time | 30-45 Working Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | UL/FM/NFPA20 | Flow | 450GPM |
|---|---|---|---|
| Pump | CNP NM FIRE | Casing： | Ductile Cast Iron |
| Head | 120PSI | Color | Red |
| High Light | single stage end suction pump,single stage fire pump |
||
Product Description
UL / FM Listed Firefighting Pump Of Centrifugal End Suction Fire Pumps On 450GPM @ 120PSI
End Suction Centrifugal Pump Introduction:
End Suction Pump Series with Hydraulically balanced impeller to extend bearing life. Available in electric motor or diesel engine driven configurations.
Capacity to 750 GPM
Pressures to 225 PSI
Features and Benefits
Top centerline discharge with foot supported casing.
Ease of installation.
Simplifies piping layout.
Reduces problems associated with piping strain.
Self-venting design eliminates the need for automatic air release valve.
Rear pullout design supplied as standard with spacer coupling.
Ease of maintenance, eliminates disturbing driver or piping when removing rotating element.
Hydraulically balanced impeller extends bearing life and assures smoother operation.
Available in electric motor or diesel engine driven configuration.
Parameters:
| HEAD | PUMP MODEL | SPEED | MAX SHAFT POWER | |||
| PSI | FEET | METER | RPM | HP | KW | |
| 120 | 277 | 84 | ESF65/26 (2.5"x2") |
2980 (50Hz) |
63 | 46.9 |
NFPA20, UL, FM, EN12845,CCCF
Applications:
The end suction centrifugal pump is useful in various residential, industrial and commercial applications. Due to the fact that the pumps are highly common and readily available from many suppliers, their prices are usually very attractive.
Standard end suction centrifugal water pumps are normally close coupled and manufactured from standard iron or a variety of plastics. Pumps that are meant for more heavy duty commercial and industrial applications are often mounted on a bedplate with a coupling that separates the motor and the pump. These are usually available in stainless steel and more exotic alloys or plastics for corrosion resistance, while others are manufactured from hardened iron for mining, slurry and dredging applications.
Performance Ranges:
|
UL:
|
Q: 100-750GPM | H:100-145PSI |
|
FM:
|
Q: 100-750GPM | H:100-145PSI |
|
CCCF:
|
Q:5-150L/S | H:0.40-1.6Mpa |
|
NFPA20:
|
Q: 100-2250GPM | H:60-230PSI |
Product Type:
End Suction Fire Pump
NFPA20 Package
Advantage:
First-Class testing and inspection equipment.
UL certification represents the world's highest technical standards of fire certification,but also means that certified fire products must withstand the most extreme,harsh test process,the purpose of certification designed to verify whether the product meets the performance,safety and quality requirements,so as to achieve the purpose of property protection.
Service:
| 1. Reply within 24 hours. |
| 2. High-quality products and the most reasonable price |
| 3. Data and chemical technology support. |
| 4. Professional team service |
| 5. Customiszed production for different package |
| 6. No delay on shipment |
