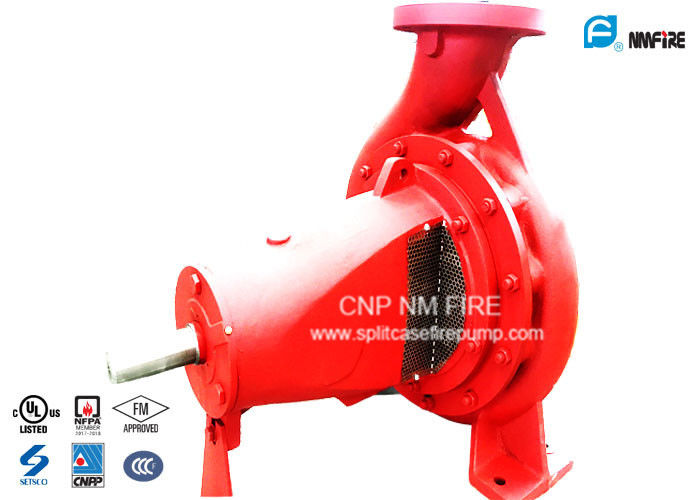

Horizontal End Suction Centrifugal Pumps 134 Meter Ductile Cast Iron Casing

Place of Origin China
Brand Name CNP NM FIRE
Certification NFPA20/UL/FM/EN12845/CCCF
Model Number PA50/32H (2.5"x2")
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 30-45 Working Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification UL/FM/NFPA20 Flow 250GPM
Pump CNP NM FIRE Casing: Ductile Cast Iron
Head 190PSI Color Red
High Light

single stage end suction pump

,

single stage fire pump

Leave a Message
Product Description

For Firefighting Use Centrifugal End Suction Fire Pumps 250GPM @ 190PSI By UL / FM Listed



End Suction Centrifugal Pump Introduction:

The end suction centrifugal pump is a kind of centrifugal pump that has a casing with the suction coming from one side and the discharge coming out the top. End suction pumps are almost entirely single stage pumps, meaning they only have one impeller.

It is also the most common layout for centrifugal pumps and the least expensive design in most instances. A wide variety of sizes, designs and materials of construction are on offer by various manufacturers for various applications ranging from water at ambient temperatures to high temperature and high pressure viscous oils, corrosive chemicals, and abrasive slurries.





Parameters:



HEAD PUMP MODEL SPEED MAX SHAFT POWER
PSI FEET METER RPM HP KW
190 438 134 PA50/32H
(2.5"x2")
2980
(50Hz)
82 61.1



NFPA20, UL, FM, EN12845,CCCF



End Suction Fire Pumps are designed according to NFPA-20 d. UL Listed and FM Approved.
End suction fire pumps are designed specifically for the very particular needs of fire protection and are approved by most of the major fire protection bodies
around the world.

CNP NMFIRE End suction fire pump is the perfect solution for small capacity fire applications. Back pull-out design end suction fire pump, allows the complete rotating element to be removed for servicing without disconnecting pipe work. If a spacer coupling is fitted then driver does not have to be moved too. Simplicity of design ensures long efficient unit life, reduced maintenance costs and minimum power consumption.

End suction pumps are specifically designed and tested for fire service application around the world including:
Office Buildings, hospitals, airports, manufacturing facilities, warehouses, power stations, schools/colleges, hotels, etc.



Performance Ranges:





UL:



 Q: 100-750GPM  H:100-145PSI



FM:



 Q: 100-750GPM  H:100-145PSI



CCCF:



 Q:5-150L/S  H:0.40-1.6Mpa



NFPA20:



 Q: 100-2250GPM  H:60-230PSI



Applications:

The end suction centrifugal pump is useful in various residential, industrial and commercial applications. Due to the fact that the pumps are highly common and readily available from many suppliers, their prices are usually very attractive.

Standard end suction centrifugal water pumps are normally close coupled and manufactured from standard iron or a variety of plastics. Pumps that are meant for more heavy duty commercial and industrial applications are often mounted on a bedplate with a coupling that separates the motor and the pump. These are usually available in stainless steel and more exotic alloys or plastics for corrosion resistance, while others are manufactured from hardened iron for mining, slurry and dredging applications.





Product Type:



End Suction Fire Pump



NFPA20 Package





Advantage:



First-Class testing and inspection equipment.

UL certification represents the world's highest technical standards of fire certification,but also means that certified fire products must withstand the most extreme,harsh test process,the purpose of certification designed to verify whether the product meets the performance,safety and quality requirements,so as to achieve the purpose of property protection.
