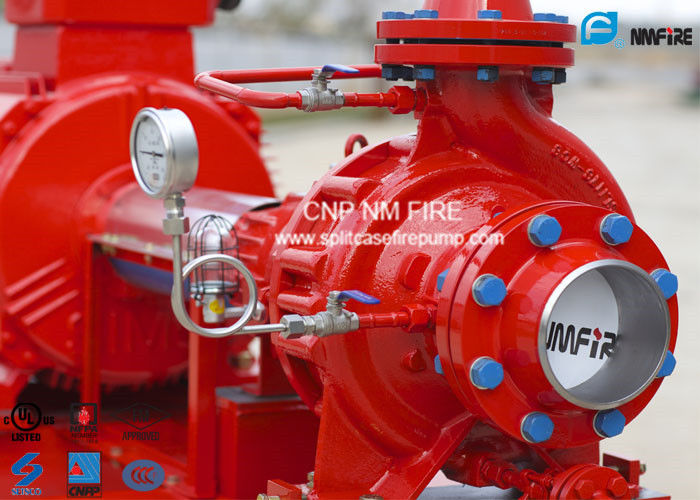

UL / FM Approved End Suction Fire Pump 200GPM @ 215PSI For Firefighting Use

Place of Origin China
Brand Name CNP NM FIRE
Certification NFPA20/UL/FM/EN12845/CCCF
Model Number NISO 125-100-400 (5"x4")
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 30-45 Working Days
Payment Terms L/C, T/T
Product Details
Certification UL/FM/NFPA20 Flow 200GPM
Pump CNP NM FIRE Casing: Ductile Cast Iron
Head 215PSI Color Red
High Light

horizontal end suction centrifugal pumps

,

single stage fire pump

Leave a Message
Product Description

UL / FM Listed Centrifugal End Suction Fire Pumps 200GPM @ 215PSI For Firefighting Use



End Suction Pump Series with Hydraulically balanced impeller to extend bearing life. Available in electric motor or diesel engine driven configurations.
Features and Benefits
Top centerline discharge with foot supported casing.
Ease of installation.
Simplifies piping layout.
Reduces problems associated with piping strain.
Self-venting design eliminates the need for automatic air release valve.
Rear pullout design supplied as standard with spacer coupling.
Ease of maintenance, eliminates disturbing driver or piping when removing rotating element.
Hydraulically balanced impeller extends bearing life and assures smoother operation.
Available in electric motor or diesel engine driven configuration.



Parameters:



HEAD PUMP MODEL SPEED MAX SHAFT POWER
PSI FEET METER RPM HP KW
215 496 151 PA50/32H
(2.5"x2")
2980
(50Hz)
93 69.3



NFPA20, UL, FM, EN12845,CCCF



How it Works:



The end suction centrifugal pump normally contains a single impeller and a spiral like casing. The fluid that is being pumped moves along the impeller’s vanes, which increases the fluid’s velocity. From there the fluid is moved into the spiral like casing, where the high velocity is transformed into high pressure by a diffusion process.

These types of pumps are usually powered by an A.C. electric motor, although some are D.C. motor driven, as well as air driven motors, hydraulic motors, gasoline and diesel engine driven and steam turbine driven. These pumps may be close-coupled, with the impeller directly attached to the driver shaft without a separate coupling between them. Alternatively, they may be mounted on a frame, where the pump has its own bearings and a coupling that separates the motor and the pump.



Performance Ranges:





UL:



 Q: 100-750GPM  H:100-145PSI



FM:



 Q: 100-750GPM  H:100-145PSI



CCCF:



 Q:5-150L/S  H:0.40-1.6Mpa



NFPA20:



 Q: 100-2250GPM  H:60-230PSI



Applications:

The end suction centrifugal pump is useful in various residential, industrial and commercial applications. Due to the fact that the pumps are highly common and readily available from many suppliers, their prices are usually very attractive.

Standard end suction centrifugal water pumps are normally close coupled and manufactured from standard iron or a variety of plastics. Pumps that are meant for more heavy duty commercial and industrial applications are often mounted on a bedplate with a coupling that separates the motor and the pump. These are usually available in stainless steel and more exotic alloys or plastics for corrosion resistance, while others are manufactured from hardened iron for mining, slurry and dredging applications.





Product Type:



End Suction Fire Pump



NFPA20 Package





Advantage:



First-Class testing and inspection equipment.

UL certification represents the world's highest technical standards of fire certification,but also means that certified fire products must withstand the most extreme,harsh test process,the purpose of certification designed to verify whether the product meets the performance,safety and quality requirements,so as to achieve the purpose of property protection.
