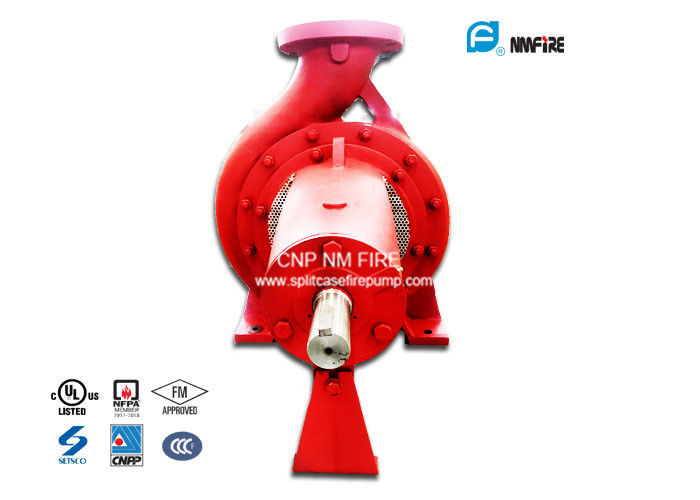

High Efficiency End Suction Fire Pump 102 Meter For Chemical / Oil Fields

Name: High Efficiency End Suction Fire Pump 102 Meter For Chemical / Oil Fields
Brand: Wuhan Spico Machinery & Electronics Co., Ltd.
SKU: PA65/32H (2.5"x2")
Price: 50,500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNP NM FIRE

Certification: NFPA20/UL/FM/EN12845/CCCF

Model Number: PA65/32H (2.5"x2")

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: Export Packing

Delivery Time: 30-45 Working Days

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                single stage end suction pump, single stage fire pump


Certification::	UL/FM/NFPA20	Flow::	500GPM
Pump::	CNP NM FIRE	Casing：:	Ductile Cast Iron
Head:	145PSI	Color:	Red

Certification::	UL/FM/NFPA20
Flow::	500GPM
Pump::	CNP NM FIRE
Casing：:	Ductile Cast Iron
Head:	145PSI
Color:	Red

High Efficiency End Suction Fire Pump 102 Meter For Chemical / Oil Fields

500GPM @ 145PSI With UL Listed Centrifugal End Suction Fire Pumps By Ductile Cast Iron Made

End suction fire pumps are designed specifically for the very particular needs of fire protection and are approved by most of the major fire protection bodies around the world.
Fire Pump approvals are of course essential for the peace of mind of those that build, operate or use buildings. The approval demonstrates that an independent assessment has been made of the Fire Pump Manufacturer's packages and processes and that they conform to industry standards.

Parameters:

HEAD			PUMP MODEL	SPEED	MAX SHAFT POWER
PSI	FEET	METER	PUMP MODEL	RPM	HP	KW
145	335	102	PA65/32H (2.5"x2")	2980 (50Hz)	100	74.5

NFPA20, UL, FM, EN12845,CCCF

How it Works:

These types of pumps are usually powered by an A.C. electric motor, although some are D.C. motor driven, as well as air driven motors, hydraulic motors, gasoline and diesel engine driven and steam turbine driven. These pumps may be close-coupled, with the impeller directly attached to the driver shaft without a separate coupling between them. Alternatively, they may be mounted on a frame, where the pump has its own bearings and a coupling that separates the motor and the pump.

Performance Ranges:

UL:	Q: 100-750GPM	H:100-145PSI
FM:	Q: 100-750GPM	H:100-145PSI
CCCF:	Q:5-150L/S	H:0.40-1.6Mpa
NFPA20:	Q: 100-2250GPM	H:60-230PSI

Product Type:

End Suction Fire Pump

NFPA20 Package

Advantage:

First-Class testing and inspection equipment.

UL certification represents the world's highest technical standards of fire certification,but also means that certified fire products must withstand the most extreme,harsh test process,the purpose of certification designed to verify whether the product meets the performance,safety and quality requirements,so as to achieve the purpose of property protection.
