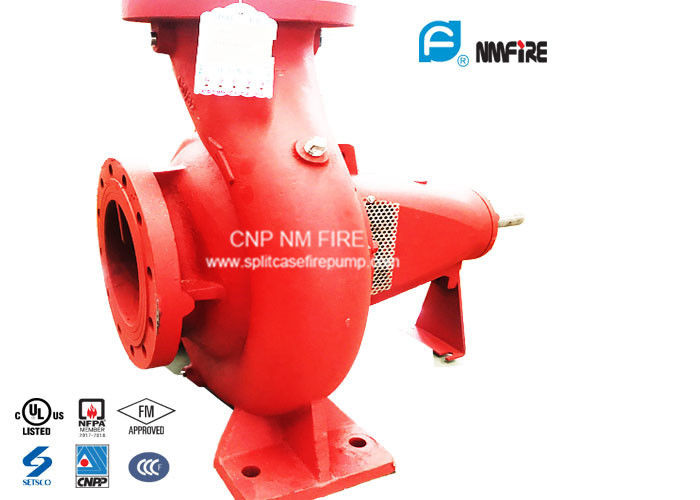

450GPM@200PSI Ul Listed Fire Pumps One Stage 99.8KW Max Shaft Power

Product Details

Place of Origin: China

Brand Name: CNP NM FIRE

Certification: NFPA20/UL/FM/EN12845/CCCF

Model Number: PA65/32H (2.5"x2")

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: Export Packing

Delivery Time: 30-45 Working Days

Payment Terms: L/C, T/T

Get Best Price
Highlight:

horizontal end suction centrifugal pumps

,

single stage fire pump

Certification::
UL/FM/NFPA20
Flow::
450GPM
Pump::
CNP NM FIRE
Casing::
Ductile Cast Iron
Head:
200PSI
Color:
Red
Certification::
UL/FM/NFPA20
Flow::
450GPM
Pump::
CNP NM FIRE
Casing::
Ductile Cast Iron
Head:
200PSI
Color:
Red
450GPM@200PSI Ul Listed Fire Pumps One Stage 99.8KW Max Shaft Power

Firefighting Pumps On 450GPM @ 200PSI Centrifugal End Suction Fire Pumps By UL Listed



Design Features according to UL / FM :
All interior bolt or screw that are exposed to pumped liquid shall be of rolled bronze or corrosion resistant material.
The pump shall be provided with automatic air-release valve, circulation relief valve and pressure gauges.
Bearings shall have an L-10 rating of not less than 5000 hours at maximum load.
The pumps shall be provided with at least four packing rings plus a lantern ring. The lantern ring may be permitted to replace one ring of packing.
Impellers, wear rings, shafts, lantern rings, glands shall be made of corrosion resistant material.



Parameters:



HEAD PUMP MODEL SPEED MAX SHAFT POWER
PSI FEET METER RPM HP KW
200 461 141 PA65/32H
(2.5"x2")
2980
(50Hz)
134 99.8



NFPA20, UL, FM, EN12845,CCCF



How it Works:



These types of pumps are usually powered by an A.C. electric motor, although some are D.C. motor driven, as well as air driven motors, hydraulic motors, gasoline and diesel engine driven and steam turbine driven. These pumps may be close-coupled, with the impeller directly attached to the driver shaft without a separate coupling between them. Alternatively, they may be mounted on a frame, where the pump has its own bearings and a coupling that separates the motor and the pump.



Performance Ranges:





UL:



 Q: 100-750GPM  H:100-145PSI



FM:



 Q: 100-750GPM  H:100-145PSI



CCCF:



 Q:5-150L/S  H:0.40-1.6Mpa



NFPA20:



 Q: 100-2250GPM  H:60-230PSI





Product Type:



End Suction Fire Pump



NFPA20 Package





Advantage:



First-Class testing and inspection equipment.

UL certification represents the world's highest technical standards of fire certification,but also means that certified fire products must withstand the most extreme,harsh test process,the purpose of certification designed to verify whether the product meets the performance,safety and quality requirements,so as to achieve the purpose of property protection.
