1000GPM@170PSI Electric Motor Driven Fire Pump Centrifugal For Office Building

Place of Origin China
Brand Name NM FIRE
Certification NFPA20/UL/FM/EN12845/CCCF
Model Number SCF150-100-320 (6x4")
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 65 Working Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification UL/FM/NFPA20 Flow 1000GPM
Head 170PSI Engine NM Series
Control Panel Tornatech (UL/FM) Color Red
High Light

electric motor driven pump

,

electric motor driven water pump

Leave a Message
Product Description

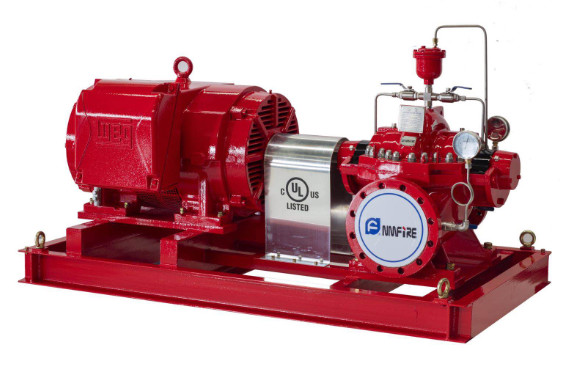

1000GPM @ 170PSI UL Listed Electric Motor Driven Split Case Firefighting Pump Sets





Split Case Pump

A split case pump is a type of centrifugal pump in which the pump’s casing is split into two separate chambers. This type of pump is different from an inline pump or an end suction pump in which the discharge nozzle and the suction nozzle are both included in one chamber.



The Electric Motor Driven

Techtop produce aluminum and cast iron frame motors of IEC standard (FR56-355), and NEMA standard (FR48-449), all products meet the IE1, IE2, IE3, NEMA Epact and premium efficiency requirements. Techtop s R&D division is currently investing significant efforts into the development of IE4 and EC motors.



Parameters:



HEAD PUMP MODEL SPEED MAX SHAFT POWER MOTOR DRIVER
PSI FEET METER RPM HP KW MODEL HP KW
(TECHTOP&UL)
170 393 120 SCF150-100-320 2980 188 140.1 T 315M-2 180 132
(6x4") (50Hz) (IEC/TEFC)


Product Type:



centrifugal pump

NFPA20 Package



Advantage:



We are the only enterprise in China that obtained not only UL and FM certificates, but CCCF as well, also the firt company in the world who was authorized by UL CCIC as witness testing center for both fire pump and fire fighting engines.
