Horizontal Electric Motor Driven Fire Pump 311 Feet / 95 Meter Energy Savings
| Place of Origin | China |
|---|---|
| Brand Name | CNP NM FIRE |
| Certification | NFPA20/UL/FM/EN12845/CCCF |
| Model Number | SCF200-150-460 |
| Minimum Order Quantity | 1set |
| Price | Negotiation |
| Packaging Details | Export Packing |
| Delivery Time | 30-45 Working Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | UL/FM/NFPA20 | Flow | 1500GPM |
|---|---|---|---|
| Engine | Techtop | Control Panel | Tornatech (UL/FM) |
| Head | 135PSI | Casing | Ductile Cast Iron |
| High Light | electric motor driven pump,electric motor driven centrifugal pump,Horizontal Fire Pump 311 Feet |
||
Product Description

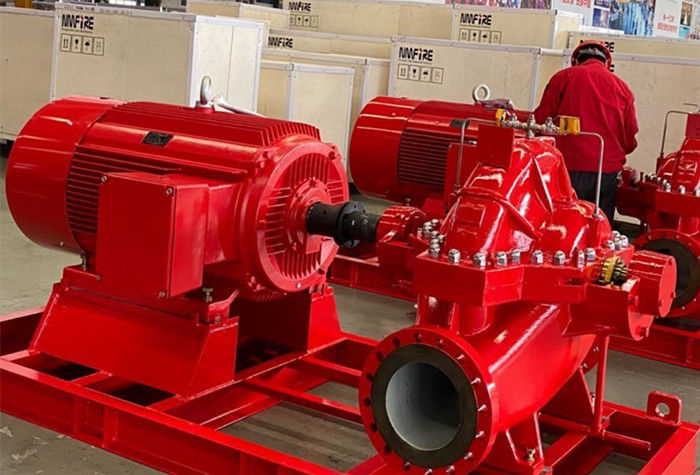

Horizontal Centrifug UL Listed Electric Motor Driven Fire Pump Sets With Split case Fire Pump 1500GPM @ 135PSI
FEATURES
• Energy savings, high efficiency
• High starting torque, lower starting current
• Versatile design (easy to modify for varieties of application)
• Option of integrated or removable foot
• Option of aluminum housing up to frame size 200
• Option of terminal box location (top, left or right)
• Option of IE2, IE3, MEPS High and Premium Efficiency for IEC standards + NEMA EPACT and Premium Efficiency
• Contained total length (same or shorter than current popular models in the market)
• Full use of magnetization property of cold rolled silicon steel (stator lamination is magnetized evenly to reduce temperature rise of winding)
Parameters:
| HEAD | PUMP MODEL | SPEED | MAX SHAFT POWER | MOTOR DRIVER | |||||
| PSI | FEET | METER | RPM | HP | KW |
MODEL
(TECHTOP&UL) |
HP | KW | |
| 135 | 311 | 95 | SCF200-150-460 (8x6") |
1800 (60Hz) |
275 | 204.9 | TXC 586/7T350U4B (NEMA/TEFC) |
350 | 280 |
Advantage:
- We are the first member of NFPA among Chinese pump manufacturers. The production of our fire pump groups is strictly in accordance with NFPA20.
- We are the first manufacturer in the world who have both UL/FM certification for fire pump and the fire-fighting diesel engine, also the only UL Witness laboratory in Asia for fire-fighting pump and fire-fighting diesel engine.
- We have applied dozens of patents.
- We have young team, top experts.
Application:
Industrial fields: All petroleum, petrochemical, chemical, oil fields, pipelines bureaus, oil repositories, oil terminals, oil refineries, offshore platforms, etc.; National grain storages, thermal power plants, steel plants, shipyards, paper mills, etc.;
Commercial Field: five-star hotels, hospitals, schools, supermarkets, office buildings, large-scale commercial complex, highway tunnels, subway stations, railway stations, airports; Fire-fighting Engineering Companies;
Special material for sea water pumping is available: Casing , impeller ,shaft ,shaft sleeve, wear ring—SS2205, Seal—Gland packing, Bearing—SKF
Performance Ranges:
|
UL:
|
Q: 500-4000GPM | H:100-190PSI |
|
FM:
|
Q: 500-4000GPM | H:100-190PSI |
|
CCCF:
|
Q:20-500L/S | H:0.42-2.0Mpa |
|
NFPA20:
|
Q: 300-8000GPM | H:60-300PSI |
Product Type:
Electric motor driven firefighting pump sets
NFPA20 Package
Service:
1 . Q: Whats the MOQ ?
A: 1 set for regular product ,the special one we need to discuss.
2 . Q: What about the package ?
A : Standard export Plywood case .
