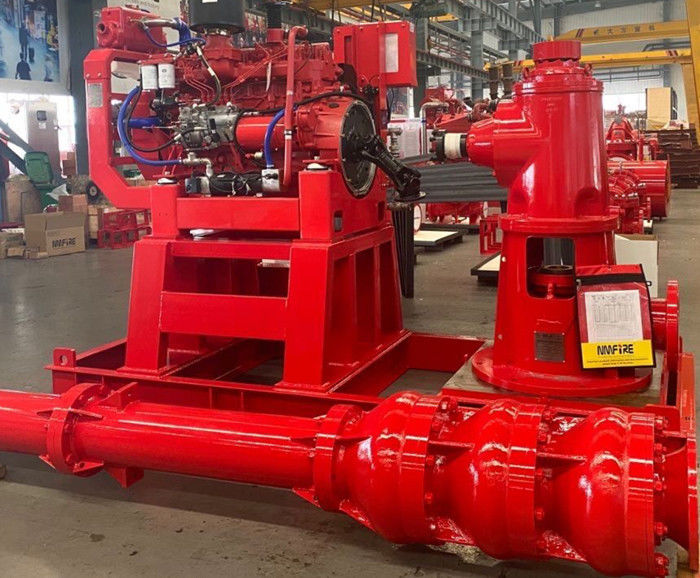

Firefighting System Diesel Engine Driven Fire Pump For Water Use 400GPM @ 130PSI

Name: Firefighting System Diesel Engine Driven Fire Pump For Water Use 400GPM @ 130PSI
Brand: Wuhan Spico Machinery & Electronics Co., Ltd.
SKU: ESF65/26 （2.5"x2")
Price: 32,500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: NM FIRE

Certification: NFPA20/UL/FM/EN12845/CCCF

Model Number: ESF65/26 （2.5"x2")

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: Export Packing

Delivery Time: 30-45 Working Days

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                diesel engine fire pump, diesel powered fire pump, 400GPM Fire Pump


Certification::	UL/FM/NFPA20	Flow::	400GPM
Head:	130PSI	Engine::	NM Series & DE MAAS
Control Panel::	Tornatech (UL/FM)	Color:	Red

Certification::	UL/FM/NFPA20
Flow::	400GPM
Head:	130PSI
Engine::	NM Series & DE MAAS
Control Panel::	Tornatech (UL/FM)
Color:	Red

Firefighting System Diesel Engine Driven Fire Pump For Water Use 400GPM @ 130PSI

Firefighting System UL/FM Listed Diesel Engine Drive End Suction Fire Pump 400GPM @ 130PSI For Water Use

How it Works:

The end suction centrifugal pump normally contains a single impeller and a spiral like casing. The fluid that is being pumped moves along the impeller’s vanes, which increases the fluid’s velocity. From there the fluid is moved into the spiral like casing, where the high velocity is transformed into high pressure by a diffusion process.

Application:

The end suction centrifugal pump is useful in various residential, industrial and commercial applications. Due to the fact that the pumps are highly common and readily available from many suppliers, their prices are usually very attractive.

Parameters:

HEAD

PUMP MODEL

SPEED

MAX SHAFT POWER

DIESEL ENGINE DRIVER

PSI

FEET

METER

RPM

MODEL(NM&UL)

MODEL (DE MAAS&FM)

130

300

ESF65/26
(2.5"x2")

2980
(50Hz)

NM4-105

IF05AH-F

Product Type:

Diesel engine driven fire pump sets with air cooling & water cooling

NFPA20 Package

Performance Ranges:

UL:	Q: 100-750GPM	H:100-145PSI
FM:	Q: 100-750GPM	H:100-145PSI
CCCF:	Q:5-150L/S	H:0.40-1.6Mpa
NFPA20:	Q: 100-2250GPM	H:60-230PSI

Advantage:

First-Class testing and inspection equipment.

UL certification represents the world's highest technical standards of fire certification,but also means that certified fire products must withstand the most extreme,harsh test process,the purpose of certification designed to verify whether the product meets the performance,safety and quality requirements,so as to achieve the purpose of property protection.

Service:

1. Reply within 24 hours.

2. High-quality products and the most reasonable price

3. Data and chemical technology support.

4. Professional team service

5. Customiszed production for different package

6. No delay on shipment
