FM Approved IF05ATH-F Fire Pump Diesel Engine 74KW Power De Maas

Name: FM Approved IF05ATH-F Fire Pump Diesel Engine 74KW Power De Maas
Brand: Wuhan Spico Machinery & Electronics Co., Ltd.
SKU: IF05ATH-F
Price: 100000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNP NM FIRE

Certification: UL/FM

Model Number: IF05ATH-F

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: Export Package

Delivery Time: 75 working days

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                fire pump engine, fire power engine


Color:	Red	Name:	De Maas
Model:	IF05ATH-F	Cooling:	Water Cold
Fuel:	Diesel	Power:	74kw

Color:	Red
Name:	De Maas
Model:	IF05ATH-F
Cooling:	Water Cold
Fuel:	Diesel
Power:	74kw

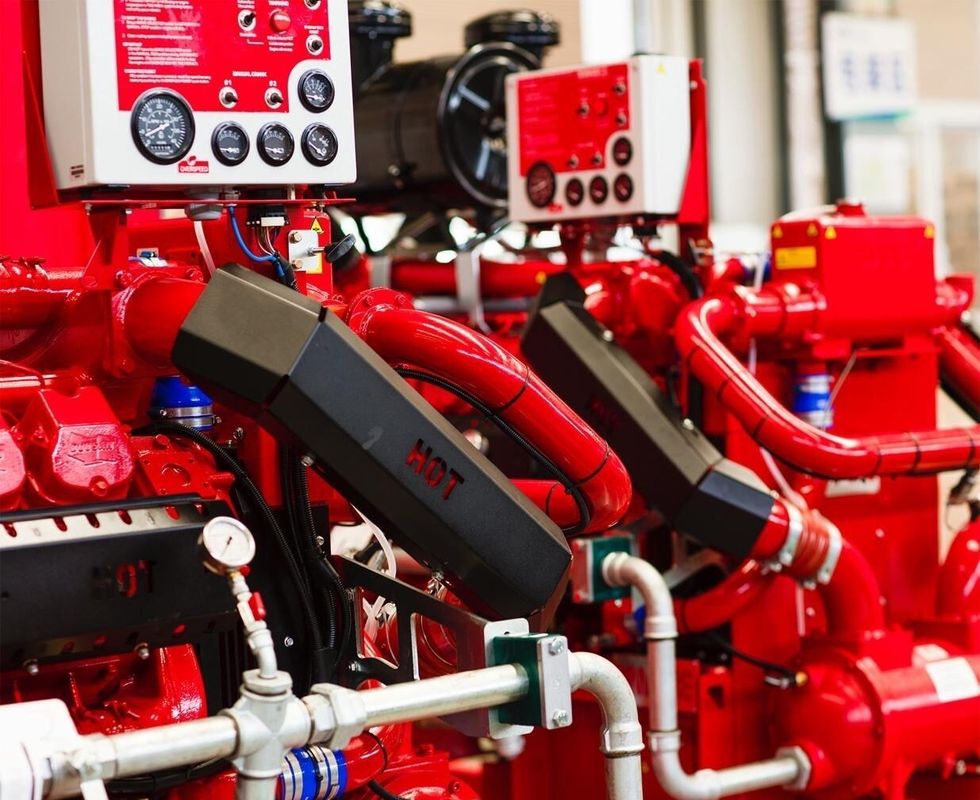

FM Approved IF05ATH-F Fire Pump Diesel Engine 74KW Power De Maas

FM Approved IF05ATH-F Fire Pump Diesel Engine 74KW Power De Maas

One of De Maas's specialities is the development and manufacturing of dedicated engines for sprinkler systems.The in house capabilities give us the possibility to develop a carefully selected base engine into a high quality,high performance firefighting engine.Experience over years have given us the knowledge to do that in line with the highest demanding standards required by the market.

De Maas Firefighting Engines:

Can answer worldwide and country specific demands for various specifications, including FM approval
Are thoroughly tested and certified in our own testing facilities in The Netherlands
Are manufactured with great accuracy and precision
Are available in a power range of 49kw-652kw (FM Approved) and 53kw-724kw (non-approved)
Have a proven record worldwide.

General Engine Data					IF05ATH-F
General Engine Data					IF05ATH-F
Type			4 cycle, 4 Cylinder In Line, Water cooled
Aspiration			Turbo charged
Cylinder Type				Replaceable
Bore x Stroke(mm)				104 x 132
Displacement(litre)				4.483
Compression Ratio				17.5 : 1
Valves per Cylinder	- Intake			1
	- Exhaust			1
Valve Timing	- Intake		Opening: 15⁰ BTDC - Close: 35⁰ ABDC
	- Exhaust		Opening: 69⁰ BBDC - Close: ATDC
Valves lashes at cold	- Intake	mm		0.25 ±0.5
	- Exhaust	mm		0.5 ±0.5
Combustion Type				Direct Injection
Firing Order			1 – 3 – 4 – 2
Rotation			Counter Clockwise, viewed from flywheel
Dimension L x W x H (L=Construction Length)		± mm		955 x 955 x 1,497

Engine Rating			1,760		2,100		2,200		2,350		2,600		2,800		2,940

	IF05ATH-F	kW		74		86		90		95		97		97		98

Fuel System

Injection Pump

StanaDyne Rotary Pump type

Governor

Fixed speed control

Fuel Lift Pump

Exclusive (Electric version as an Option)

Fuel Filter

Full flow, cartridge type

Used Fuel

Diesel fuel according EN 590

Fuel consumption at Full Load Approx.

at 2,940 rpm

266

228

220

247

Fuel consumption information at other Revs.

See table no.

03.400.06FCEN03

Standard Supply line Size

Standard Return line Size

Electrical System

24 Volts (Nominal)

Starter motor

Battery Min. capacity recommended

180 (12 Volts)

Quantity per battery bank

Battery Cold Cranking Amperes

@ -18⁰C

950

Charging Alternator Output

Amp.

Engine stop device build in fuel pump

Energized to Stop

Advantage:

First-Class international technical standards

NM Fire is the only enterprise in China that obtained not only UL and FM certificates, but CCCF as well,also the first company in the world who was authorized by UL CCIC as witness testing center for both fire pumps and fire fighting engines.

NM fire obtained fire diesel engine UL1247 and fire pump UL448 witnessed laboratory accreditation,fully proved that the company in terms of hardware and software strength,are to meet the

strict requirements of UL certification.

Service:

Pre-service

Introduce the product to the customer in detail,answer the question raised by customer carefully;

Sale service

1.Ensure product with high quality and pre-commissioning before delivery;

2.Delivery on time;

After-sale service

Provide considerate services to minimize clients’ worries.
