Ductile Cast Iron Centrifugal Fire Pump 170PSI 120m For Office Building

Place of Origin China
Brand Name CNP NM FIRE
Certification NFPA20/UL/FM/EN12845/CCCF
Model Number SCF300-250-490 (12x10")
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 30-45 Working Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification UL/FM/NFPA20 Flow 4000GPM
RPM 1800 (60Hz) Engine DE MAAS & NM Fire
Control Panel Tornatech (UL/FM) Head 170PSI
High Light

diesel fire pump

,

fire fighting water pump

Leave a Message
Product Description

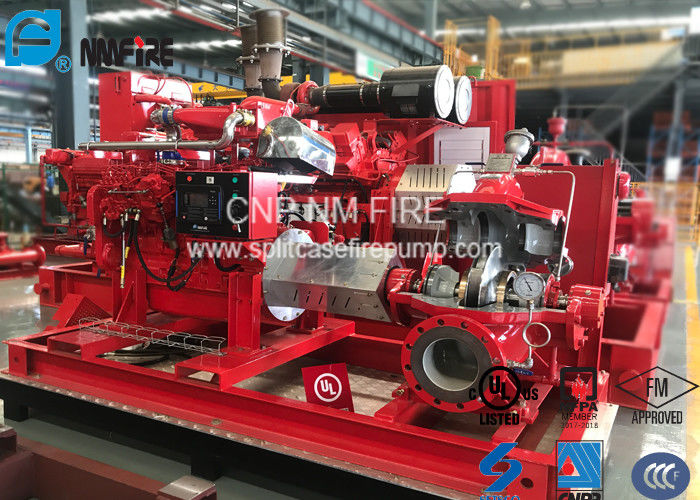

Ductile Cast iron Made Split Case Centrifugal Fire Pump Capacity With UL/FM/NFPA20 Certification





split case fire pumps that meet NFPA standards , as well as being UL listed, FM approved. Fire pump sets are available with electric motor and diesel engine driver. Every pump is subjected to a thorough inspection and a series of tests to ensure that it meets the required specifications before leaving the factory.


KEY FEATURES

  • Complete compact unit
  • Horizontal
  • Tailored to the customer's required standards and specifications
  • Configuration for NFPA20 / FM / UL up to 4000 US gpm
  • Good suction characteristics, also with higher speeds
  • Practically no limitations on flow
  • Less wear and tear influences
  • Easy maintenance without interfering on piping / driver
  • Select Models Available in alternate materials with FM approval



Parameters:



HEAD PUMP MODEL SPEED MAX SHAFT POWER
PSI FEET METER RPM HP KW
170 393 120 SCF300-250-490
(12x10")
1800
(60Hz)
676 503.6





How it Works:


The most common split case pump is a single-stage, between bearing, non-self-priming centrifugal volute pump. The design of the pump allows for easy removal of the pump’s top casing to enable easy access to the pump’s components without interfering with the motor or the piping system.





Performance Ranges:





UL:



 Q: 500-4000GPM  H:100-190PSI



FM:



 Q: 500-4000GPM  H:100-190PSI



CCCF:



 Q:20-500L/S  H:0.42-2.0Mpa



NFPA20:



 Q: 300-8000GPM  H:60-300PSI







Product Type:



Diesel engine driven fire pump sets with air cooling & water cooling



NFPA20 Package





Advantage:



First-Class international technical standards.



CNP NM FIRE is the first member of NFPA from China pump's manufacturers.and won the UL,FM international fire certification for fire pump products.





Service:



1. To supply high-quality products with reasonable prices in food additive industry.
2. To follow orders and arrange shipping in time, providing complete documents
for Customs clearance according to different export policies in different countries.
