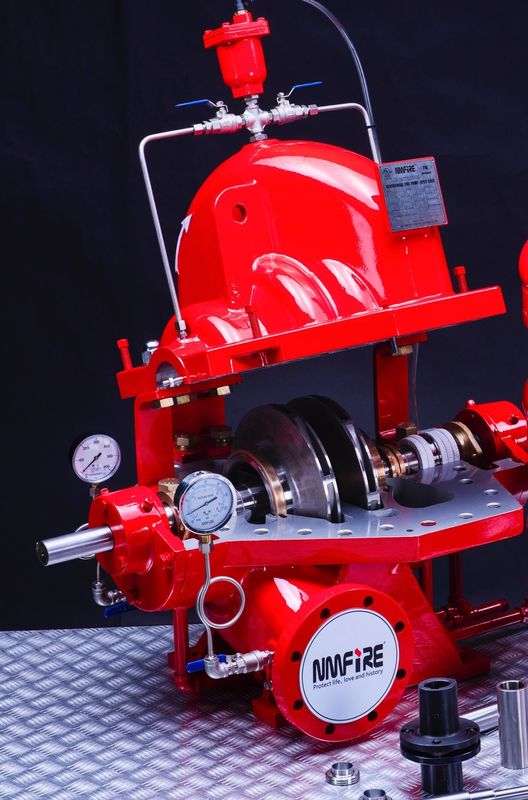

Electric Motor Diesel Engine Driven 8000GPM Horizontal Split Case Fire Pump

Electric Motor Diesel Engine Driven 8000GPM Horizontal Split Case Fire Pump
Electric Motor Diesel Engine Driven 8000GPM Horizontal Split Case Fire Pump Electric Motor Diesel Engine Driven 8000GPM Horizontal Split Case Fire Pump Electric Motor Diesel Engine Driven 8000GPM Horizontal Split Case Fire Pump

Large Image :  Electric Motor Diesel Engine Driven 8000GPM Horizontal Split Case Fire Pump

Product Details:
Place of Origin: China
Brand Name: CNP NM FIRE
Certification: UL /FM
Model Number: CF125-100-300
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Packing
Delivery Time: 60 Days
Payment Terms: L/C, T/T
Detailed Product Description
Engine: NM&UL Capacity: 300gpm To 8,000gpm
Head: 175PSI RPM: 2980
Casing: Ductile Cast Iron Impeller: SS304
High Light:

8000GPM Split Case Fire Pump

,

UL Split Case Fire Pump

,

fm horizontal split pump

  • UL/FM Horizontal Split Case Fire Pumps 300gpm To 8,000gpm Electric Motor Or Diesel Engine Ul Fm Approved Fire Pumps

NMFIRE two stage UL/FM fire pump is engineered for rugged, reliable service and is ideal for installation where space is at premium.



NMFIRE UL/FM Horizontal Split Case Fire Pumps are engineered for reliable operation upon demand.

These pumps are designed and certified to operate with pressures in excess of 580psi (40bar) and flows from 300gpm to 8,000gpm.



Whether your fire pump application requires an electric motor, or diesel engine, these industry-approved pumps can be configured to meet your specific needs.



Main Parameters:



Diesel Engine Pump Set
( Heat Exchanger)
Pump NM FIRE(UL/FM)
Model CF125-100-300
Material
Casing Ductile Cast iron
Impeller SS304
Shaft AISI 4340
Shaft sleeve SS304
Seal Gland packing
Wear ring Bronze
Bearing SKF
Engine NM FIRE(UL)
Controller Tornatech/Eaton(UL/FM)
Fuel tank Newberry Tanks (UL)

DESCRIPTION:





Electric Motor Diesel Engine Driven 8000GPM Horizontal Split Case Fire Pump 0

Electric Motor Diesel Engine Driven 8000GPM Horizontal Split Case Fire Pump 1



Applications

Large hotels, hospitals , schools,office buildings,supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises,offshore platform(Pump material:Discharge head, Column pipe, shaft, impeller, suction bell—SS2205, Seal—Gland packing ,Guide bearing—Thordon) etc.

Product types


Electric motor driven fire pump group
Diesel engine driven fire pump group with air cooling & water cooling
NFPA20 Package

Electric Motor Diesel Engine Driven 8000GPM Horizontal Split Case Fire Pump 2



About Us







CNP NM Fire-fighting System Co.,Ltd

NM FIRE FIGHTING SYSTEM CO., LTD was established in Changsha, Hunan Province, in 2013. Our company manufactures diesel engine driven fire pumps, electric motor driven fire pumps, NFPA20 fire pump packages, and UL/FM containerized pump stations meet domestic and international fire protection standards. With years of investment, NMFIRE has also gotten domestic and international fire protection certifications years ahead of any other Chinese manufacturer.



NMFIRE is the first NFPA (National Fire Protection Association) member in China's pump industry and also the only Chinese company among the members of EFSN (European Fire Sprinkler Network). We are the first company in China to receive both UL/FM fire pumps and UL/FM fire diesel engines. Our company was a key contributor to the revision of China's fire pump industry standards. Our products' technology and certified range are leading in both the domestic and global marketplace.



NMFIRE---No More Fir

Electric Motor Diesel Engine Driven 8000GPM Horizontal Split Case Fire Pump 3



In addition to the above models, there are many model UL/FM testing in process.
Looking forward to your enquiry.

Standards

NFPA20, UL, FM, EN12845,CCCF

Performance Ranges

UL : Q: 100-750GPM H:70-152PSI

FM: Q: 100-750GPM H:70-152PSI

CCCF: Q:15-45L/S H:0.6-0.9Mpa

NFPA20: Q: 100-3000GPM H:40-200PSI





Split casing Pump Model Chart
Rated Capacity Model
Designation
Rated Net Pressure Range, Approx. Speed, Maximum Working Pressure, Impeller Diameter, mm.
GPM (US) PSI RPM PSI Max Min
300 SCF125-100-300 123-195 2980 400 315 250
400 SCF125-100-300 120-189 2980 400 315 250
400 SCF125-100-300 173-274 3550 400 315 250
450 SCF125-100-300 119-187 2980 400 315 250
450 SCF125-100-300 172-272 3550 400 315 250
500 SCF125-100-300 117-184 2980 400 315 260
500 SCF125-100-300 170-269 3550 400 315 260
750 SCF125-100-300 104-163 2980 400 315 260
750 SCF125-100-300 157-247 3550 400 315 260
750 SCF125-80-350G 169-251 2980 261 330 280
750 SCF150-100-320 138-198 2980 202 300 255
1000 SCF150-100-320 130-191 2980 202 300 240
1000 SCF200-150-310 119-237 2980 350 335 240
1000 SCF200-150-310 175-253 3550 350 290 240
1250 SCF200-125-300 116-190 2980 187 300 240
1250 SCF200-125-380 118-177 2200 261 385 325
1250 SCF200-150-310 112-230 2980 350 335 240
1250 SCF200-150-310 168-247 3550 350 290 240
1500 SCF200-150-310 158-236 3550 350 290 240
1500 SCF200-150-460 115-181 1800 275 460 380
2000 SCF200-150-460 118-175 1800 275 460 395
2000 SCF250-200-350 123-239 2980 362 360 260
2500 SCF250-200-350 114-227 2980 362 360 260
2500 SCF250-200-430 138 1800 275 425 n/a
2500 SCF250-200-430 125-190 2100 275 425 360
3000 SCF250-200-430 144-187 2100 275 425 390
3500 SCF300-250-490 119-189 1800 290 490 410
4000 SCF300-250-490 114-185 1800 290 490 410
4500 SCF300-250-490 153-181 1800 290 490 460
4500 SCF400-350-640 129-196 1480 315 655 540
5000 SCF400-350-640 127-194 1480 315 655 540
5500 SCF400-350-640 124-192 1480 315 655 540
6000 SCF400-350-640 120-190 1480 315 655 540
6500 SCF400-350-640 116-186 1480 315 655 540
7000 SCF400-350-640 113-182 1480 315 655 540
7500 SCF400-350-640 109-179 1480 315 655 540

  • FAQ

  • Q1.Do you have the UL-LISTED Fire Pump Sets?

    Yes, We have the UL/FM and NFPA standard Fire Pump Sets.

    Q2.Please quote the XXGPM@XXXPSI Pump without driver.

    Sorry, pump are not sold separately, pumps and drives are sold together.

    Q3.I need your motor drive End-suction/Split-casing fire pump, what information shold I sent to you ?

    Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together.

    Q4.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ?

    You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together.

    Q4.I need the UL Vertical Tubine Fire Pump Set ,please sent me the price.

    For the motor Diver Vertical Tubine Fire Pump Set: you shoul give us the Capacity, Heed, Voltage Frequncy and the tank deep.
    For the Diesel Engine Drive Vertical Tubine Fire Pump Set:you should give us the Capacity, Heed and the tank deep.
    If you need Jockey Pump or other accessories,please tell us together.

    Q5.May I ask what is the lead time of this fire pump and the jockey piump if ever we order them from you?

    Under normal cicumstance,75days ,we will notify the delivery date after receiving the deposit.

    Q6.Please advise if you can also send me the cost for the freight?

    Pls. confirm the model first,then we wil estimate estimate. The Fire Pump Sets are customized production, actual packaging size and estimated size will be different.
