1000GPM Diesel Engine UL FM Approved Fire Pumps With Fuel Tank

Place of Origin China
Brand Name CNP NM FIRE
Certification UL /FM
Model Number SCF150-125-310
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 60 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Engine NM&UL Capacity 2000GPM
Head 175PSI RPM 2100
Casing Ductile Cast Iron Impeller SS304
High Light

1000GPM UL FM Approved Fire Pumps


2100RPM UL FM Approved Fire Pumps


SS304 Impeller Split Case Fire Pump

Leave a Message
Product Description

1000GPM is about 227M3/H. UL FM Approved fire pump goups with the dieseil engine

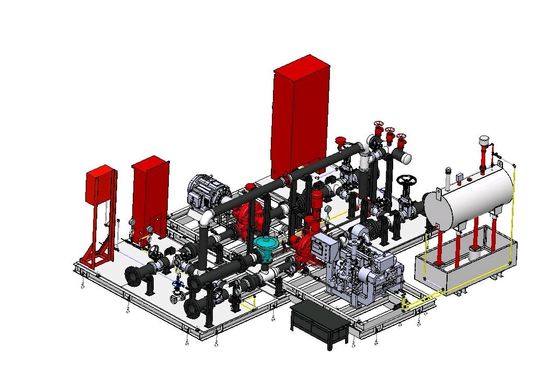

This Diesel Engine Group include:1.the pump(air relieve vlave , inlet & outlet gauges);2. Diesel Engine;3.Commonbase;4.Silencer;5.Flexible exhaust connector;6.Coupling;7.Cooling System;8.Control System;9Testing Fee;10.Main relief valve;11.Waste cone;12.Fuel tank.Accessories can be adjusted. Please contact me if you need.


Main Parameters:


Diesel Engine Pump Set
( Heat Exchanger)
Model SCF150-125-310
Casing Ductile Cast iron
Impeller SS304
Shaft AISI 4340
Shaft sleeve SS304
Seal Gland packing
Wear ring Bronze
Bearing SKF
Engine NM FIRE(UL) NM6-110D
Controller Tornatech/Eaton(UL/FM)
Main relief valve CLA-VAL(UL@FM)
Waste cone 4"-8"
Fuel tank NMTY-YX-800L-00-01



1000GPM Diesel Engine UL FM Approved Fire Pumps With Fuel Tank 0

1000GPM Diesel Engine UL FM Approved Fire Pumps With Fuel Tank 1



Large hotels, hospitals , schools,office buildings,supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises,offshore platform(Pump material:Discharge head, Column pipe, shaft, impeller, suction bell—SS2205, Seal—Gland packing ,Guide bearing—Thordon) etc.
Product types

Electric motor driven fire pump group
Diesel engine driven fire pump group with air cooling & water cooling
NFPA20 Package

1000GPM Diesel Engine UL FM Approved Fire Pumps With Fuel Tank 2


About Us




CNP NM Fire-fighting System Co.,Ltd
CNP NM Fire-fighting System Co.,Ltd is a leading manufacturer of fire pumps, diesel engines, controllers, diesel engine driven fire pump set, electric motor driven fire pump set, fire pump package system and containerized fire pump package system in accordance with domestic & international standards. We are a member of the National Fire Protection Association (NFPA) and the European Fire Sprinkler Network (EFSN). The technical team consists of a number of engineers and foreign experts who have more than 20 years of experience in research and development for global fire-fighting equipment. We can offer you a wide range of fire pumps and diesel engines which have gotten UL, FM(America), APSAD(France), SETSCO(Singapore) certificates that meet every fire protection needed.
NMFIRE is the first NFPA (National Fire Protection Association) member in China's pump industry and also the only Chinese company among the members of EFSN (European Fire Sprinkler Network). We are the first company in China to receive both UL and FM certifications and the only company in the world to manufacture UL/FM certified fire pumps and UL/FM diesel engines. Our company was a key contributor in the revision of China's fire pump industry standards. Our product technology and range in products are industry leading in both the domestic and global market place.
Our mission is to produce the highest standard products with the advanced technology to "Protect life, love and history" for the big world.
1000GPM Diesel Engine UL FM Approved Fire Pumps With Fuel Tank 3


In addition to the above models, there are many model UL/FM testing in process.
Looking forward to your enquiry.


NFPA20, UL, FM, EN12845,CCCF

Performance Ranges

UL : Q: 100-750GPM H:70-152PSI

FM: Q: 100-750GPM H:70-152PSI

CCCF: Q:15-45L/S H:0.6-0.9Mpa

NFPA20: Q: 100-3000GPM H:40-200PSI



Split casing Pump Model Chart
Rated Capacity Model
Rated Net Pressure Range, Approx. Speed, Maximum Working Pressure, Impeller Diameter, mm.
300 SCF125-100-300 123-195 2980 400 315 250
400 SCF125-100-300 120-189 2980 400 315 250
400 SCF125-100-300 173-274 3550 400 315 250
450 SCF125-100-300 119-187 2980 400 315 250
450 SCF125-100-300 172-272 3550 400 315 250
500 SCF125-100-300 117-184 2980 400 315 260
500 SCF125-100-300 170-269 3550 400 315 260
750 SCF125-100-300 104-163 2980 400 315 260
750 SCF125-100-300 157-247 3550 400 315 260
750 SCF125-80-350G 169-251 2980 261 330 280
750 SCF150-100-320 138-198 2980 202 300 255
1000 SCF150-100-320 130-191 2980 202 300 240
1000 SCF200-150-310 119-237 2980 350 335 240
1000 SCF200-150-310 175-253 3550 350 290 240
1250 SCF200-125-300 116-190 2980 187 300 240
1250 SCF200-125-380 118-177 2200 261 385 325
1250 SCF200-150-310 112-230 2980 350 335 240
1250 SCF200-150-310 168-247 3550 350 290 240
1500 SCF200-150-310 158-236 3550 350 290 240
1500 SCF200-150-460 115-181 1800 275 460 380
2000 SCF200-150-460 118-175 1800 275 460 395
2000 SCF250-200-350 123-239 2980 362 360 260
2500 SCF250-200-350 114-227 2980 362 360 260
2500 SCF250-200-430 138 1800 275 425 n/a
2500 SCF250-200-430 125-190 2100 275 425 360
3000 SCF250-200-430 144-187 2100 275 425 390
3500 SCF300-250-490 119-189 1800 290 490 410
4000 SCF300-250-490 114-185 1800 290 490 410
4500 SCF300-250-490 153-181 1800 290 490 460
4500 SCF400-350-640 129-196 1480 315 655 540
5000 SCF400-350-640 127-194 1480 315 655 540
5500 SCF400-350-640 124-192 1480 315 655 540
6000 SCF400-350-640 120-190 1480 315 655 540
6500 SCF400-350-640 116-186 1480 315 655 540
7000 SCF400-350-640 113-182 1480 315 655 540
7500 SCF400-350-640 109-179 1480 315 655 540

  • Five Advantages of CNP NM FIRE

①The late-mover advantage of products, we R&D better fire products than other Suppliers;

②Have the most complete and all series of fire pump models;

③Have listed diesel engines with self-owned brand--- NM FIRE;

④Understand the technology of fire- fighting products and fire- fighting system better than other competitors and have better services;

⑤Shorter delivery time.


  • FAQ

    Q1.Do you have the UL-LISTED Fire Pump Sets?
    Yes, We have the UL/FM and NFPA standard Fire Pump Sets.
    Q2.Please quote the XXGPM@XXXPSI Pump without driver.
    Sorry, pump are not sold separately, pumps and drives are sold together.
    Q3.I need your motor drive End-suction/Split-casing fire pump, what information shold I sent to you ?
    Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together.
    Q4.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ?
    You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together.
    Q4.I need the UL Vertical Tubine Fire Pump Set ,please sent me the price.
    For the motor Diver Vertical Tubine Fire Pump Set: you shoul give us the Capacity, Heed, Voltage Frequncy and the tank deep.
    For the Diesel Engine Drive Vertical Tubine Fire Pump Set:you should give us the Capacity, Heed and the tank deep.
    If you need Jockey Pump or other accessories,please tell us together.
    Q5.May I ask what is the lead time of this fire pump and the jockey piump if ever we order them from you?
    Under normal cicumstance,75days ,we will notify the delivery date after receiving the deposit.
    Q6.Please advise if you can also send me the cost for the freight?
    Pls. confirm the model first,then we wil estimate estimate. The Fire Pump Sets are customized production, actual packaging size and estimated size will be different.
