Diesel Engine Split Case Fire Pump With Electric Motor 1000 GPM

Place of Origin China
Brand Name NM Fire
Certification UL / FM
Model Number SCF150-125-250
Minimum Order Quantity 1set
Price Negotiation
Delivery Time 75DAYS
Product Details
Driven Mode Diesel Engine Engine Brand Demaas (Netherlands)
Pump Brand NM Fire Control Panel Eaton
Capacity 1000GPM Head 103~151PSI
Motor Techtop Jockey CNP
High Light

ul listed fire pumps


horizontal split case fire pump

Leave a Message
Product Description

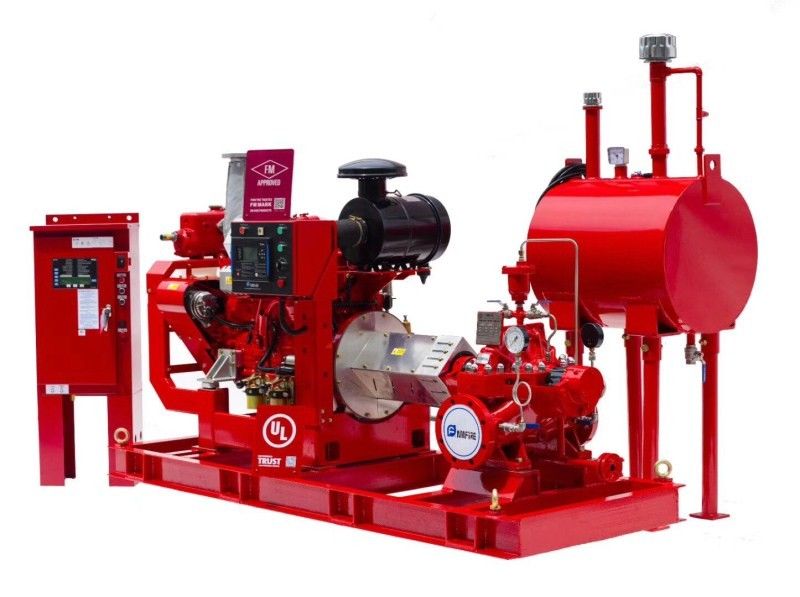

Diesel Engine Split Case Fire Pump With Electric Motor 1000 GPM



Rated Flow 1000 gpm / min
Rated Head 145PSI
Pump Model SCF150-125-250 (Split case pump) UL
Casing Ductile Cast Iron
Impeller SS304
Shaft AISI4340
Shaft Sleeve SS304
Seal Gland Packing
Wear Ring Bronze
Bearing SKF
Diesel Engine NM6-102B / 2980 rpm / 153HP
Control Panel FD120-L1 ( Eaton UL/FM )
Motor TDC404TS125U2B (Techtop UL)
Control Panel FD70 series (Eaton UL/FM)



Company Profile:


CNP NM Fire Fighting System Co., Ltd (Hereinafter referred to NM FIRE), the subsidiary of Nanfang Zhongjin

Environment Co., Ltd, is currently the first domestic pump enterprise which have got UL, FM (America) and CCCF

(China) certificates. NM FIRE is located in Economic and Technological Development Zone of Changsha, Hunan

province, mainly produce and sell Diesel engine & Motor driven fire pump groups, controllers and fire pumps which

are in accordance with domestic & international standards and have gotten related certifications. NM FIRE is the

member enterprise of NFPA and European Fire Sprinkler Network, the technical team consists of a number of

engineers and foreign experts who have more than 20 years of experience in research and development for global

fire-fighting equipments. There are several models have gotten UL, FM , APSAD, SETSCO , CCCF certificates.


Diesel Engine Split Case Fire Pump With Electric Motor 1000 GPM 0

The Split Case Fire Pump is designed to provide water to stand pipe, sprinkler, chemical mitigation and hydrant

systems for fire supression in industrial and commercial facilities.
Features and Benefits:
Available in capacities up to 4,000 GPM
Pressures up to 205 PSI
In compliance with NFPA #20, UL or FM
Performance and hydrostatic tests.
Dynamic balance impellers.
Space saving design.
Easy maintenance and upkeep.
Available in electric or diesel engine driven models.
