250 US GPM 136PSI Diesel Engine Driven Fire Pump With Eaton Controller

Place of Origin China
Brand Name CNP NM FIRE
Certification UL Listed
Model Number ESF50/26
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 60 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Driving Mode Diesel Engine Driven Controller Eaton (UL/FM)
RATED FLOW 56.8M3/H Color Red
High Light

diesel driven fire pump


diesel powered fire pump

Leave a Message
Product Description

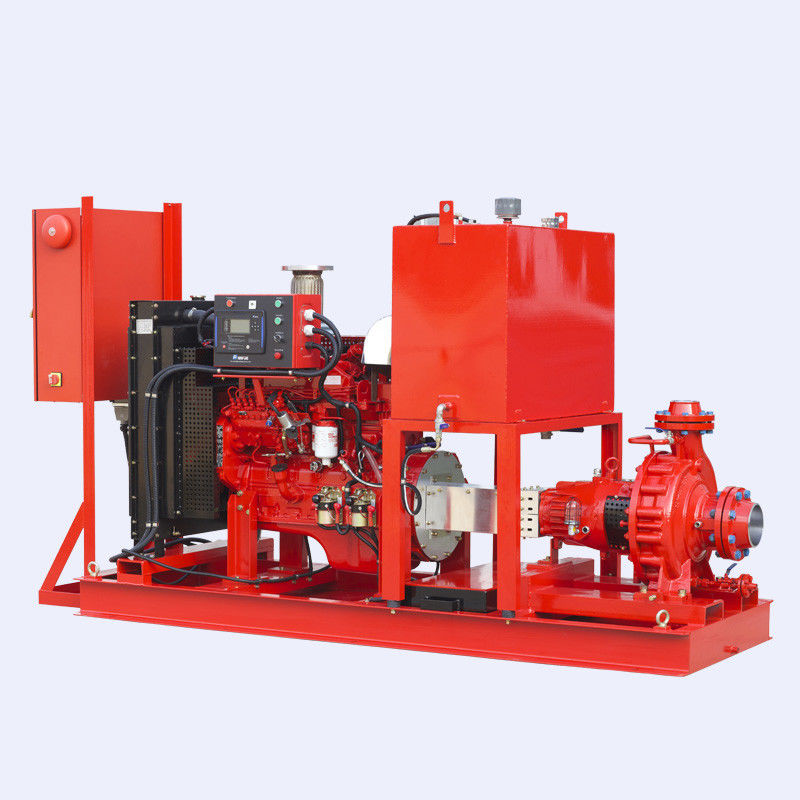

  • 250USGPM@136PSI diesel DRIVER END SUCTION Pump set
  • Product Details
Diesel Engine Pump Set( Heat Exchanger) UL LISTED
NM Fire End Suction Pump
Model ESF50/26 This Diesel Engine Group includes the pump(inlet & outlet gauges) Diesel Engine, Commonbase, Silencer, ,Batteries,Flexible exhaust connector, Control System, Coupling (non-listed), Cooling System.

Please contact me if you need Fuel tank, Main relief valve,Waste corn or other accessories.
Capacity 250GPM
Head 136PSI
RPM 2980rpm
Casing Ductile Cast iron
Impeller Bronze
Shaft SS420
Seal Gland packing
Wear ring Bronze
Bearing SKF
Engine: NM FIRE (UL)
Model: NM4-90
Controller : Tornatech (UL/FM)
Model: GPD-24-120/220


The above models are used for 250usGPM@136PSI diesel DRIVER END SUCTION Pump set

Please contact us if you have any other requirements.


250 US GPM 136PSI Diesel Engine Driven Fire Pump With Eaton Controller 0


250 US GPM 136PSI Diesel Engine Driven Fire Pump With Eaton Controller 1





  • Application:

Industrial fields: All petroleum, petrochemical, chemical, oil fields, pipelines bureaus, oil repositories, oil terminals, oil refineries, offshore platforms, etc.; National grain storages, thermal power plants, steel plants, shipyards, paper mills, etc.;
Commercial Field: five-star hotels, hospitals, schools, supermarkets, office buildings, large-scale commercial complex, highway tunnels, subway stations, railway stations, airports; Fire-fighting Engineering Companies;


Please note :the pump will be not sold individual,it must be match with engine or electric motor driver.


  • History of CNP and NM Fire:


250 US GPM 136PSI Diesel Engine Driven Fire Pump With Eaton Controller 2

CNP was founded more than 25 years,At the beginning, CNP focused on the research and development of stamping and welding stainless steel centrifugal pumps.

Now CNP is the second largest manufacturer on the stainless steel centrifugal pump in the world.

CNP Headquarter :300,000 m2

Over 30 Subsidiaries

More than 5000 staffs





The subsidiary corporations is as follows:

Environmental protection


CNP and NM Fire set up a cooperative enterprise in October,2013. introducing some experienced talents with international first-class technical level. The designation and production of the products are strictly consistent with requirements of international certificates,for changing the backward conditions in domestic market.


NM Fire is the first member of NFPA from Chinese pump manufacturers. In March of 2017, it became the first enterprise of China to have both UL & FM two international certification of fire pumps. In September the same year, NM Fire again became the China’s first enterprise to have UL certificate for diesel fire engine. Currently, only 3 or 4 companies in the world have obtained fire engine certification. NM Fire is also the first company in the world to have both UL Listed fire pumps and fire engines. This series of achievements will completely break the long-term monopoly situation of fire products by European and American brand, which speed up the pace of Chinese enterprises to go overseas.

250 US GPM 136PSI Diesel Engine Driven Fire Pump With Eaton Controller 3


As the first Chinese member of NFPA, NM Fire has a strong technical team with more than 20 years’ global fire equipment R & D experience, including a number of foreign engineers and experts. NM Fire became the first company in the world to have both UL Listed fire pumps and fire engines, which consisted of the NM Fire Team’s 5 years’ hard work and huge investment by enterprise.
This series of historical breakthrough results play a very important role in enhancing the technical level of China’s fire industry and effectively protect national life and property. This is also the primary goal we pursue.

  • End suction Pump Model Chart


    Rated Capacity PUMP MODEL(UL) Rated Net Pressure Range, Approx. Speed, Impeller Diameter, mm.
    GPM (US) PSI RPM Max Min
    50 ESF40/20 76-111 2980 225 190
    50 ESF40/20 108-157 3550 225 190
    100 ESF40/20 72-109 2980 225 190
    100 ESF40/26 100-138 2980 264 225
    200 ESF50/20 72-99 2980 225 195
    200 ESF50/20 102-142 3550 225 195
    200 ESF50/26 105-140 2980 264 230
    250 ESF50/20 69-99 2980 225 195
    250 ESF50/20 101-141 3550 225 195
    250 ESF50/26 99-136 2980 264 230
    250 ESF65/20 113-152 3550 225 195
    250 ESF65/20 86-107 2980 225 210
    250 ESF65/26 119-147 2980 264 245
    300 ESF65/20 112-152 3550 225 195
    300 ESF65/20 86-107 2980 225 210
    300 ESF65/26 119-147 2980 264 245
    400 ESF65/20 108-150 3550 225 195
    400 ESF65/20 83-104 2980 225 210
    400 ESF65/26 119-141 2980 264 245
    450 ESF65/20 105-148 3550 225 195
    450 ESF65/20 80-102 2980 225 210
    450 ESF65/26 114-138 2980 264 245
    500 ESF65/20 101-145 3550 225 195
    500 ESF65/20 77-99 2980 225 210
    500 ESF65/26 111-135 2980 264 245
    500 ESF80/20 90-100 2980 225 210
    500 ESF80/20 129-142 3550 225 210
    500 ESF80/26 116-138 2980 264 245
    750 ESF80/20 87-98 2980 225 210
    750 ESF80/20 127-142 3550 225 210
  • Five Advantages of CNP NM FIRE

    ①The late-mover advantage of products, we R&D better fire products than other Suppliers;
    ②Have the most complete and all series of fire pump models;
    ③Have listed diesel engines with self-owned brand--- NM FIRE;
    ④Understand the technology of fire- fighting products and fire- fighting system better than other competitors and have better services;
    ⑤Shorter delivery time.










  • FAQ



Q1.Do you have the UL-LISTED Fire Pump Sets?

Yes, We have the UL/FM and NFPA standard Fire Pump Sets.

Q2.I need your motor drive End-suction/Split-casing fire pump, what information shold I sent to you ?

Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together.

Q3.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ?

You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together.

Q4.I need the UL/FM Vertical Tubine Fire Pump Set ,please sent me the price.

For the motor Diver Vertical Tubine Fire Pump Set: you shoul give us the Capacity, Heed, Voltage Frequncy and the tank deep.

For the Diesel Engine Drive Vertical Tubine Fire Pump Set:you should give us the Capacity, Heed and the tank deep.

If you need Jockey Pump or other accessories,please tell us together.
  • Service:

1. Reply within 24 hours.
2. High-quality products and the most reasonable price
3. Data and chemical technology support.
