Product Details
Place of Origin: China
Brand Name: CNP NM FIRE
Certification: UL Listed
Model Number: ESF80/26
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Packing
Delivery Time: 60 Days
Payment Terms: L/C, T/T
CAPACITY: |
750GPM |
HEAD: |
105-131psi |
Driving Mode: |
Diesel Engine Driven |
Controller: |
Tonatech |
Pump Model: |
ESF80/26 |
Engine: |
M4-108B |
CAPACITY: |
750GPM |
HEAD: |
105-131psi |
Driving Mode: |
Diesel Engine Driven |
Controller: |
Tonatech |
Pump Model: |
ESF80/26 |
Engine: |
M4-108B |

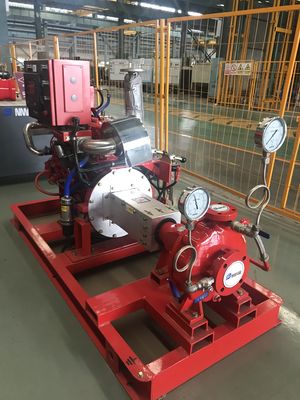

| Diesel Engine Pump Set( Heat Exchanger) UL LISTED | ||
| NM Fire End Suction Pump | ||
| Model | ESF80/26 | This Diesel Engine Group includes the pump(inlet & outlet gauges) Diesel Engine, Commonbase, Silencer, ,Batteries,Flexible exhaust connector, Control System, Coupling (non-listed), Cooling System. Please contact me if you need Fuel tank, Main relief valve,Waste corn or other accessories. |
| Capacity | 750GPM | |
| Head | 115PSI | |
| RPM | 2980rpm | |
| Material: | ||
| Casing | Ductile Cast iron | |
| Impeller | Bronze | |
| Shaft | SS420 | |
| Seal | Gland packing | |
| Wear ring | Bronze | |
| Bearing | SKF | |
| Engine: NM FIRE (UL) | ||
| Model: | NM4-108B | |
| Controller : Tornatech (UL/FM) | ||
| Model: | GPD-24-120/220 | |
The above models are used for 750usGPM@81M END SUCTION Pump set.
Please contact us if you have any other requirements.
Thanks
①The late-mover advantage of products, we R&D better fire products than other Suppliers; ②Have the most complete and all series of fire pump models; ③Have listed diesel engines with self-owned brand--- NM FIRE； ④Understand the technology of fire- fighting products and fire- fighting system better than other competitors and have better services； ⑤Shorter delivery time.
End suction Pump Model Chart
| Rated Capacity | PUMP MODEL(UL) | Rated Net Pressure Range, | Approx. Speed, | Impeller Diameter, mm. | |
| GPM (US) | PSI | RPM | Max | Min | |
| 50 | ESF40/20 | 76-111 | 2980 | 225 | 190 |
| 50 | ESF40/20 | 108-157 | 3550 | 225 | 190 |
| 100 | ESF40/20 | 72-109 | 2980 | 225 | 190 |
| 100 | ESF40/26 | 100-138 | 2980 | 264 | 225 |
| 200 | ESF50/20 | 72-99 | 2980 | 225 | 195 |
| 200 | ESF50/20 | 102-142 | 3550 | 225 | 195 |
| 200 | ESF50/26 | 105-140 | 2980 | 264 | 230 |
| 250 | ESF50/20 | 69-99 | 2980 | 225 | 195 |
| 250 | ESF50/20 | 101-141 | 3550 | 225 | 195 |
| 250 | ESF50/26 | 99-136 | 2980 | 264 | 230 |
| 250 | ESF65/20 | 113-152 | 3550 | 225 | 195 |
| 250 | ESF65/20 | 86-107 | 2980 | 225 | 210 |
| 250 | ESF65/26 | 119-147 | 2980 | 264 | 245 |
| 300 | ESF65/20 | 112-152 | 3550 | 225 | 195 |
| 300 | ESF65/20 | 86-107 | 2980 | 225 | 210 |
| 300 | ESF65/26 | 119-147 | 2980 | 264 | 245 |
| 400 | ESF65/20 | 108-150 | 3550 | 225 | 195 |
| 400 | ESF65/20 | 83-104 | 2980 | 225 | 210 |
| 400 | ESF65/26 | 119-141 | 2980 | 264 | 245 |
| 450 | ESF65/20 | 105-148 | 3550 | 225 | 195 |
| 450 | ESF65/20 | 80-102 | 2980 | 225 | 210 |
| 450 | ESF65/26 | 114-138 | 2980 | 264 | 245 |
| 500 | ESF65/20 | 101-145 | 3550 | 225 | 195 |
| 500 | ESF65/20 | 77-99 | 2980 | 225 | 210 |
| 500 | ESF65/26 | 111-135 | 2980 | 264 | 245 |
| 500 | ESF80/20 | 90-100 | 2980 | 225 | 210 |
| 500 | ESF80/20 | 129-142 | 3550 | 225 | 210 |
| 500 | ESF80/26 | 116-138 | 2980 | 264 | 245 |
| 750 | ESF80/20 | 87-98 | 2980 | 225 | 210 |
| 750 | ESF80/20 | 127-142 | 3550 | 225 | 210 |
Q1.Do you have the UL-LISTED Fire Pump Sets?
Yes, We have the UL/FM and NFPA standard Fire Pump Sets.
Q2.Please quote the XXGPM@XXXPSI Pump without driver.
Sorry, pump are not sold separately, pumps and drives are sold together.
Q3.I need your motor drive End-suction/Split-casing fire pump, what information shold I sent to you ?
Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together.
Q4.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ?
You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together.
Q5.May I ask what is the lead time of this fire pump and the jockey piump if ever we order them from you?
Under normal cicumstance,75days ,we will notify the delivery date after receiving the deposit.
Q6.Please advise if you can also send me the cost for the freight?
Pls. confirm the model first,then we wil estimate estimate. The Fire Pump Sets are customized production, actual packaging size and estimated size will be different.
