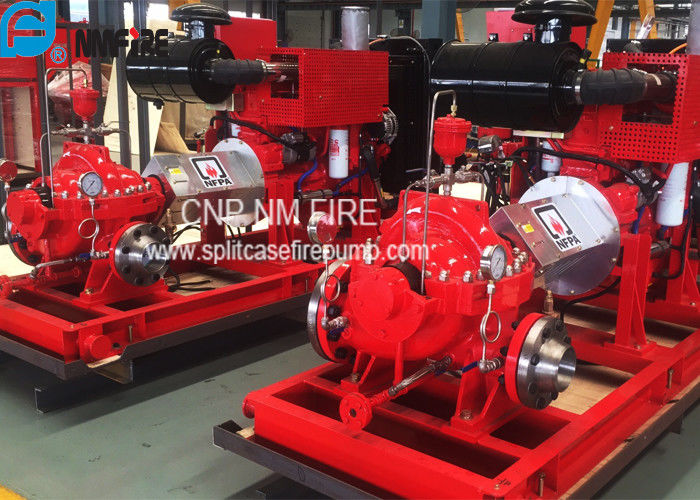

Diesel Engine Driven Centrifugal Fire Pump 2000GPM@150PSI High Performance

Place of Origin China
Brand Name CNP NM FIRE
Certification NFPA20/UL/FM/EN12845/CCCF
Model Number SCF200-150-460 (8x6")
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 30-45 Working Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification UL/FM/NFPA20 Flow 2000GPM
RPM 1800 (60Hz) Engine DE MAAS & NM Fire
Control Panel Tornatech (UL/FM) Head 150PSI
High Light

diesel fire pump

,

fire fighting water pump

Leave a Message
Product Description

UL/FM/NFPA20 Certification Centrifugal Fire Pump Capacity With Diesel Engine Driven 1200GPM @ 150PSI

The Split Case Fire Pump is designed to provide water to stand pipe, sprinkler, chemical mitigation and hydrant systems for fire supression in industrial and commercial facilities.
Features and Benefits:

  • Available in capacities up to 4,000 GPM
  • Pressures up to 205 PSI
  • In compliance with NFPA #20, UL or FM
  • Performance and hydrostatic tests.
  • Dynamic balance impellers.
  • Space saving design.
  • Easy maintenance and upkeep.
  • Available in electric or diesel engine driven models.

Fire fighting engine: It is a kind of engine in accordance with fire fighting standard. Compared with normal engine, it is more stable and reliable. Its design concept is to protect the security of human and their property, but normal engine considers more about its performance.


Application:

Industrial fields: All petroleum, petrochemical, chemical, oil fields, pipelines bureaus, oil repositories, oil terminals, oil refineries, offshore platforms, etc.; National grain storages, thermal power plants, steel plants, shipyards, paper mills, etc.;
Commercial Field: five-star hotels, hospitals, schools, supermarkets, office buildings, large-scale commercial complex, highway tunnels, subway stations, railway stations, airports; Fire-fighting Engineering Companies;



Parameters:


HEAD

PUMP MODEL

SPEED

MAX
SHAFT
POWER

MOTOR DRIVERDIESEL ENGINE DRIVER
PSIFEETMETERRPMHPKW

MODEL
(TECHTOP&UL)

HPKW

MODEL


(NM&UL)

HPKW

MODEL(DE


MAAS&FM)

HPKW
150347106SCF200-150-460
(8x6")
1800
(60Hz)
322239.9TXC 586/7T350U4B
(NEMA/TEFC)
350280NM6-128472352DF12TiH-F338252


Each pump shall have a circulation relief valve listed for the fire pump service installed and set below the shutoff pressure at minimum expected suction pressure. Exception: This rule shall not apply to engine-driven pumps for which engine cooling water is taken from the pump discharge.




Performance Ranges:



UL:


 Q: 500-4000GPM H:100-190PSI


FM:


 Q: 500-4000GPM H:100-190PSI


CCCF:


 Q:20-500L/S H:0.42-2.0Mpa


NFPA20:


 Q: 300-8000GPM H:60-300PSI




Product Type:

Diesel engine driven fire pump sets with air cooling & water cooling

NFPA20 Package


Advantage:


  1. NM Fire is the firt member of NFPA from Chinese pump manufacturers. The production of fire pump groups is strictly in accordance with NFPA20, production process and performance testing also meet the requirement of ISO9001, some kinds of products have got APSAD (France), UL,FM and CCCF certificates.
  2. We are the only enterprise in China that obtained not only UL and FM certificates, but CCCF as well, also the firt company in the world who was authorized by UL CCIC as witness testing center for both fire pump and fire fighting engines
