Product Details
Place of Origin: China
Brand Name: CNP NM FIRE
Certification: NFPA20/UL/FM/EN12845/CCCF
Model Number: SCF150-100-320 (6x4")
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Packing
Delivery Time: 30-45 Working Days
Payment Terms: L/C, T/T
Certification:: |
UL/FM/NFPA20 |
Flow:: |
1000GPM |
RPM: |
2980 (50Hz) |
Engine:: |
DE MAAS & NM Fire |
Control Panel:: |
Tornatech (UL/FM) |
Head: |
145PSI |
Certification:: |
UL/FM/NFPA20 |
Flow:: |
1000GPM |
RPM: |
2980 (50Hz) |
Engine:: |
DE MAAS & NM Fire |
Control Panel:: |
Tornatech (UL/FM) |
Head: |
145PSI |

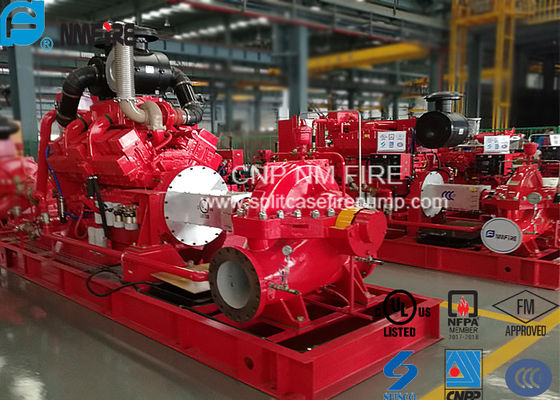

1000GPM @ 145PSI UL/FM/NFPA20 Certification Centrifugal Fire Pump Capacity For Firefighting
Applications
The fire pump starts when the pressure in the fire sprinkler system drops below a threshold. The sprinkler system pressure drops significantly when one or more fire sprinklers are exposed to heat above their design temperature, and opens, releasing water. Alternately, other fire hoses reels or other firefighting connections are opened, causing a pressure drop in the fire fighting main.
Fire pumps are needed when the local municipal water system cannot provide sufficient pressure to meet the hydraulic design requirements of the fire sprinkler system. This usually occurs if the building is very tall, such as in high-rise buildings, or in systems that require a relatively high terminal pressure at the fire sprinkler in order to provide a large volume of water, such as in storage warehouses. Fire pumps are also needed if fire protection water supply is provided from a ground level water storage tank.
Types of pumps used for fire service include: horizontal split case, vertical split case, vertical inline, vertical turbine, and end suction.
Parameters:
| HEAD | PUMP MODEL | SPEED | MAX SHAFT POWER | |||
| PSI | FEET | METER | RPM | HP | KW | |
| 145 | 335 | 102 | SCF150-100-320 (6x4") |
2980 (50Hz) |
155 | 115.5 |
Operation Limits
Capacity up to 4,000 gpm Head up to 205psi
Applications: Commercial, municipal and residential high-rise buildings, Large industrial premises and
storage warehouses, Offshore and remote facilities, Airports, Power stations.
Performance Ranges:
|
UL:
|
Q: 500-4000GPM | H:100-190PSI |
|
FM:
|
Q: 500-4000GPM | H:100-190PSI |
|
CCCF:
|
Q:20-500L/S | H:0.42-2.0Mpa |
|
NFPA20:
|
Q: 300-8000GPM | H:60-300PSI |
Product Type:
Diesel engine driven fire pump sets with air cooling & water cooling
NFPA20 Package
Advantage:
First-Class international technical standards.
CNP NM FIRE is the first member of NFPA from China pump's manufacturers.and won the UL,FM international fire certification for fire pump products.
Service:
| 1. To supply high-quality products with reasonable prices in food additive industry. |
| 2. To follow orders and arrange shipping in time, providing complete documents |
| for Customs clearance according to different export policies in different countries. |
