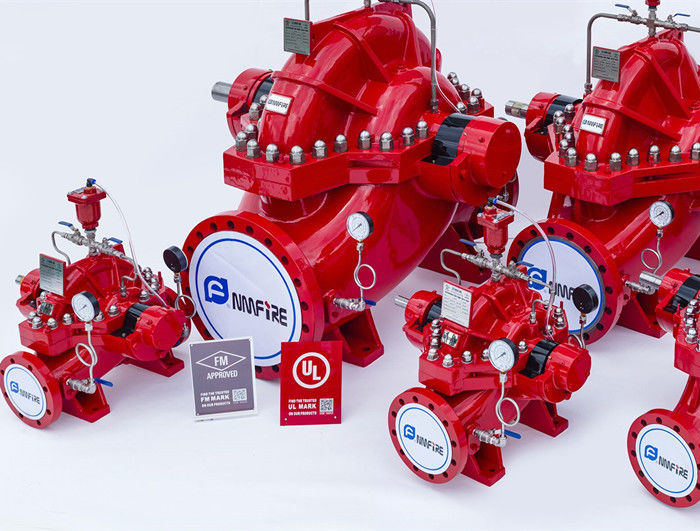

FM Approved Ductile Cast Iron Split Case Fire Pump 1500 GPM / 170 PSI

Place of Origin China
Brand Name CNP NM FIRE
Certification UL Listed
Model Number SCF200-125-380 (8x5")
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Package
Delivery Time 35-40 Working Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Red Casing Ductile Cast Iron
Shaft AISI 4340 Wear Ring Bronze
Seal Gland Packing Brand CNP FIRE
High Light

ul listed fire pumps

,

horizontal split case fire pump

Leave a Message
Product Description
UL Listed Ductile Cast Iron Made Horizontal Split Case Fire Pump On 1500GPM @ 170PSI

Horizontal split case pumps are the most common type of fire pump. These pumps are specifically designed and tested for fire service applications where reliability of performance is of vital importance. Split case pumps are characterized by: • Easy access to all working parts; • Rugged construction; • Liberal water passages; and • Efficient operation. Split case fire pumps are specified when the source of water is located above the surface of the ground and provides a positive suction pressure to the pump at any performance point. Single-stage or multistage pumps are available dependent upon discharge pressure requirements. Aurora split case fire pumps are built per the rigid standards of NFPA 20 and are listed by Underwriters Laboratories (UL) and approved by Factory Mutual (FM). Available in a broad range of operating pressures and flows from a minimum of 500 GPM, NM split case pumps can be driven by either an electric motor or diesel engine. NM’s UL-Listed, FM-Approved fire pump packages also include the system controller, with a full range of options and accessories available to complete the NFPA-compliant fire pump package.




Parameters:

HEAD PUMP MODEL SPEED MAX SHAFT POWER
PSI FEET METER RPM HP KW
170 392 120 SCF200-150-460
(8x6")
1800
(60Hz)
353 263.0





Application:



Industrial fields: All petroleum, petrochemical, chemical, oil fields, pipelines bureaus, oil repositories, oil terminals, oil refineries, offshore platforms, etc.; National grain storages, thermal power plants, steel plants, shipyards, paper mills, etc.;

Commercial Field: five-star hotels, hospitals, schools, supermarkets, office buildings, large-scale commercial complex, highway tunnels, subway stations, railway stations, airports; Fire-fighting Engineering Companies;





How It Works:

The most common split case pump is a single-stage, between bearing, non-self-priming centrifugal volute pump. The design of the pump allows for easy removal of the pump’s top casing to enable easy access to the pump’s components without interfering with the motor or the piping system.

The independent bearing casing allows for easy maintenance without the need for removing the pump’s top casing. The pump’s double volute design minimizes the radial load on the shaft, increasing component life and reducing vibrations to provide a quiet operation.




KEY FEATURES

  • Complete compact unit
  • Horizontal
  • Tailored to the customer's required standards and specifications
  • Configuration for NFPA20 / FM / UL up to 4000 US gpm
  • Good suction characteristics, also with higher speeds
  • Practically no limitations on flow
  • Less wear and tear influences
  • Easy maintenance without interfering on piping / driver
  • Select Models Available in alternate materials with FM approval





Performance Ranges:


UL:



Q: 500-4000GPM H:100-190PSI



FM:



Q: 500-4000GPM H:100-190PSI



CCCF:



Q:20-500L/S H:0.42-2.0Mpa



NFPA20:



Q: 300-8000GPM H:60-300PSI




Advantage:



  • We are the first member of NFPA among Chinese pump manufacturers. The production of our fire pump groups is strictly in accordance with NFPA20.
  • We are the first manufacturer in the world who have both UL/FM certification for fire pump and the fire-fighting diesel engine, also the only UL Witness laboratory in Asia for fire-fighting pump and fire-fighting diesel engine.
  • We have applied dozens of patents.
  • We have young team, top experts.





Service:



1. Reply within 24 hours.
2. High-quality products and the most reasonable price
3. Data and chemical technology support.
4. Professional team service
5. Customiszed production for different package
6. No delay on shipment
